SMA to 2.4mm Adapter, DC-18 GHz

Introduction

The SMA to 2.4mm adapter is a high-performance RF interconnect solution designed for precision signal transmission in demanding applications. Featuring a 50-ohm contact impedance, this adapter ensures minimal signal loss and superior electrical performance. The straight installation design provides easy integration into test setups, while the stainless steel housing with passivated plating offers exceptional durability and corrosion resistance. With a low VSWR of 1.15:1, it guarantees reliable signal integrity across a broad frequency range of DC to 18 GHz.

Engineered for extreme environments, this adapter operates seamlessly in temperatures ranging from -50°C to 85°C, making it ideal for aerospace, defense, and high-frequency testing. The SMA connector (male or female, depending on model) and 2.4mm connector ensure compatibility with a wide range of RF equipment. Its robust construction and high-frequency capabilities make it a must-have for engineers and technicians requiring precision connectivity.

Key features:

  • 50-ohm impedance for optimal signal transfer;
  • DC-18 GHz frequency range for wideband applications;
  • Low VSWR (1.15:1) ensuring minimal signal reflection;
  • Stainless steel housing with passivated plating for durability;
  •  Straight orientation for easy installation;
  • Operating temperature: -50°C to 85°C for extreme conditions;
  • Reliable SMA to 2.4mm conversion for versatile connectivity.

Main Specifications:

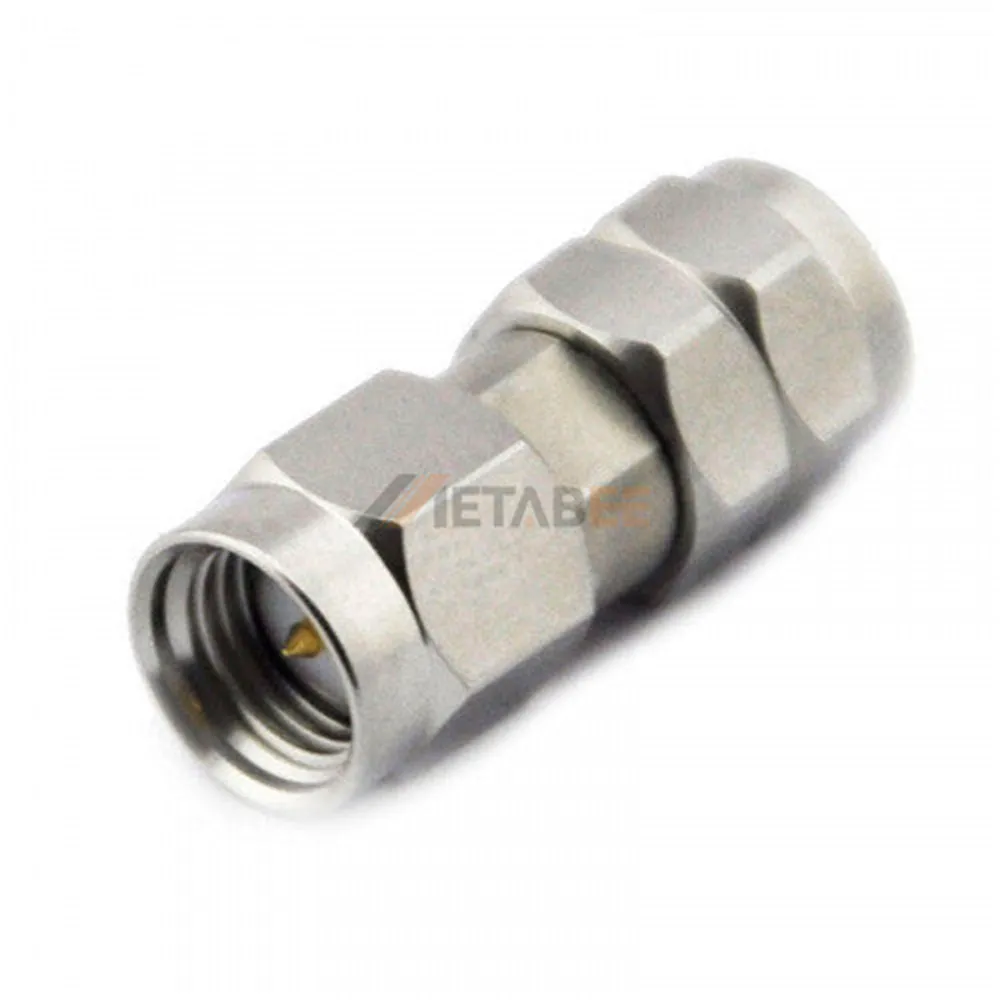

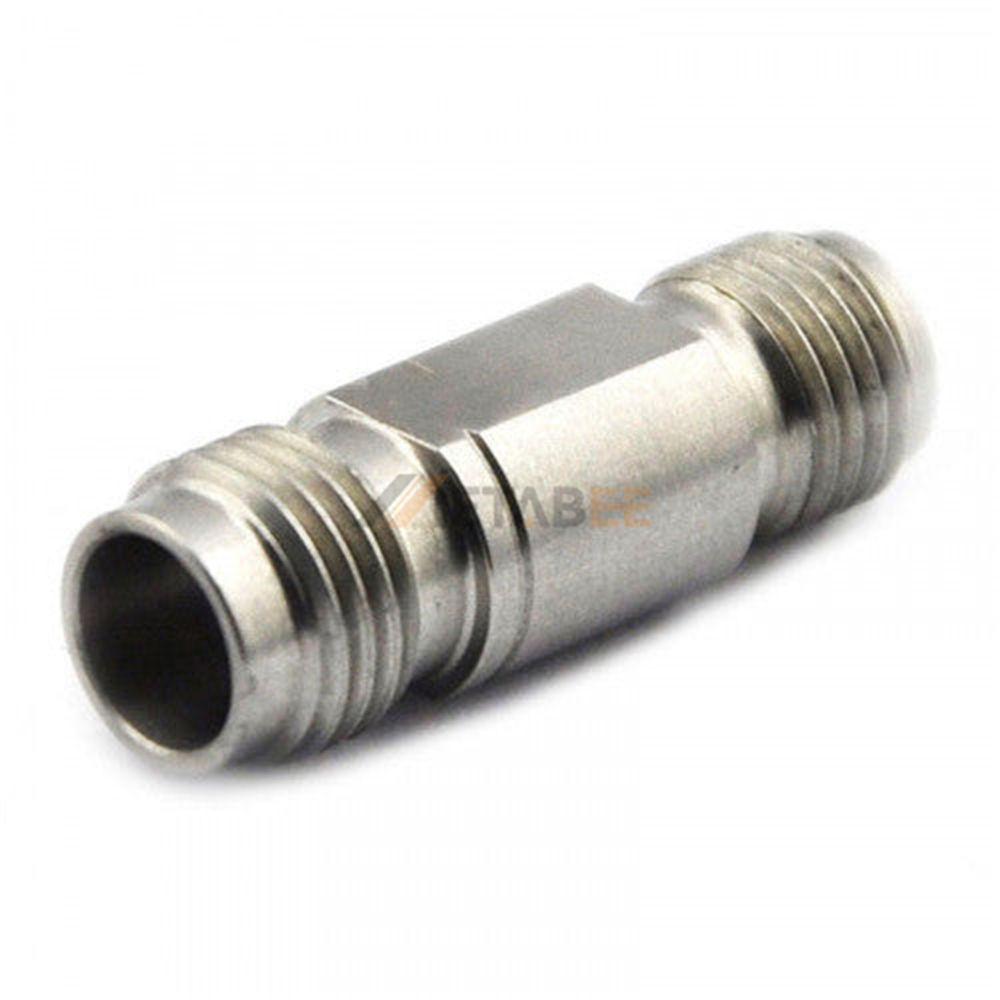

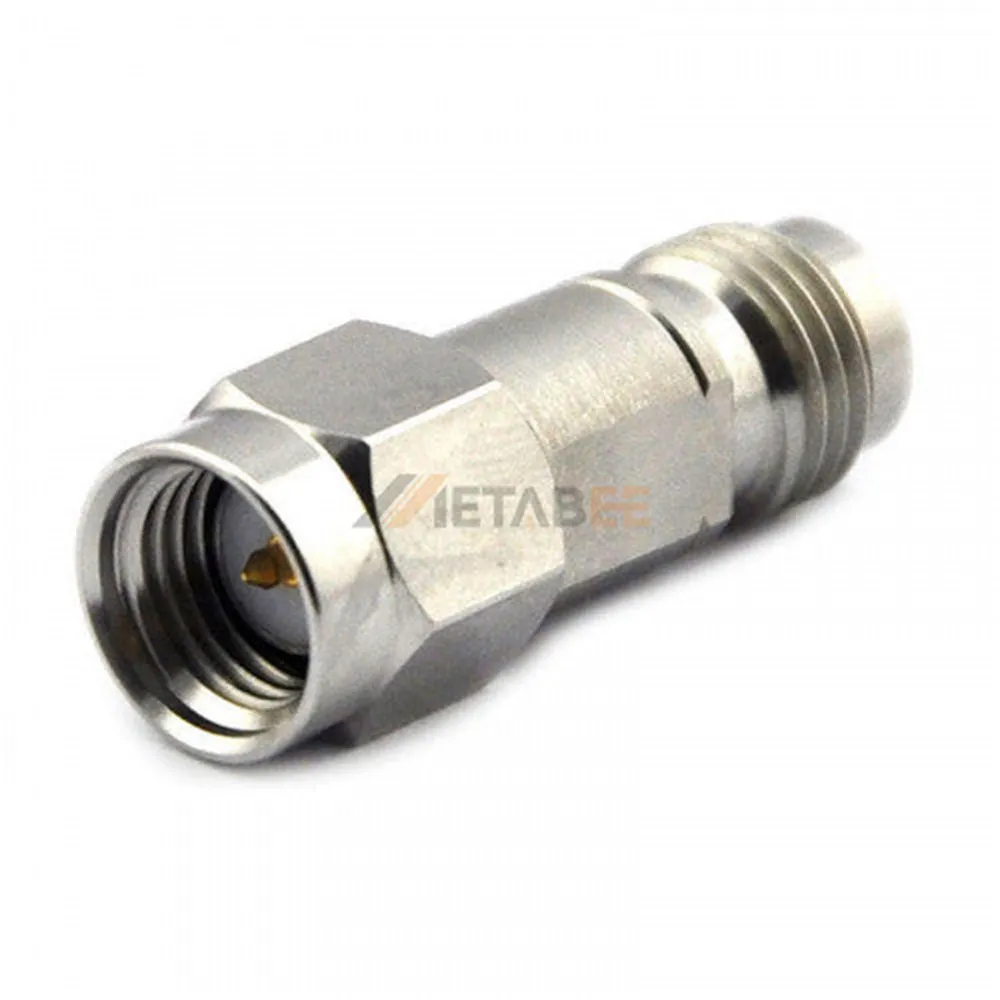

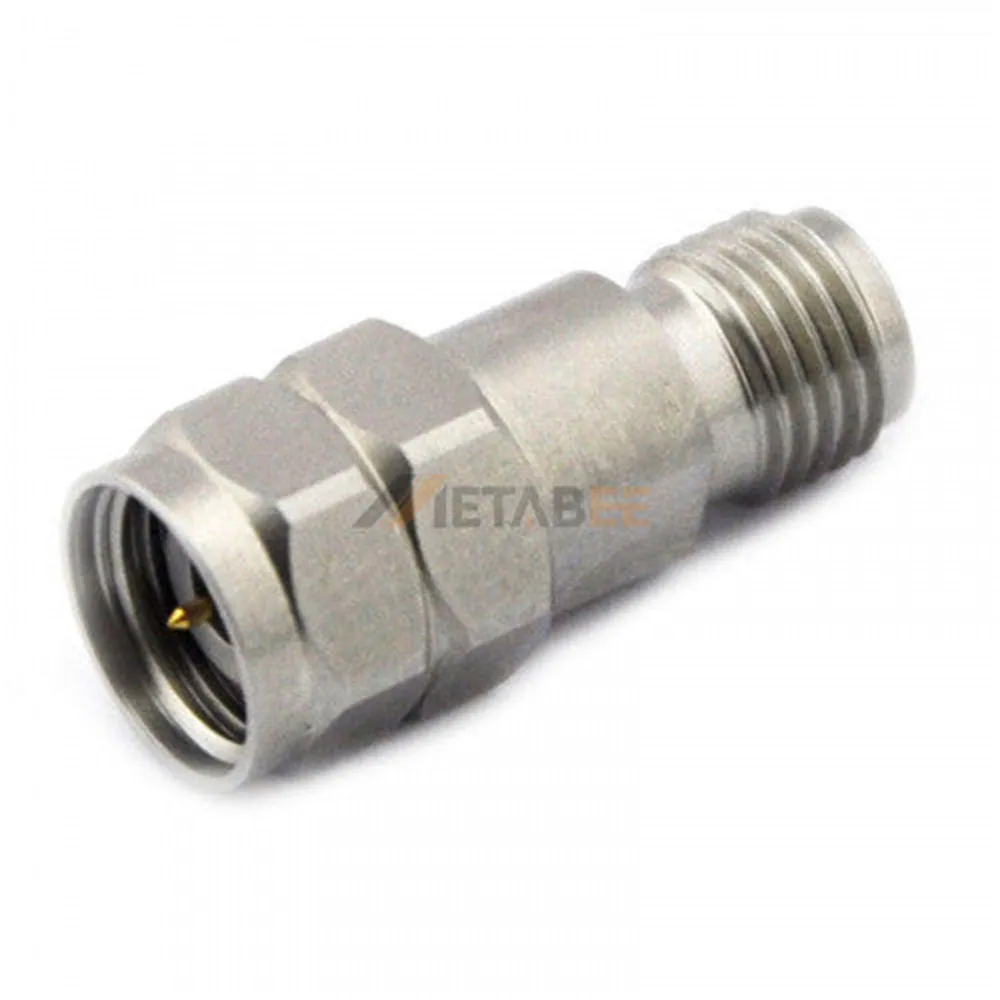

Product No:  YC-SMA/2.4-JJS, YC-SMA/2.4-JKS, YC-SMA/2.4-KJS, YC-SMA/2.4-KKS
Product Series: 2.4mm Adapters
Adapter Type: SMA to 2.4mm
Brand: Metabee
Orientation: Straight
Connector 1 SMA Connector
Connector 1 – Body Material: Stainless Steel
Connector 1 – Body Plating: Passivated
Connector 2: 2.4mm Connector
Connector 2 – Body Material: Stainless Steel
Connector 2 – Body Material: Passivated
Mount Method: Not Applicable
Impedance: 50 Ohm
VSWR:  1.15:1
Frequency Range: DC-18 GHz
Operating Temerature:  -50 ºC to +85 ºC
Other Feature: None


Applications of this SMA to 2.4mm Adapter:

2.4 mm adapters are commonly used in RF and microwave applications, particularly where coaxial connectors are required.

Here are some applications:

  • Radar Systems;
  • Test and Measurement Equipment;
  • Satellite Communications;
  • Microwave Communications;
  • Aerospace and Defense.

We can customize this RF Adapter according to your special requirements. Get a free quotation now!

RF Adapters
Metabee is a professional electronic component manufacturer from China. We can provide all kinds of RF Adapters.
Product Series

2.4mm Adapter

Product No.

YC-SMA/2.4-JJS, YC-SMA/2.4-JKS, YC-SMA/2.4-KJS, YC-SMA/2.4-KKS

Adapter Type

SMA to 2.4mm

Product Name

SMA to 2.4mm Adapter, DC-18 GHz

Brand

Metabee

Orientation

Straight

Connector 1

SMA Connector

Connector 1 - Body Material

Stainless Steel

Connector 1 - Body Plating

Passivation

Connector 2

2.4mm Connector

Connector 2 - Body Material

Stainless Steel

Connector 2 - Body Plating

Passivation

Mount Method

Not Applicable

Impendence

50 Ohm

Frequency Range

DC-18 Ghz

VSWR

≤ 1.15:1

Operating Temerature

-50 ºC to +85 ºC

Other Features

None
