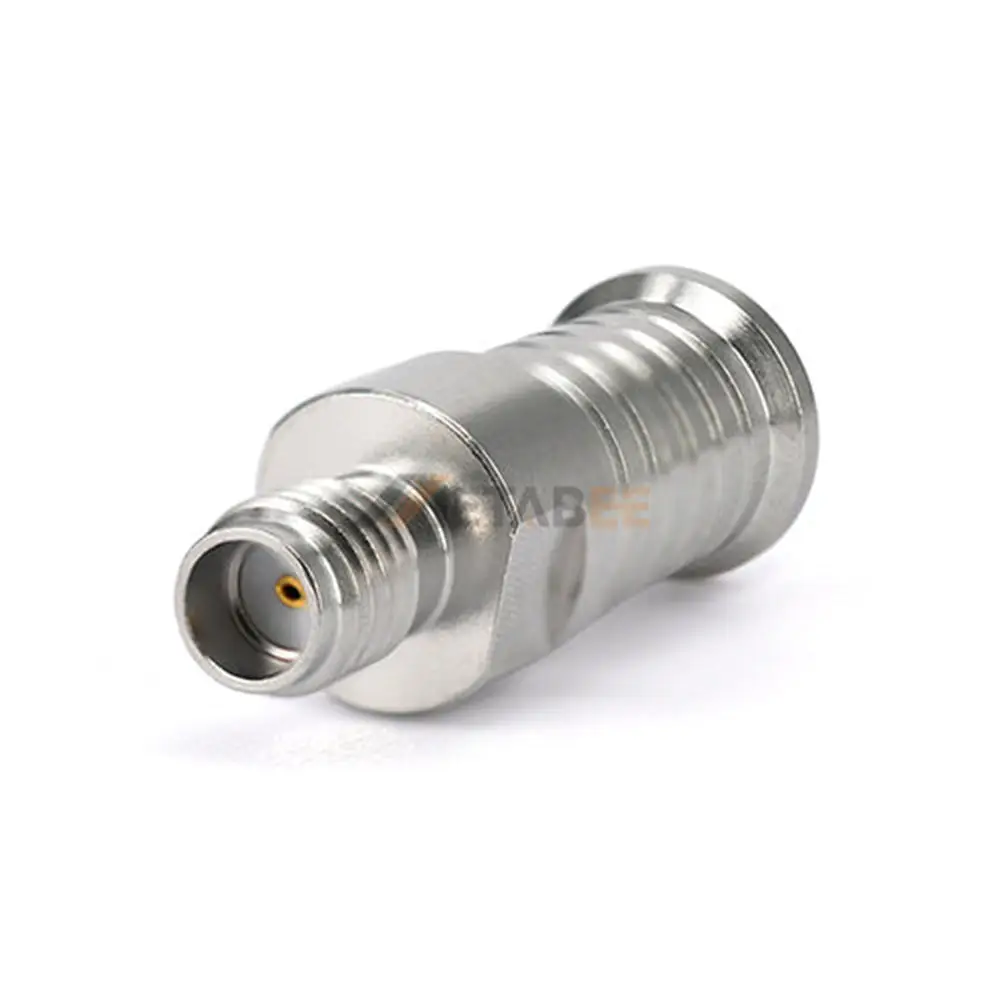

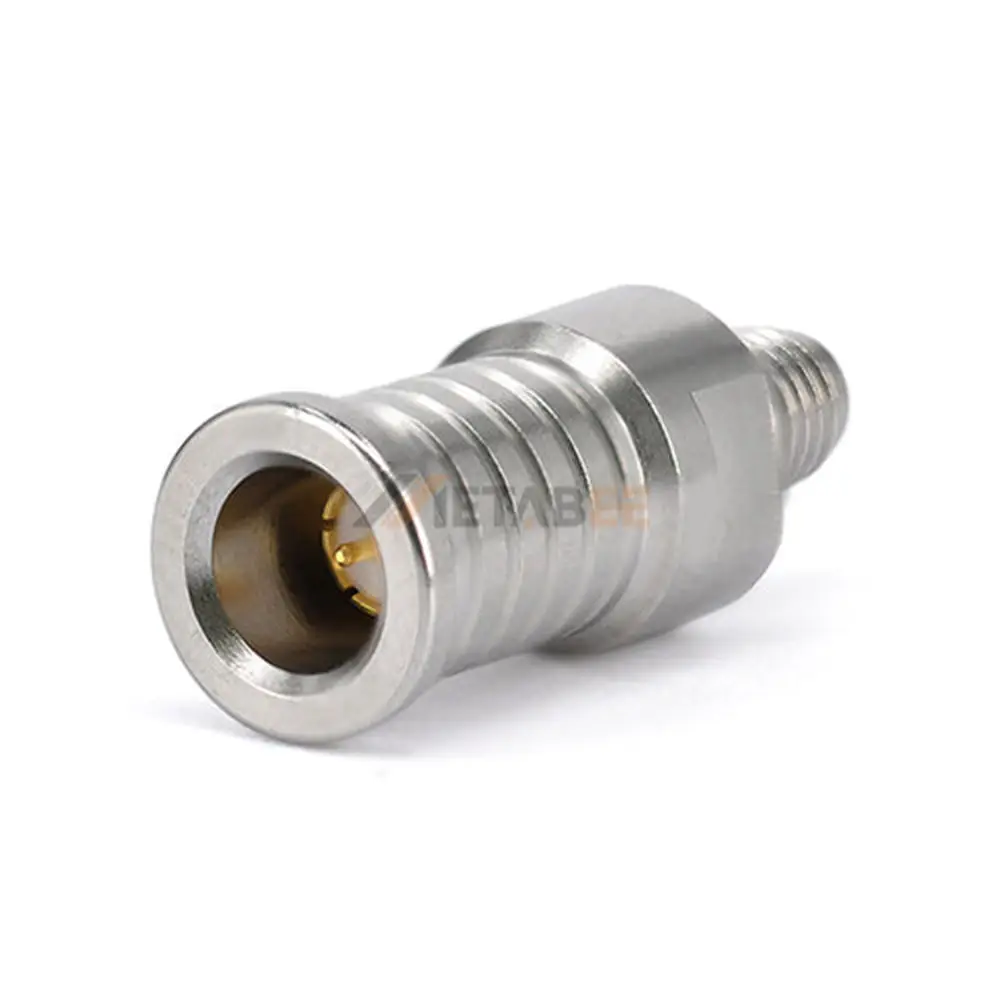

QSSMA Male to SSMA Female Adapter, DC-18 GHz
Introduction
This high-performance QSSMA to SSMA adapter provides seamless connectivity and reliable signal transfer for your demanding RF applications. Engineered for precision, this straight adapter facilitates efficient transitions between QSSMA and SSMA interfaces, ensuring optimal performance across a broad frequency range. Its robust construction with passivated stainless steel for both connector bodies guarantees exceptional durability and corrosion resistance, making it ideal for harsh environments and long-term use in critical systems.
Designed for electrical compatibility, the adapter features a 50 Ohm impedance, minimizing signal reflections and maximizing power transfer. With an impressive DC-18 GHz frequency range and a low VSWR of 1.3:1, it delivers excellent signal integrity and minimal loss, crucial for high-frequency applications. The adapter also boasts a wide operating temperature range of -55°C to 165°C, ensuring stable performance in extreme conditions.
Features:
- QSSMA Male to SSMA Female: Direct adapter for seamless connectivity.
- DC-18 GHz Frequency Range: Supports a wide spectrum of RF applications.
- 50 Ohm Impedance: Ensures optimal signal matching and power transfer.
- Low VSWR (1.3:1): Minimizes signal reflection for superior performance.
- Straight Body Style: Simple and direct connection for various setups.
- Stainless Steel with Passivation: Provides excellent durability and corrosion resistance.
- Wide Operating Temperature: Functions reliably from -55°C to 165°C.
Main Specifications:
| Product No: | YC-QSSMA/SSMA-JKS | |
| Product Series: | SSMA Adapters | |
| Adapter Type: | QSSMA to SSMA | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | QSSMA Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivation | |
| Connector 2: | SSMA Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivation | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.3:1 | |
| Frequency Range: | DC-18 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this QSSMA Male to SSMA Female Adapter:
SSMA adapters are a scaled-down version of the popular SMA adapters, designed for applications where space is at a premium and high-frequency performance is still required.
Here are some applications:
- High-Frequency RF & Microwave Systems;
- Radar Systems;
- Satellite Communications;
- Test and Measurement Equipment;
- Telecommunications;
- Radio-Frequency Identification(RFID) Systems;
- High-Speed Digital Systems.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
