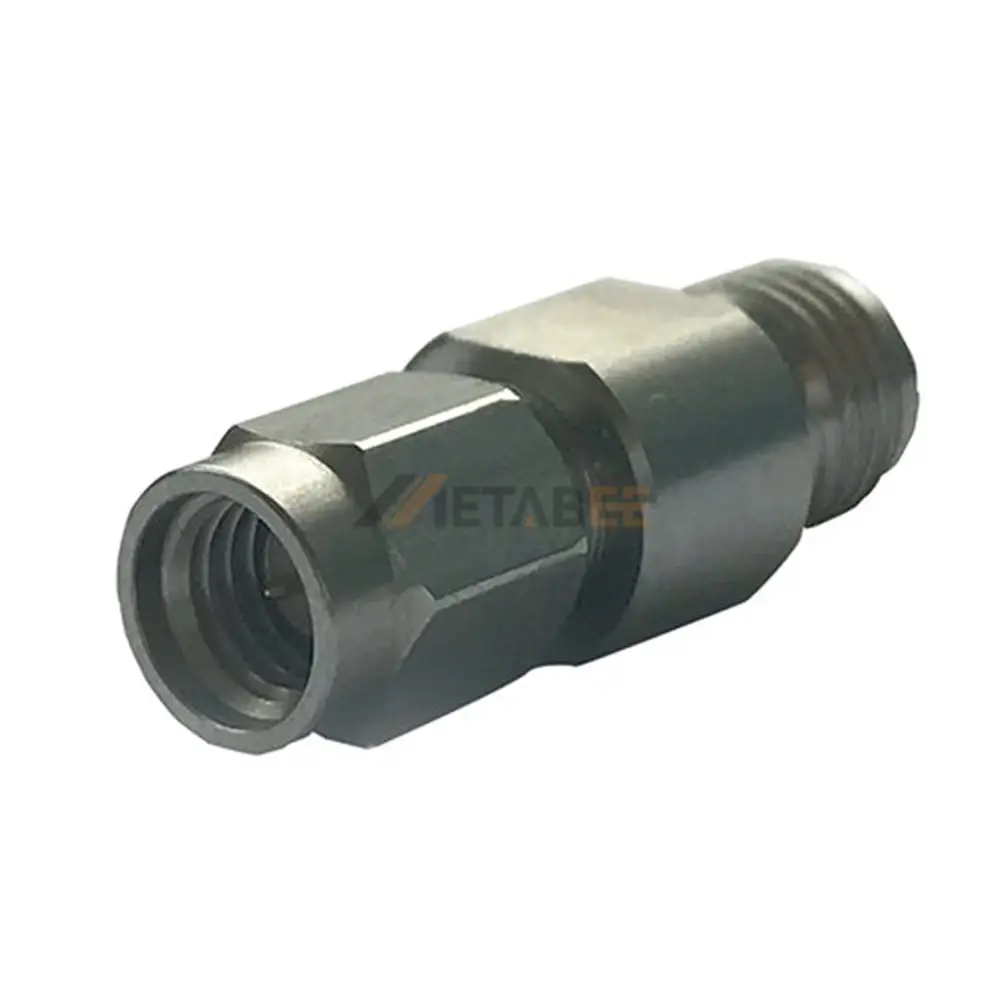

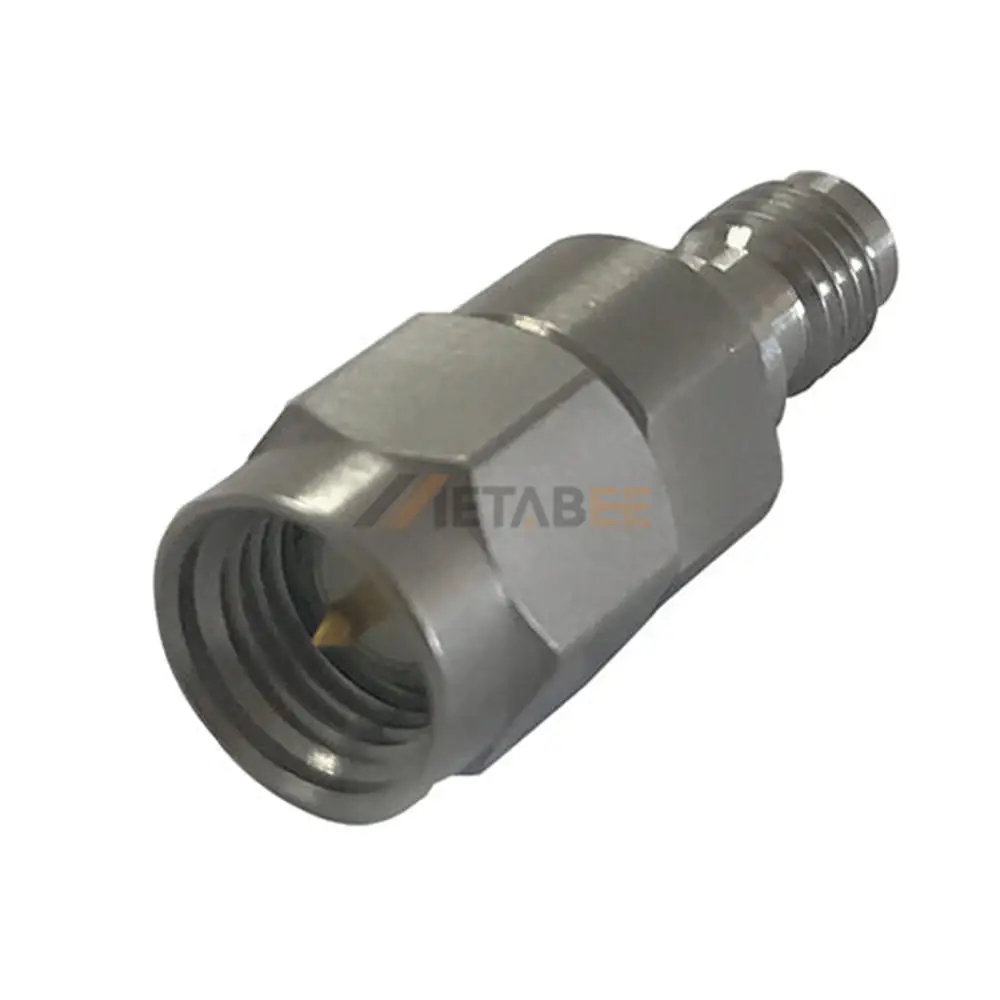

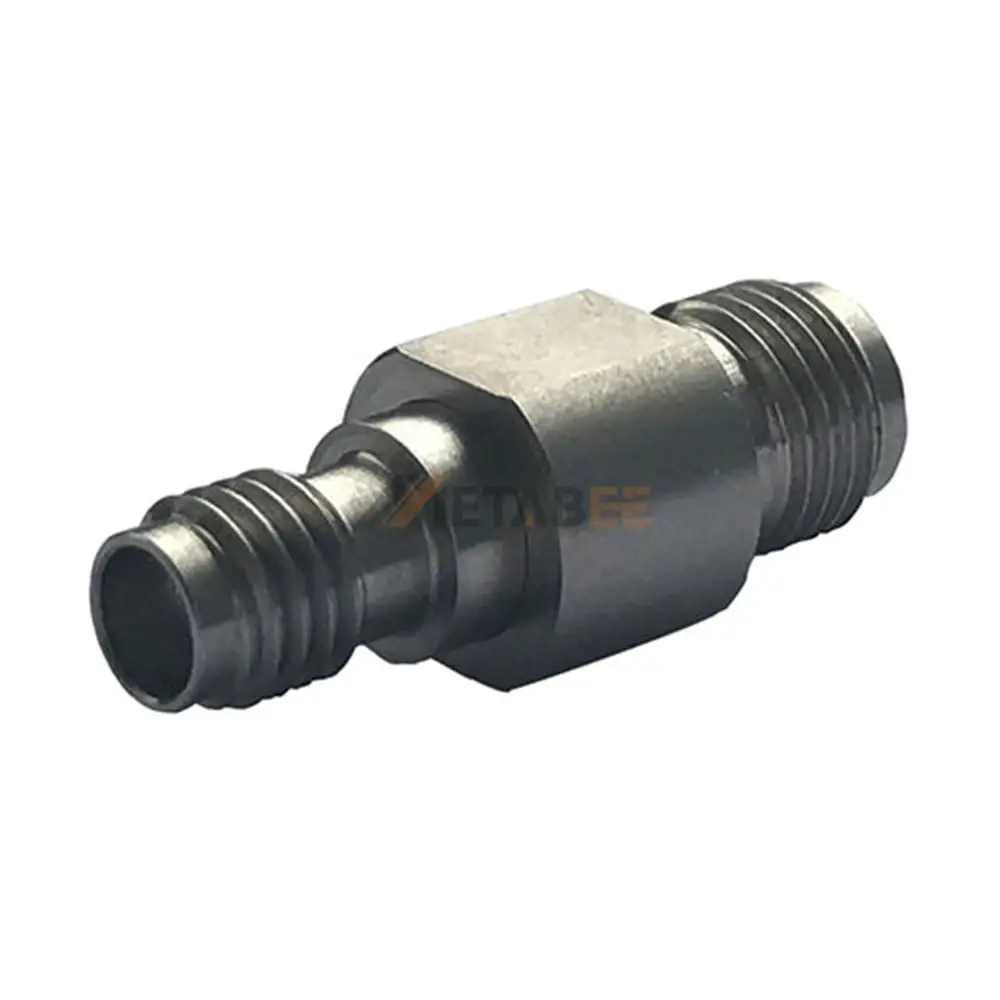

SSMA to SMA Straight Adapter, DC-27 GHz
Introduction
The SSMA to SMA straight adapter provides seamless connectivity between SSMA male and SMA interfaces, designed for high-frequency applications up to 27 GHz. Featuring a 50-ohm impedance and a low VSWR of 1.15:1, this adapter ensures minimal signal loss and superior performance in RF and microwave systems. Its straight design offers easy installation, while the stainless steel construction with passivation plating enhances durability and corrosion resistance, making it ideal for demanding environments.
With an operating temperature range of -55°C to 165°C, this adapter delivers reliable performance in extreme conditions. The precision-engineered connectors maintain consistent signal integrity across the entire DC-27 GHz frequency range, making it suitable for aerospace, telecommunications, and test equipment applications.
Features:
- Frequency Range: DC to 18 GHz for wideband applications.
- Low VSWR: 1.35:1 ensures minimal signal reflection.
- Right-Angle Design: Space-saving and flexible installation.
- 50 Ohm Impedance: Matches standard RF systems.
- Gold-Plated Brass (SSMA) & Passivated Stainless Steel (SMA): Enhanced durability and conductivity.
- Wide Temperature Range: -55°C to 165°C for extreme conditions.
- High-Performance RF Connectivity: Ideal for telecom, aerospace, and test equipment.
Main Specifications:
| Product No: | YC-SMA/SSMA-JKS, YC-SMA/SSMA-JKS, YC-SMA/SSMA-KKS | |
| Product Series: | SMA Adapters | |
| Adapter Type: | SSMA to SMA | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | SSMA Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivation | |
| Connector 2: | SMA Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivation | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.15:1 | |
| Frequency Range: | DC-27 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this SSMA to SMA Straight Adapter:
SMA adapters are incredibly versatile and widely used in the RF and microwave industry. They are a semi-precision coaxial connector, known for their compact size, excellent performance up to 18 GHz, and robust threaded coupling mechanism.
Here are some applications:
- General RF and Microwave Connections;
- Wireless Communication Systems;
- Test and Measurement Equipment;
- Radar Systems;
- Satellite Communications;
- Radio Amateur;
- Automotive Electronics.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
