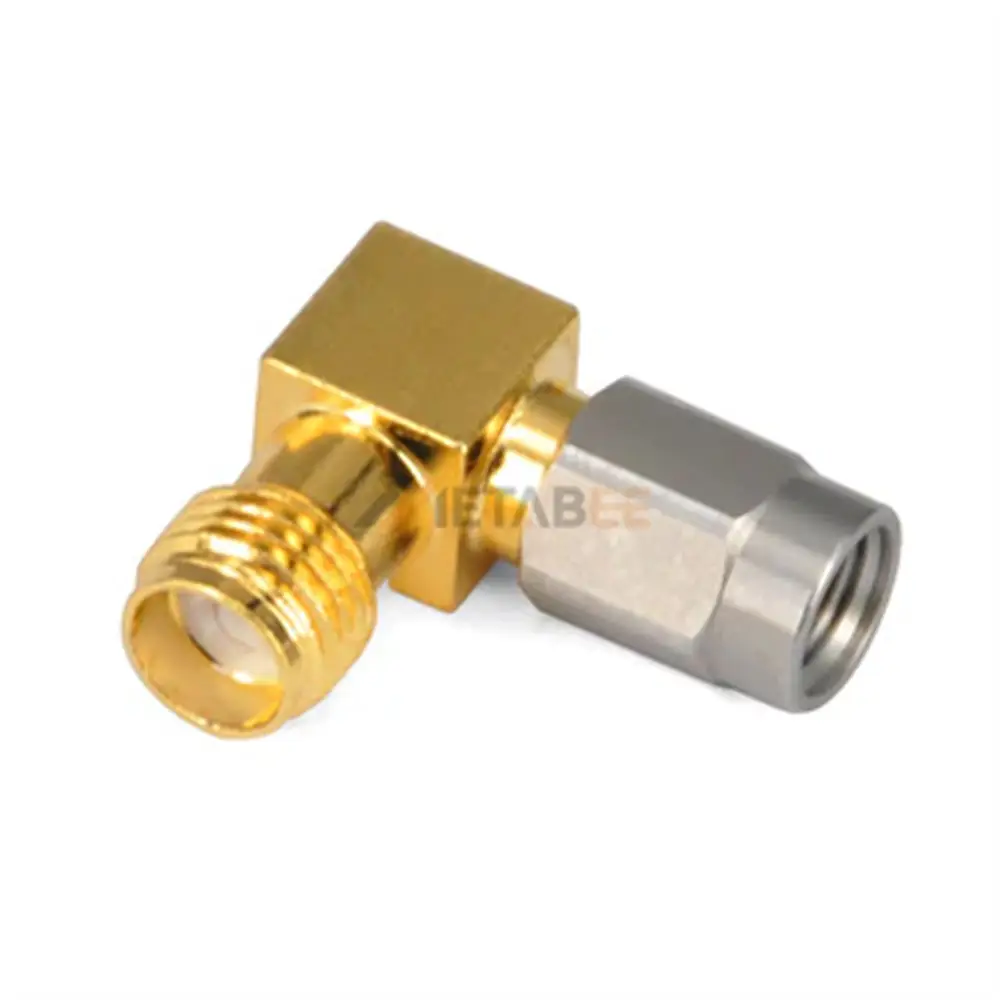

SSMA Male to SMA Female Adapter, Right Angle, DC-18 GHz
Introduction
This SSMA male to SMA female adapter is designed for high-frequency applications, offering reliable performance from DC to 18 GHz. Featuring a 50-ohm impedance and a low VSWR of 1.35:1, it ensures minimal signal loss and superior RF transmission. The right-angle design allows for flexible installation in tight spaces, making it ideal for compact systems. Connector 1 is an SSMA Male (Brass, Gold Plated) for excellent conductivity, while Connector 2 is an SMA Female (Stainless Steel, Passivation) for durability and corrosion resistance.
Built to withstand harsh environments, this adapter operates in temperatures ranging from -55°C to 165°C. Its robust construction ensures long-term reliability in demanding RF, microwave, and telecommunications applications. Whether used in test equipment, aerospace, or military systems, this adapter delivers precision and stability.
Features:
- Frequency Range: DC to 18 GHz for wideband applications.
- Low VSWR: 1.35:1 ensures minimal signal reflection.
- Right-Angle Design: Space-saving and flexible installation.
- 50 Ohm Impedance: Matches standard RF systems.
- Gold-Plated Brass (SSMA) & Passivated Stainless Steel (SMA): Enhanced durability and conductivity.
- Wide Temperature Range: -55°C to 165°C for extreme conditions.
- High-Performance RF Connectivity: Ideal for telecom, aerospace, and test equipment.
Main Specifications:
| Product No: | YC-SMA/SSMA-KWJ | |
| Product Series: | SMA Adapters | |
| Adapter Type: | SSMA to SMA | |
| Brand: | Metabee | |
| Orientation: | Right Angle | |
| Connector 1 | SSMA Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivation | |
| Connector 2: | SMA Connector | |
| Connector 2 – Body Material: | Brass | |
| Connector 2 – Body Material: | Gold Plated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.35:1 | |
| Frequency Range: | DC-18 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this SSMA Male to SMA Female Adapter:
SMA adapters are incredibly versatile and widely used in the RF and microwave industry. They are a semi-precision coaxial connector, known for their compact size, excellent performance up to 18 GHz, and robust threaded coupling mechanism.
Here are some applications:
- General RF and Microwave Connections;
- Wireless Communication Systems;
- Test and Measurement Equipment;
- Radar Systems;
- Satellite Communications;
- Radio Amateur;
- Automotive Electronics.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
