SMA to SMA Right Angle Adapter, DC-18 GHz
Introduction
This SMA to SMA right angle adapter is engineered for precision RF performance in high-frequency applications up to 18 GHz. It features a right-angle design, ideal for compact installations where space is limited. With a 50-ohm impedance and a low VSWR of 1.25:1, this adapter ensures excellent signal integrity across the DC-18 GHz frequency range.
Connector 1 is a SMA connector, while Connector 2 is a SMA connector, both constructed from durable brass with a gold-plated finish for superior conductivity and corrosion resistance. This adapter operates reliably in extreme environments with a wide temperature range of -50°C to +165°C, making it suitable for lab, field, and industrial settings.
Key features:
- Frequency range: DC to 18 GHz;
- Impedance: 50 ohms;
- Right-angle design for space optimization;
- SMA to SMA interface;
- VSWR: ≤1.25:1;
- Bras body with gold-plated finish;
- Operating temperature: -50°C to +165°C.
Main Specifications:

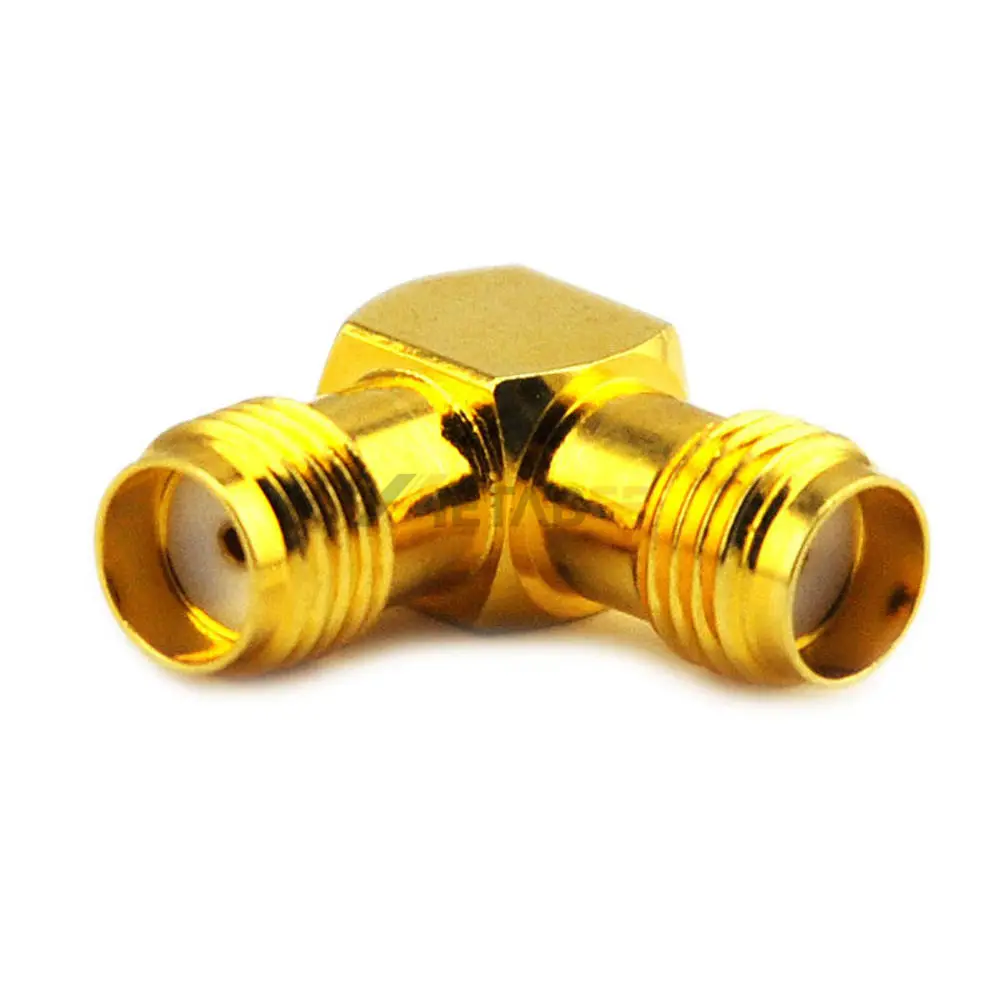

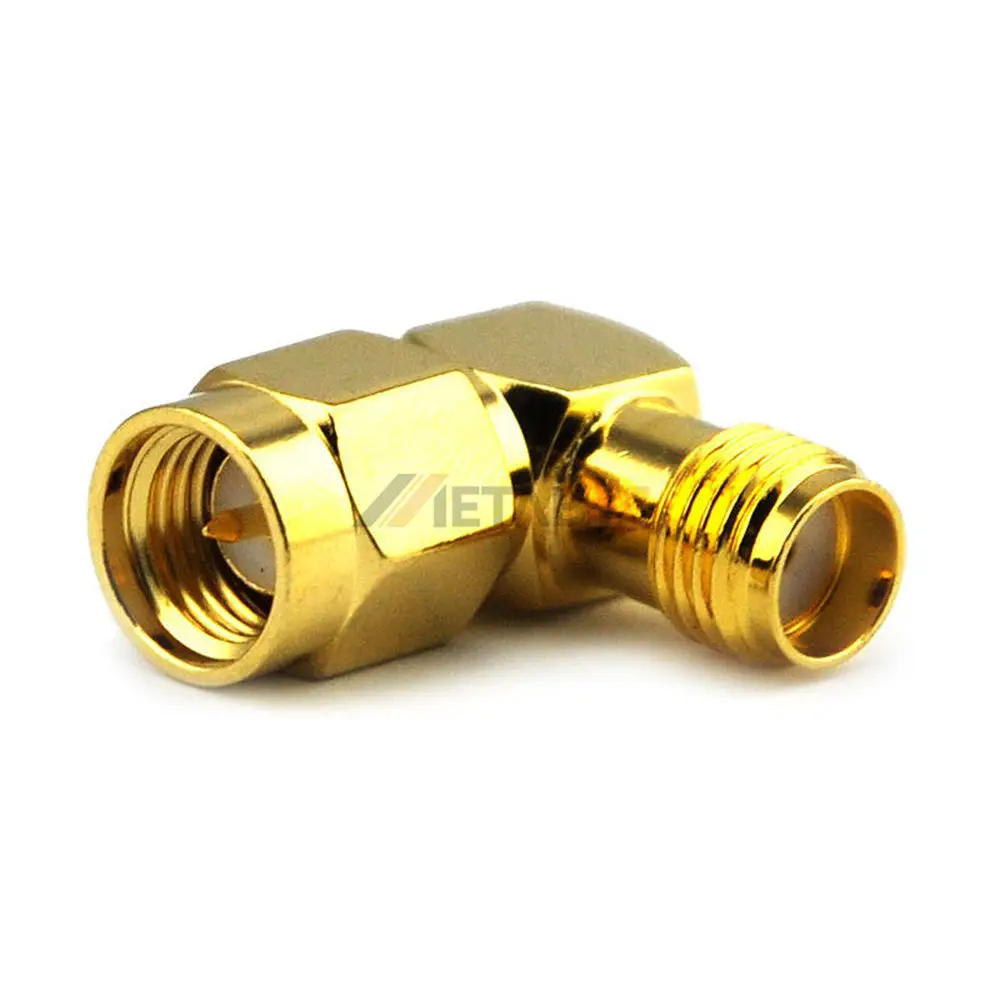

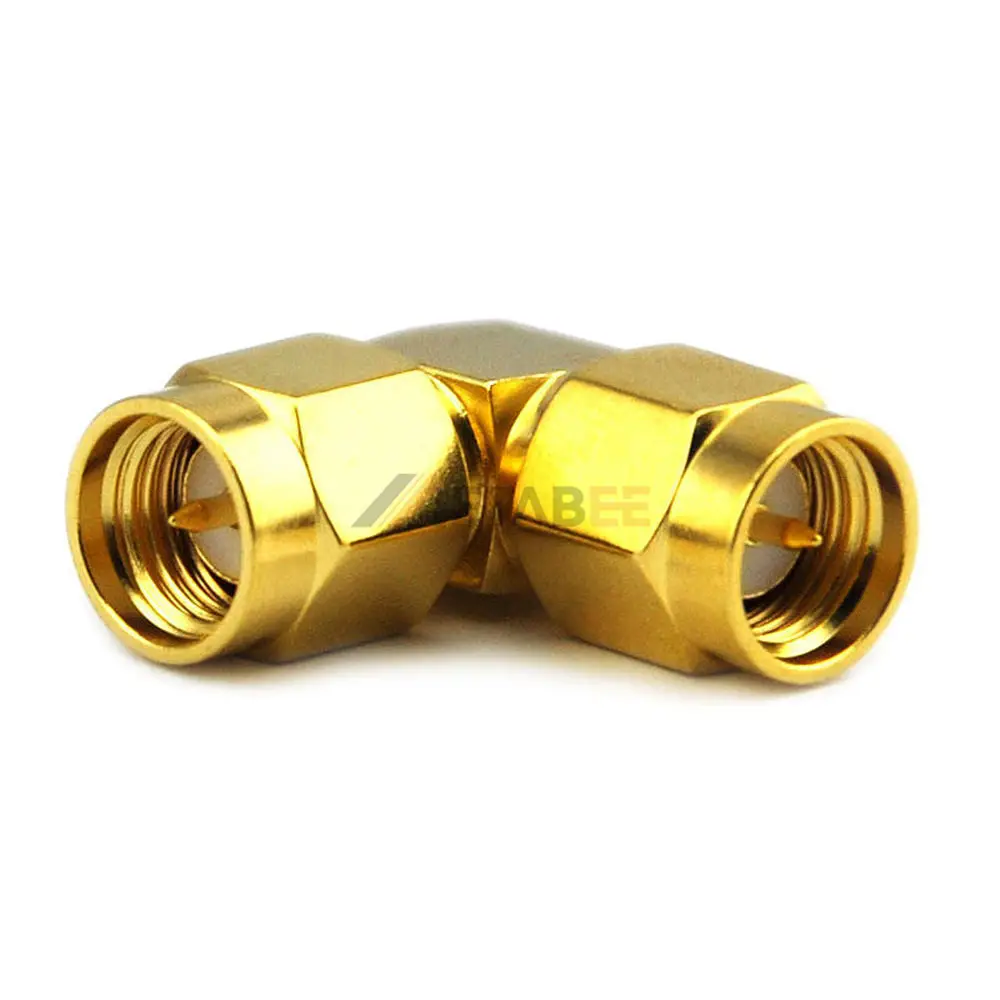

| Product No: | YC-SMA-JWJ, YC-SMA-JWK, YC-SMA-KWK | |
| Product Series: | SMA Adapters | |
| Adapter Type: | SMA to SMA | |
| Brand: | Metabee | |
| Orientation: | Right Angle | |
| Connector 1 | SMA Connector | |
| Connector 1 – Body Material: | Brass | |
| Connector 1 – Body Plating: | Gold Plated | |
| Connector 2: | SMA Connector | |
| Connector 2 – Body Material: | Brass | |
| Connector 2 – Body Material: | Gold Plated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.25:1 | |
| Frequency Range: | DC-18 GHz | |
| Operating Temerature: | -50 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this SMA to SMA Right Angle Adapter:
SMA adapters are incredibly versatile and widely used in the RF and microwave industry. They are a semi-precision coaxial connector, known for their compact size, excellent performance up to 18 GHz, and robust threaded coupling mechanism.
Here are some applications:
- General RF and Microwave Connections;
- Wireless Communication Systems;
- Test and Measurement Equipment;
- Radar Systems;
- Satellite Communications;
- Radio Amateur;
- Automotive Electronics.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
