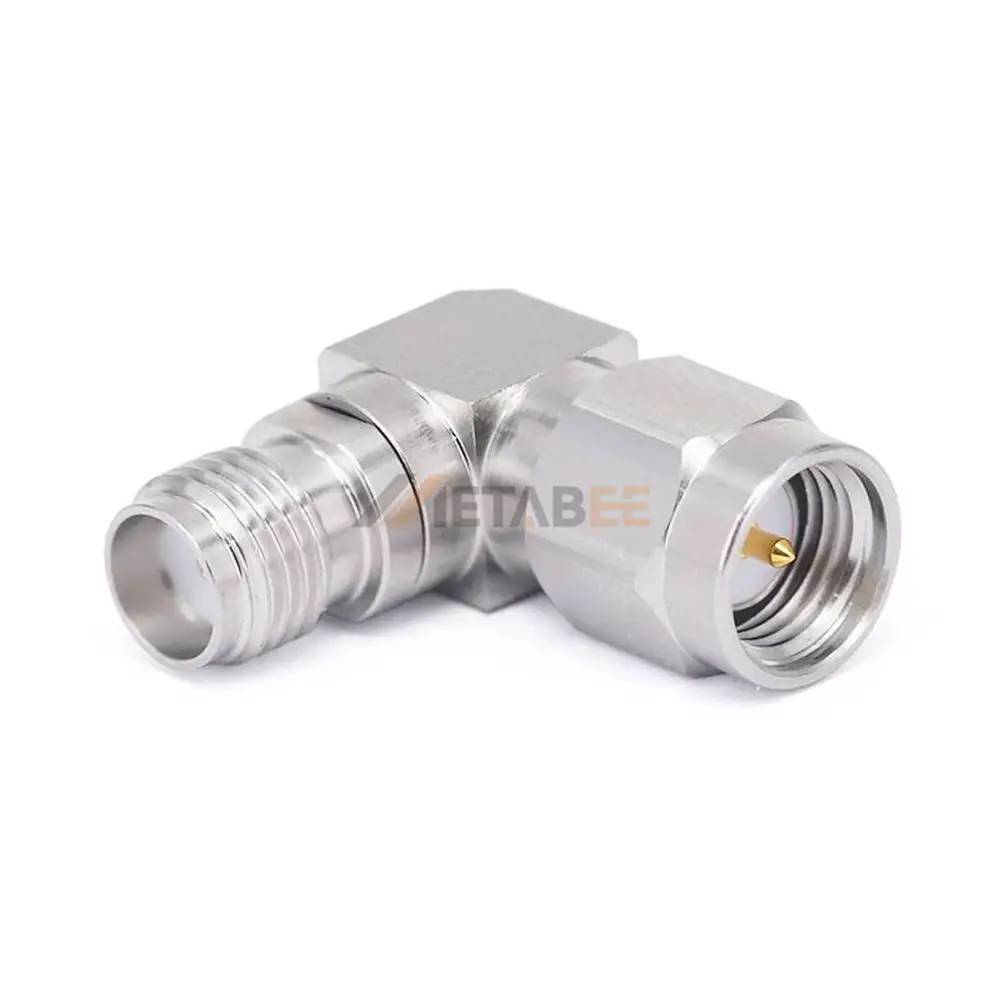

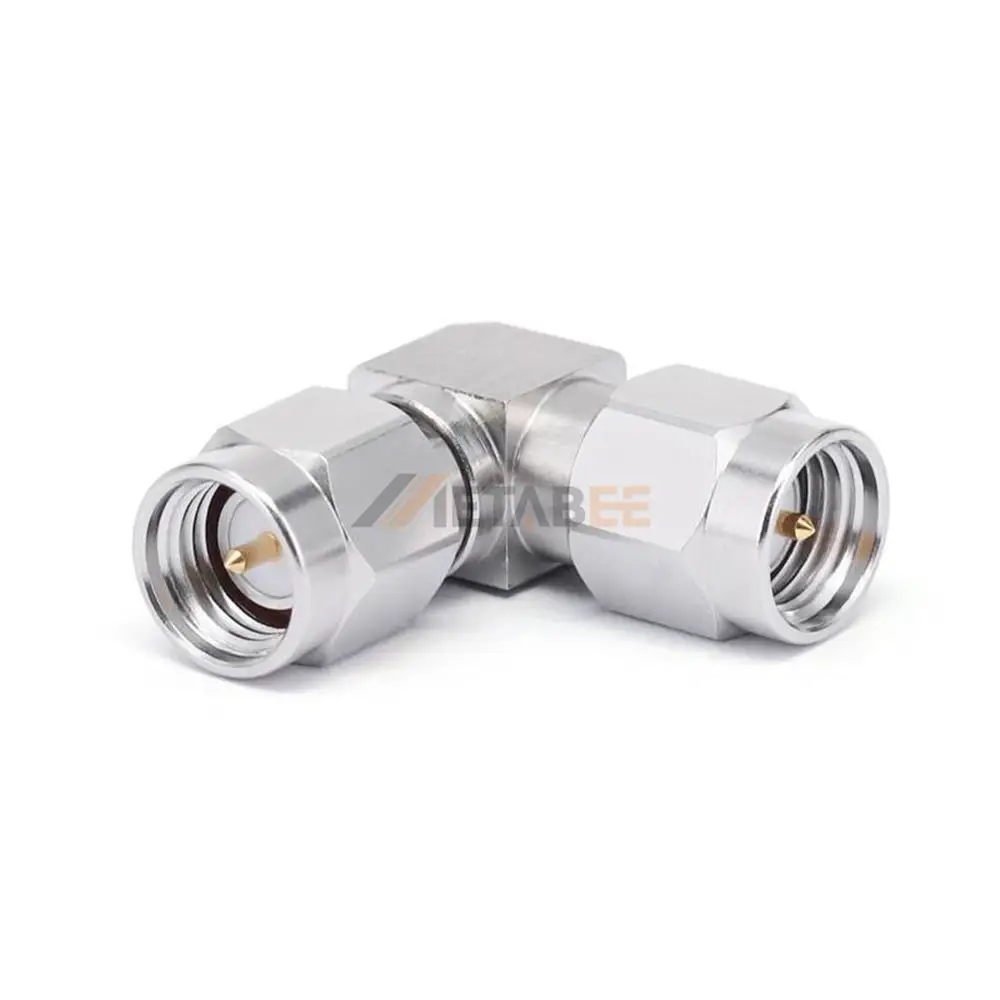

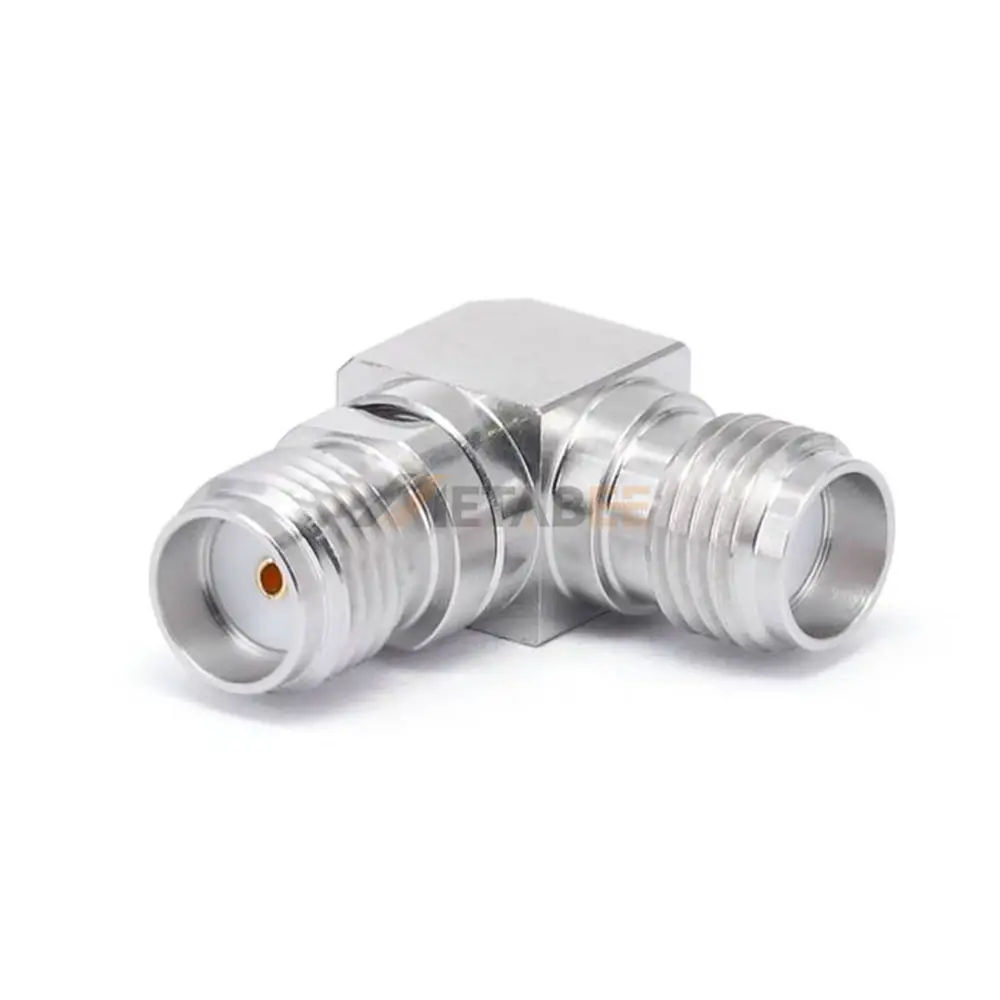

SMA to SMA Right Angle RF Adapter, DC-18 GHz
Introduction
The SMA to SMA right angle RF adapter is a high-performance RF adapter designed for seamless signal transmission in demanding applications. Featuring a precision-engineered 50-ohm impedance match, this adapter ensures minimal signal loss with an impressive VSWR of 1.25:1 across a broad frequency range from DC to 18 GHz. Its right-angle design allows for flexible installation in tight spaces, making it ideal for test equipment, telecommunications, and military systems.
Constructed with stainless steel shells and a passivated finish, both SMA connectors deliver superior durability and corrosion resistance. The adapter operates reliably in extreme conditions, with a temperature range of -55°C to +165°C, ensuring stable performance in harsh environments.
Key features:
- Right-angle SMA to SMA adapter for space-saving installations;
- 50-ohm impedance for optimal signal integrity;
- DC-18 GHz frequency range for wideband applications;
- Low VSWR (1.25:1) minimizes signal reflection;
- Stainless steel construction with passivated coating for durability;
- High-temperature resistance (-55°C to +165°C);
- Reliable RF connectivity for test, telecom, and defense systems.
Main Specifications:
| Product No: | YC-SMA-JWJS-18G, YC-SMA-JWKS-18G, YC-SMA-KWKS-18G | |
| Product Series: | SMA Adapters | |
| Adapter Type: | SMA to SMA | |
| Brand: | Metabee | |
| Orientation: | Right Angle | |
| Connector 1 | SMA Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivation | |
| Connector 2: | SMA Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivation | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.25:1 | |
| Frequency Range: | DC-18 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this SMA to SMA Right Angle RF Adapter:
SMA adapters are incredibly versatile and widely used in the RF and microwave industry. They are a semi-precision coaxial connector, known for their compact size, excellent performance up to 18 GHz, and robust threaded coupling mechanism.
Here are some applications:
- General RF and Microwave Connections;
- Wireless Communication Systems;
- Test and Measurement Equipment;
- Radar Systems;
- Satellite Communications;
- Radio Amateur;
- Automotive Electronics.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
