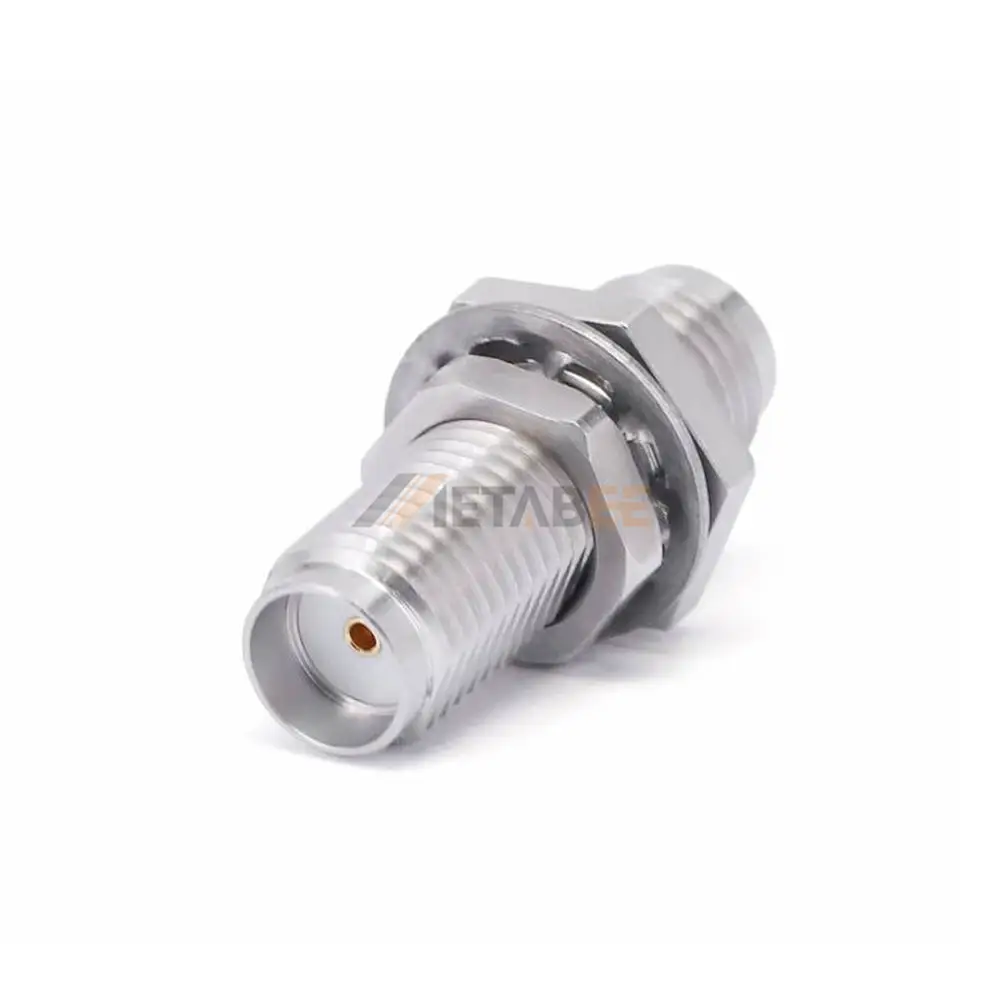

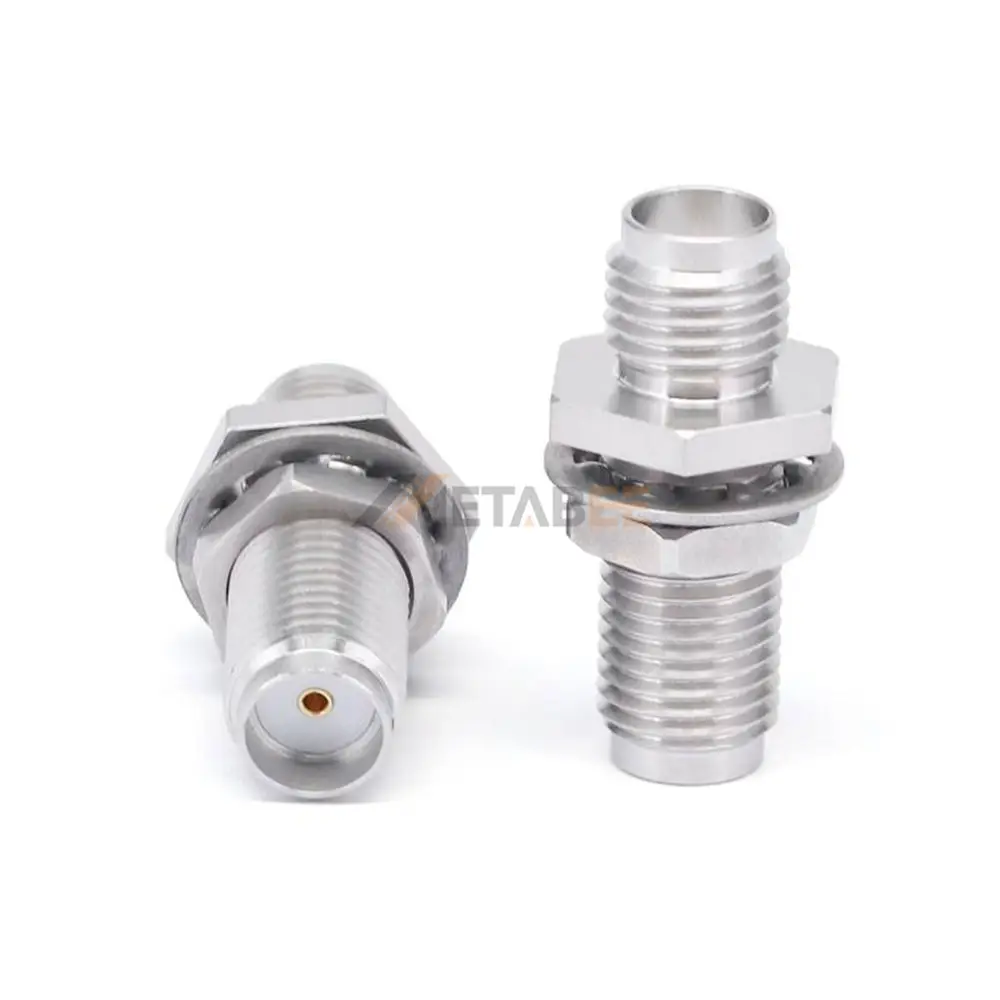

SMA  Female to SMA Female Bulkhead Adapter, DC-26.5 GHz

Introduction

This SMA to SMA  Adapter delivers exceptional RF performance from DC up to 26.5 GHz, making it ideal for demanding high-frequency applications in test equipment, telecommunications, and aerospace systems. Engineered for precision signal transmission, it features a low 1.25:1 VSWR and maintains a consistent 50-ohm impedance across its entire operating range, ensuring minimal signal loss and reflection for reliable data integrity.

Constructed for durability in harsh environments, both SMA connectors utilize rugged stainless steel bodies with a passivated finish, offering superior corrosion resistance. The straight bulkhead design provides a secure panel mount solution. This adapter operates reliably across an extreme temperature spectrum from -55°C to +165°C, guaranteeing stable performance under challenging thermal conditions.

Key features:

  • Wide Frequency Range: DC to 26.5 GHz operation.
  • Low VSWR: Excellent signal integrity with 1.25:1 max.
  • Bulkhead Mount: Secure panel/board mounting capability.
  • Stainless Steel Construction: High durability and strength.
  • Passivated Finish: Enhanced corrosion resistance.
  • 50 Ohm Impedance: Precise impedance matching.
  • Extended Temp Range: Reliable from -55°C to +165°C.

Main Specifications:

Product No:  YC-SMA-KYKG-1
Product Series: SMA Adapters
Adapter Type: SMA to SMA
Brand: Metabee
Orientation: Straight
Connector 1 SMA Connector
Connector 1 – Body Material: Stainless Steel
Connector 1 – Body Plating:  Passivation
Connector 2: SMA Connector
Connector 2 – Body Material: Stainless Steel
Connector 2 – Body Material: Passivation
Mount Method: Panel Mount-Bulkhead
Impedance: 50 Ohm
VSWR:  1.25:1
Frequency Range: DC-26.5 GHz
Operating Temerature:  -55 ºC to +165 ºC
Other Feature: None


Applications of this SMA  Female to SMA Female Bulkhead Adapter:

SMA adapters are incredibly versatile and widely used in the RF and microwave industry. They are a semi-precision coaxial connector, known for their compact size, excellent performance up to 18 GHz, and robust threaded coupling mechanism.

Here are some applications:

  • General RF and Microwave Connections;
  • Wireless Communication Systems;
  • Test and Measurement Equipment;
  • Radar Systems;
  • Satellite Communications;
  • Radio Amateur;
  • Automotive Electronics.

We can customize this RF Adapter according to your special requirements. Get a free quotation now!

RF Adapters
Metabee is a professional electronic component manufacturer from China. We can provide all kinds of RF Adapters.
Product Series

SMA Adapters

Product No.

YC-SMA-KYKG-1

Adapter Type

SMA to SMA

Product Name

SMA  Female to SMA Female Bulkhead Adapter, DC-26.5 GHz

Brand

Metabee

Orientation

Straight

Connector 1

QSMA Connector

Connector 1 - Body Material

Stainless Steel

Connector 1 - Body Plating

Passivation

Connector 2

SMA Connector

Connector 2 - Body Material

Stainless Steel

Connector 2 - Body Plating

Passivation

Mount Method

Panel Mount-Balkhead

Impendence

50 Ohm

Frequency Range

DC-26.5 GHz

VSWR

≤1.25:1

Operating Temerature

-55 ºC to +165 ºC

Other Features

None
