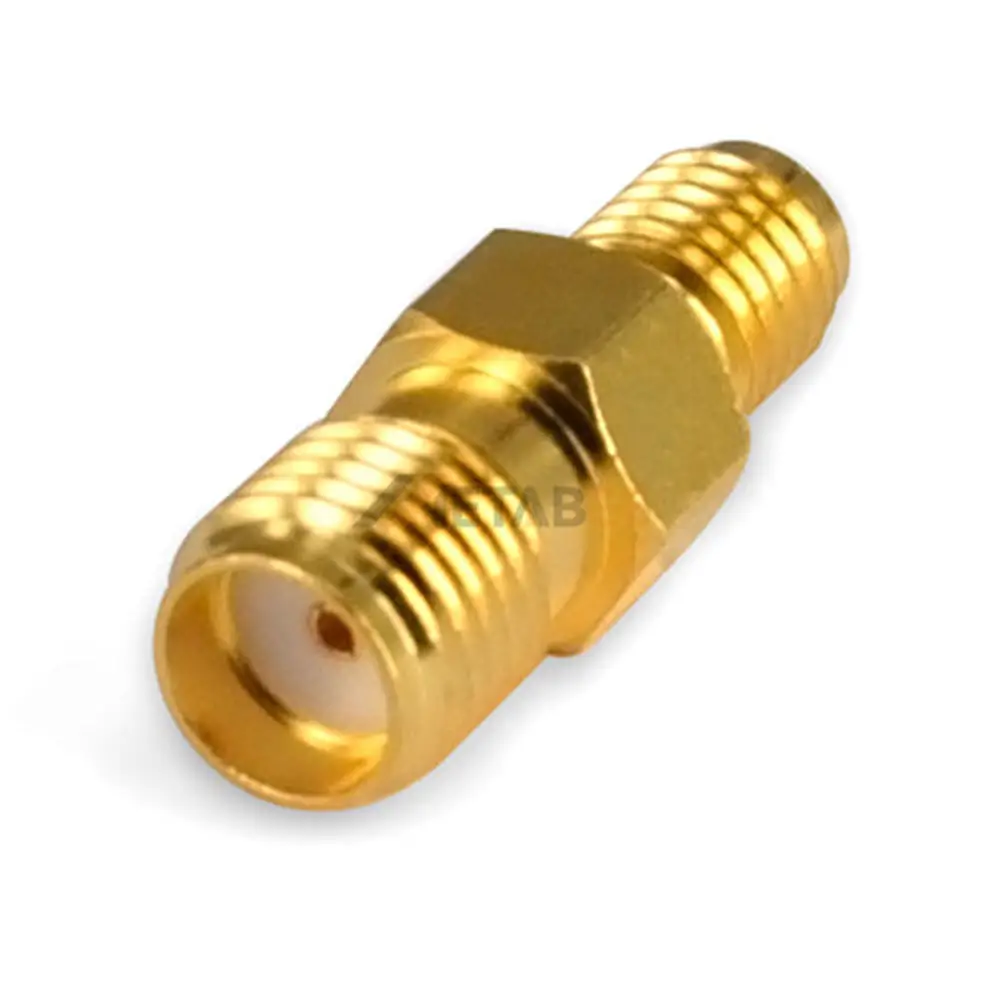

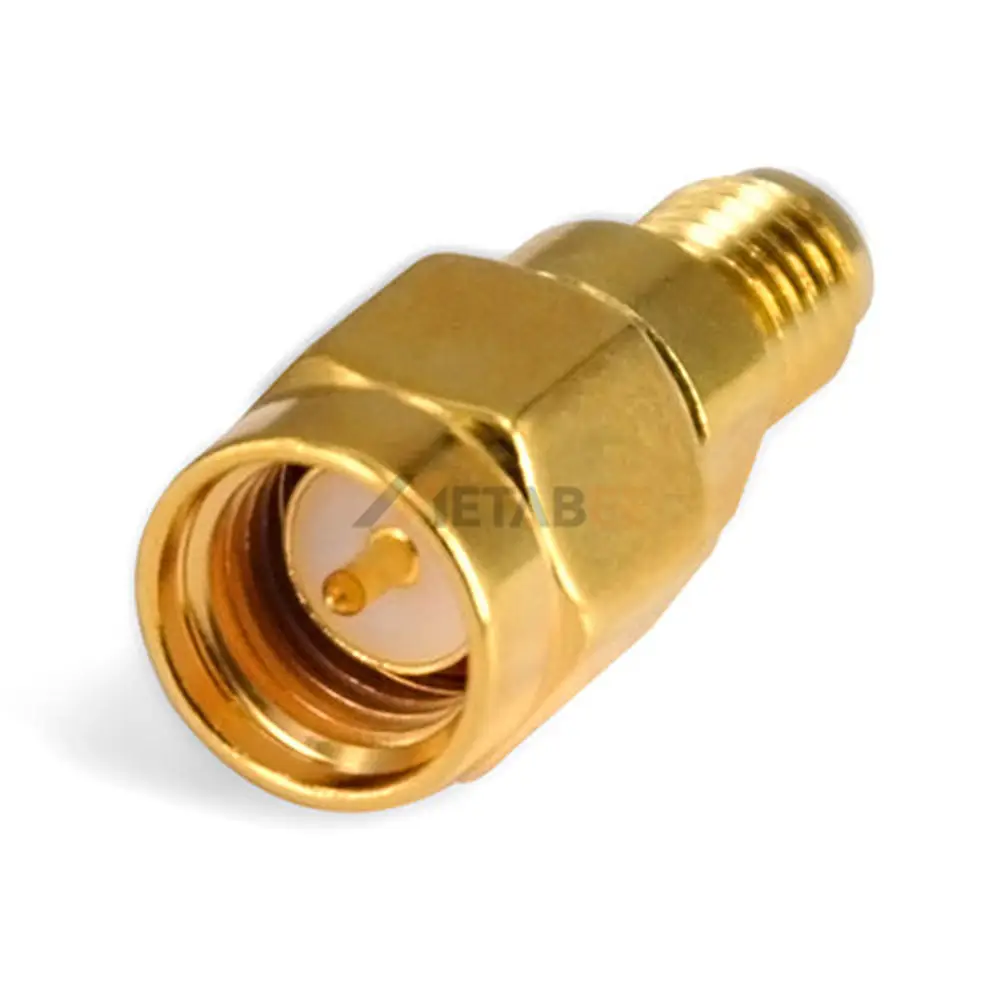

SMA to SSMA Straight Adapter, DC-18 GHz
Introduction
This SMA to SSMA straight adapter is engineered for seamless and reliable signal transmission in a wide range of RF and microwave applications. Designed to bridge the gap between SMA and SSMA interfaces, this high-performance adapter ensures excellent connectivity with a 50 Ohm impedance. Its straight body configuration allows for direct inline connections, making it an ideal choice for compact setups and systems where space is at a premium. Crafted with gold-plated brass bodies for both the SMA and SSMA connectors, it offers superior corrosion resistance and optimal electrical conductivity, ensuring long-term stability and performance.
Operating flawlessly across a broad frequency range from DC to 18 GHz, this adapter provides exceptional signal integrity, boasting a low VSWR of 1.25:1. This makes it suitable for demanding applications requiring minimal signal loss and reflection. Built to withstand extreme conditions, it has a wide operating temperature range of -55°C to 165°C, ensuring dependable performance in diverse environments.
Features:
- SMA to SSMA Connector: Enables seamless connection between SMA and SSMA interfaces.
- DC-18 GHz Frequency Range: Supports a wide spectrum of RF and microwave applications.
- 50 Ohm Impedance: Ensures optimal signal matching and minimal loss.
- Low VSWR (1.25:1): Provides excellent signal integrity with minimal reflection.
- Gold-Plated Brass Body: Offers superior durability, conductivity, and corrosion resistance.
- Straight Configuration: Ideal for direct inline connections and space-constrained designs.
- Wide Operating Temperature: Performs reliably from -55°C to 165°C.
Main Specifications:
| Product No: | YC-SMA/SSMA-JK, YC-SMA/SSMA-KJ, YC-SMA/SSMA-KK | |
| Product Series: | SMA Adapters | |
| Adapter Type: | SMA to SSMA | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | SMA Connector | |
| Connector 1 – Body Material: | Brass | |
| Connector 1 – Body Plating: | Gold Plated | |
| Connector 2: | SSMA Connector | |
| Connector 2 – Body Material: | Brass | |
| Connector 2 – Body Material: | Gold Plated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.25:1 | |
| Frequency Range: | DC-18 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this SMA to SSMA Straight Adapter:
SMA adapters are incredibly versatile and widely used in the RF and microwave industry. They are a semi-precision coaxial connector, known for their compact size, excellent performance up to 18 GHz, and robust threaded coupling mechanism.
Here are some applications:
- General RF and Microwave Connections;
- Wireless Communication Systems;
- Test and Measurement Equipment;
- Radar Systems;
- Satellite Communications;
- Radio Amateur;
- Automotive Electronics.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
