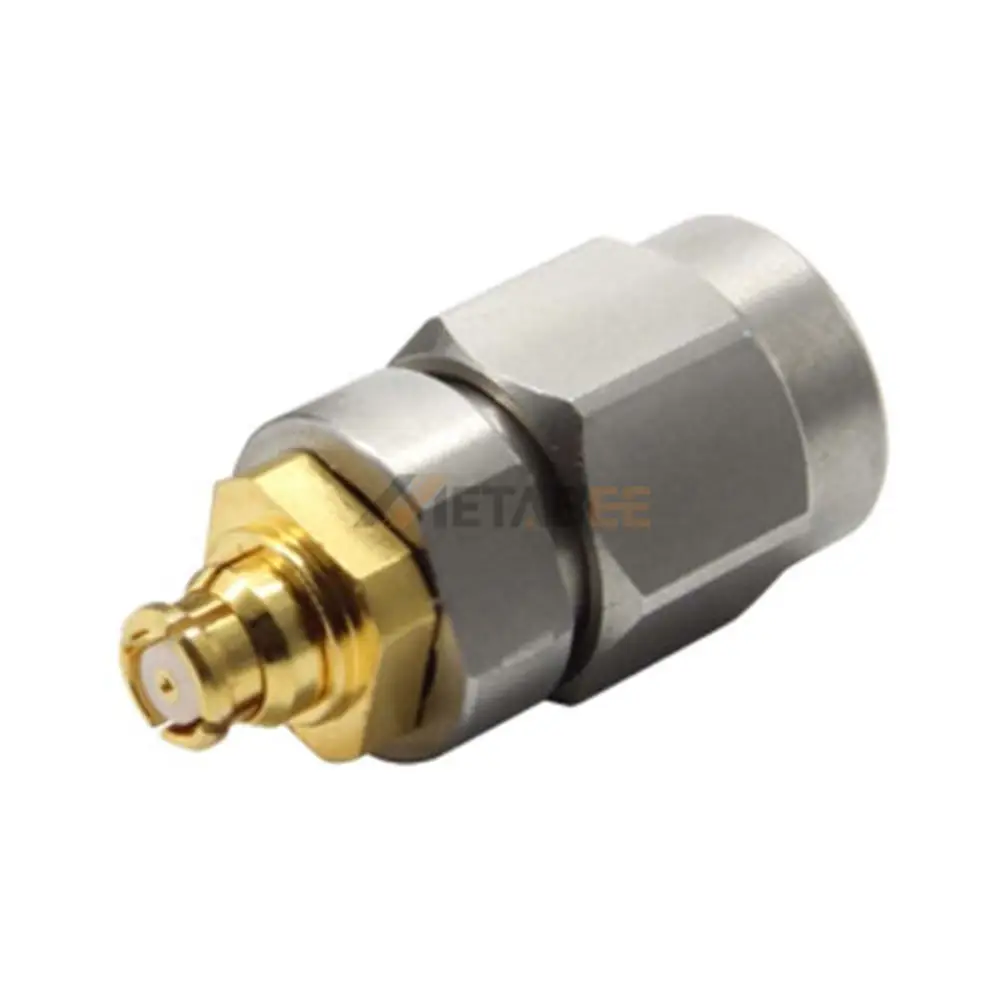

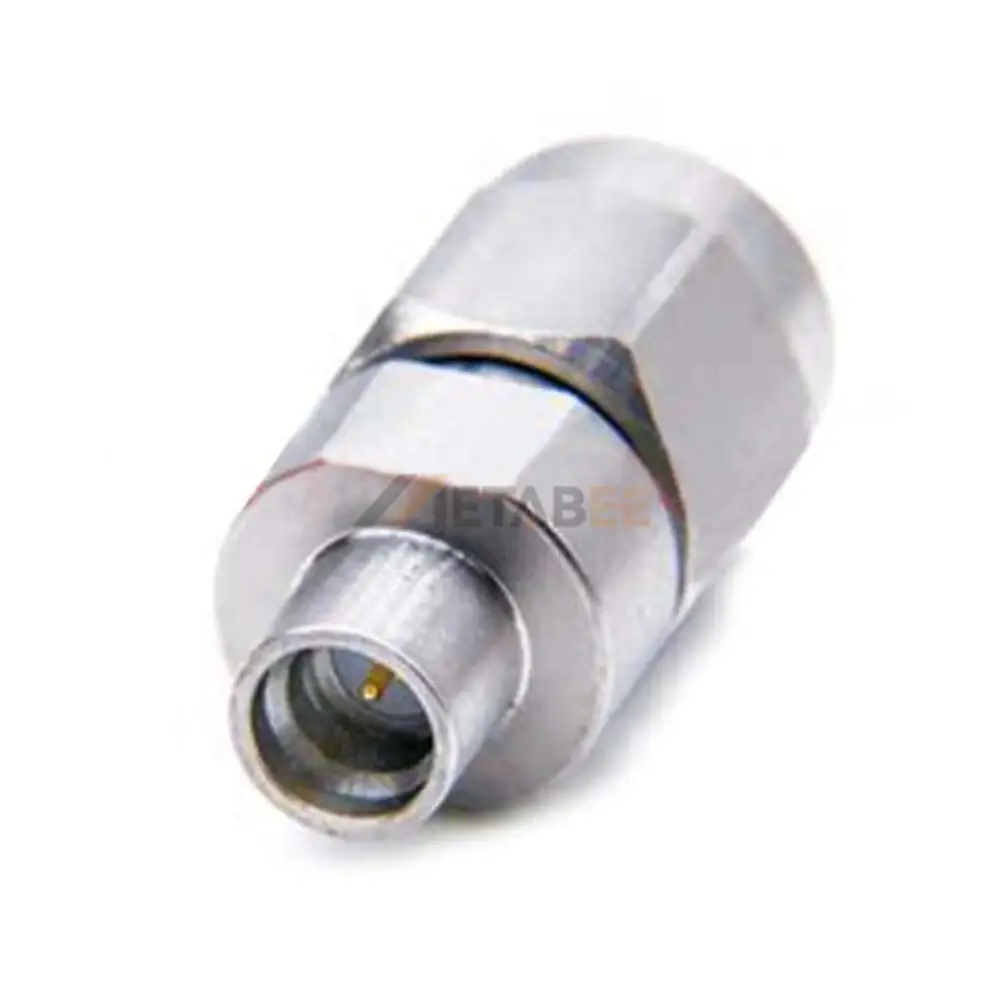

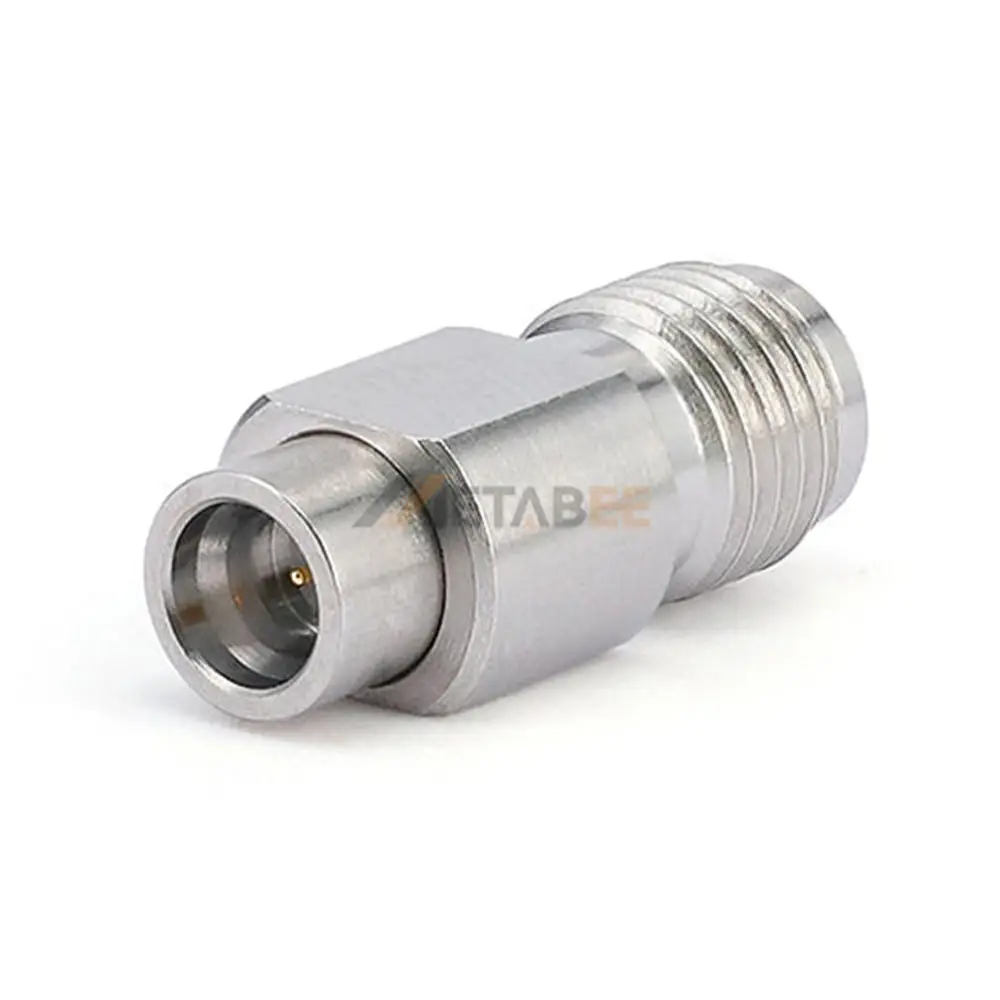

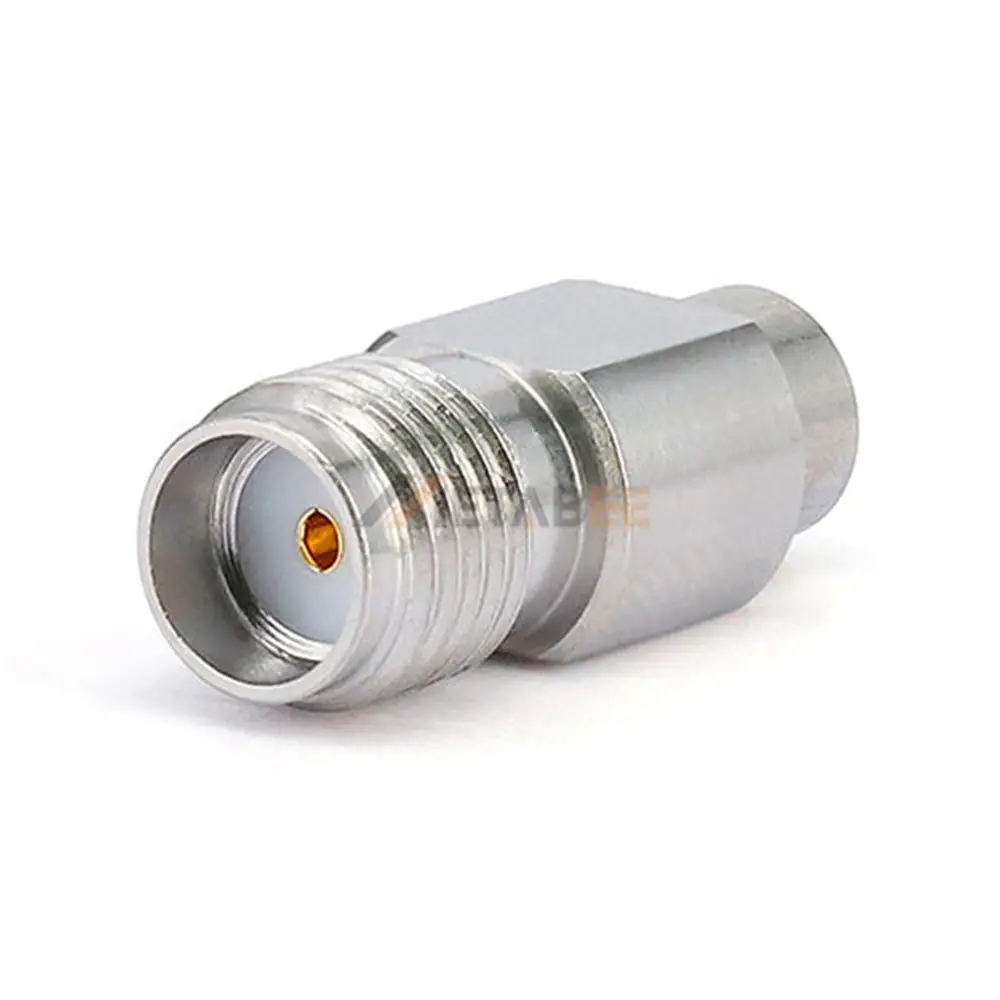

GPO (SMP) to SMA Adapter, DC-18 GHz
Introduction
The GPO (SMP) to SMA adapter is a high-performance RF interconnect solution designed for seamless signal transmission in demanding applications. With a broad frequency range of DC-18 GHz and a low VSWR of 1.5:1, this adapter ensures minimal signal loss and superior impedance matching at 50 ohms. Its straight installation design provides easy integration into various setups, while the stainless steel housing with passivation plating offers excellent durability and corrosion resistance.
Featuring a GPO (SMP) connector on one end and an SMA connector on the other, this adapter guarantees reliable connectivity in high-frequency environments. It operates efficiently across an extreme temperature range of -55°C to +165°C, making it suitable for aerospace, telecommunications, and military applications. The robust construction ensures long-term performance even under harsh conditions.
Features:
- Frequency Range: DC-18 GHz for wideband applications.
- Low VSWR: 1.5:1 ensures minimal signal reflection.
- 50 Ohm Impedance: Optimal signal integrity.
- Stainless Steel Housing: High durability with passivation plating.
- Straight Configuration: Easy installation and space-saving.
- Wide Temperature Range: -55°C to +165°C for extreme environments.
- Reliable Connectors: GPO (SMP) to SMA for secure RF connections.
Main Specifications:
| Product No: | YC-SMA/GPO-JJS, YC-SMA/GPO-JKS, YC-SMA/GPO-KJS, YC-SMA/GPO-KKS | |
| Product Series: | SMA Adapters | |
| Adapter Type: | SMP to SMA | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | SMP Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivation | |
| Connector 2: | SMA Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivation | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.5:1 | |
| Frequency Range: | DC-18 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this GPO (SMP) to SMA Adapter:
SMA adapters are incredibly versatile and widely used in the RF and microwave industry. They are a semi-precision coaxial connector, known for their compact size, excellent performance up to 18 GHz, and robust threaded coupling mechanism.
Here are some applications:
- General RF and Microwave Connections;
- Wireless Communication Systems;
- Test and Measurement Equipment;
- Radar Systems;
- Satellite Communications;
- Radio Amateur;
- Automotive Electronics.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
