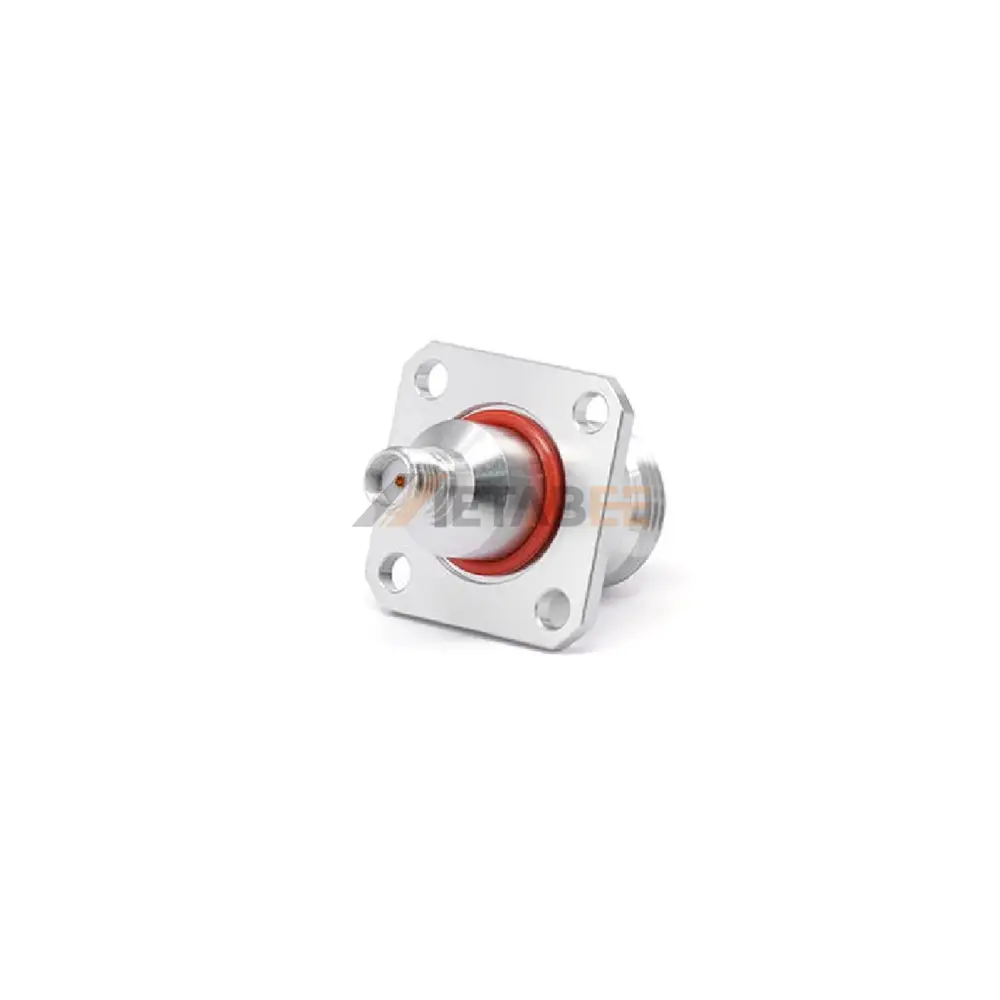

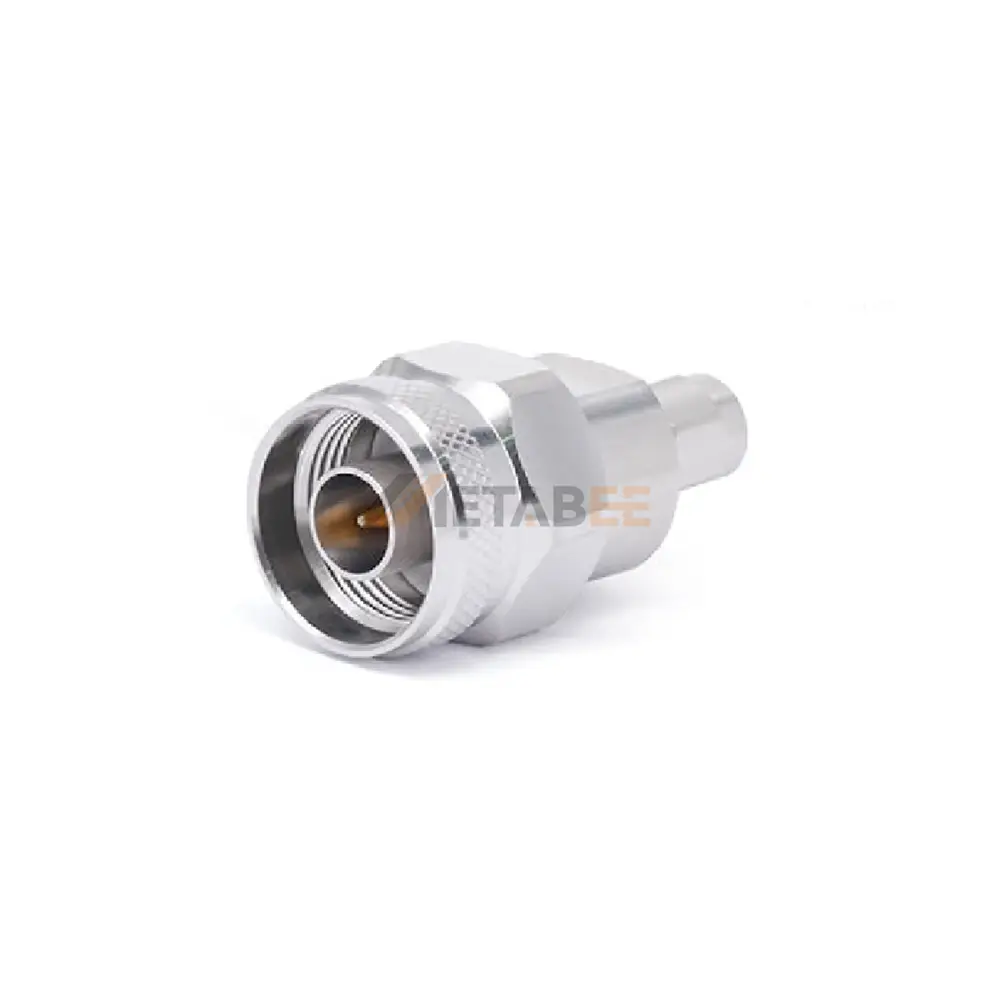

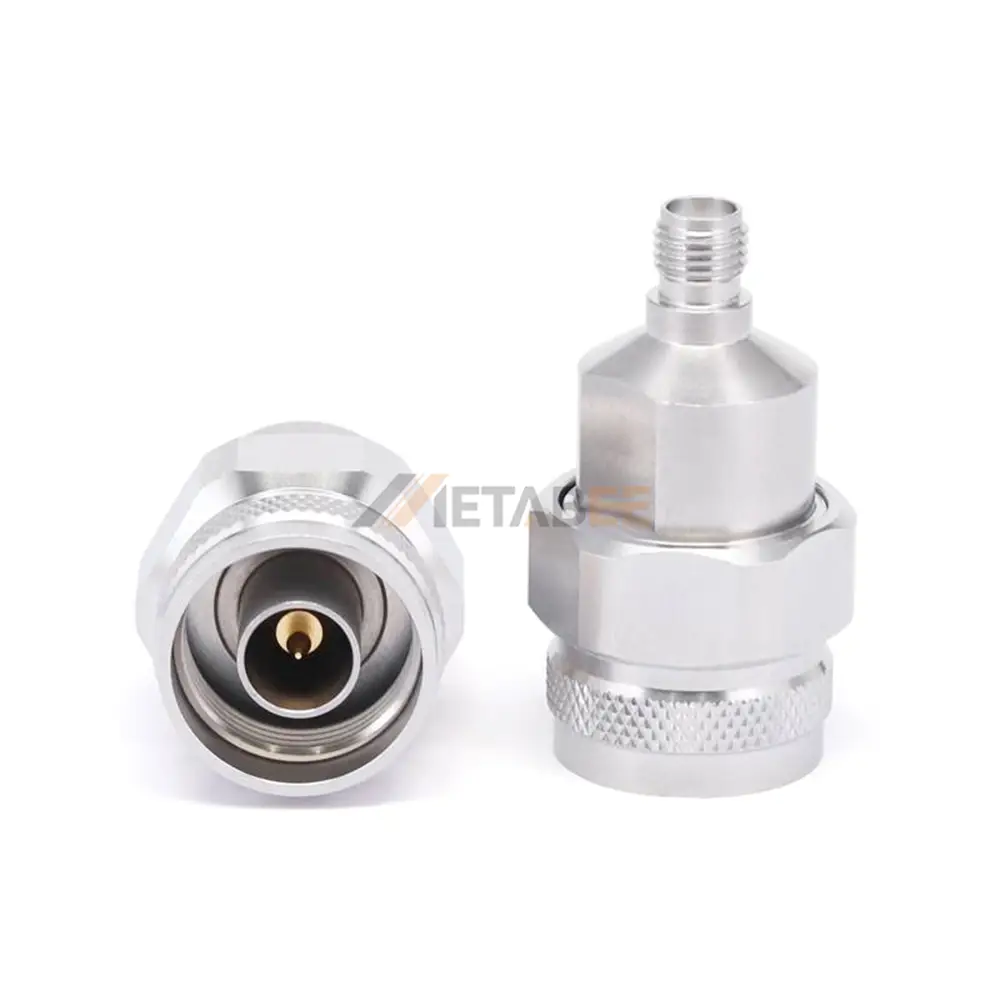

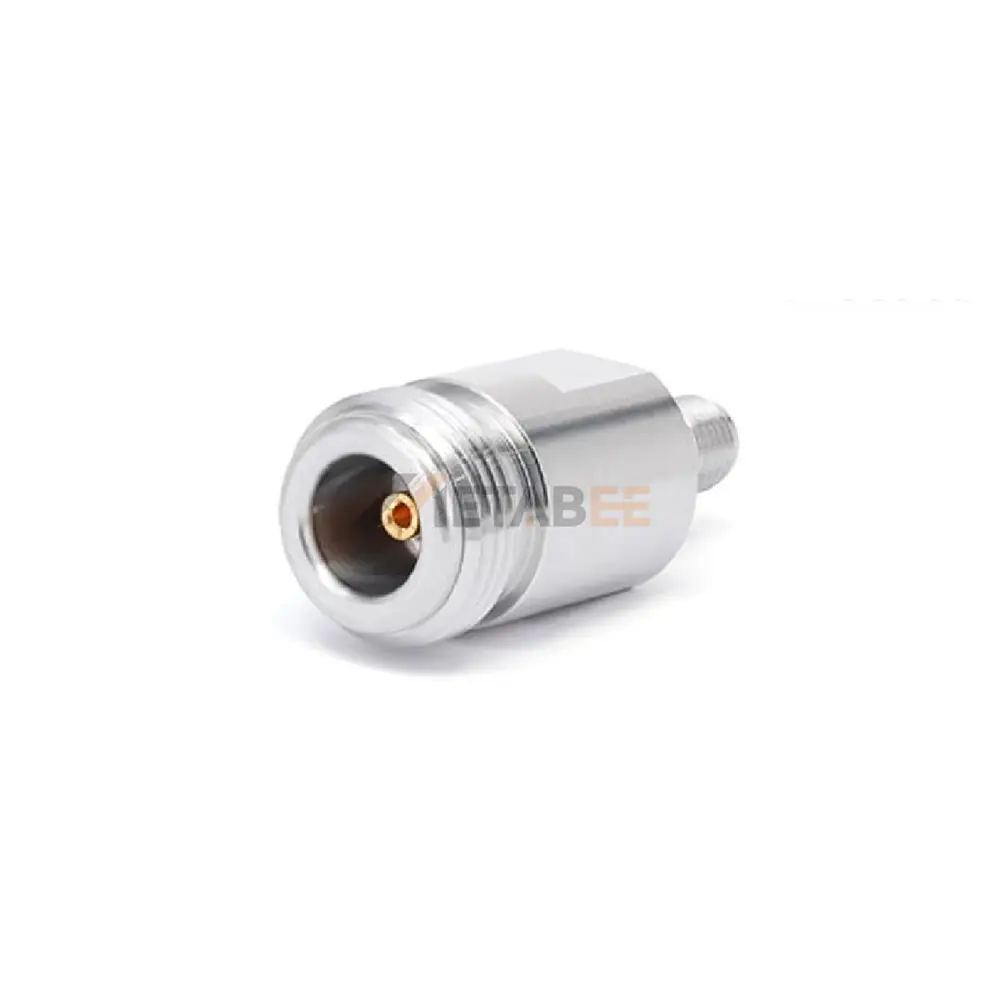

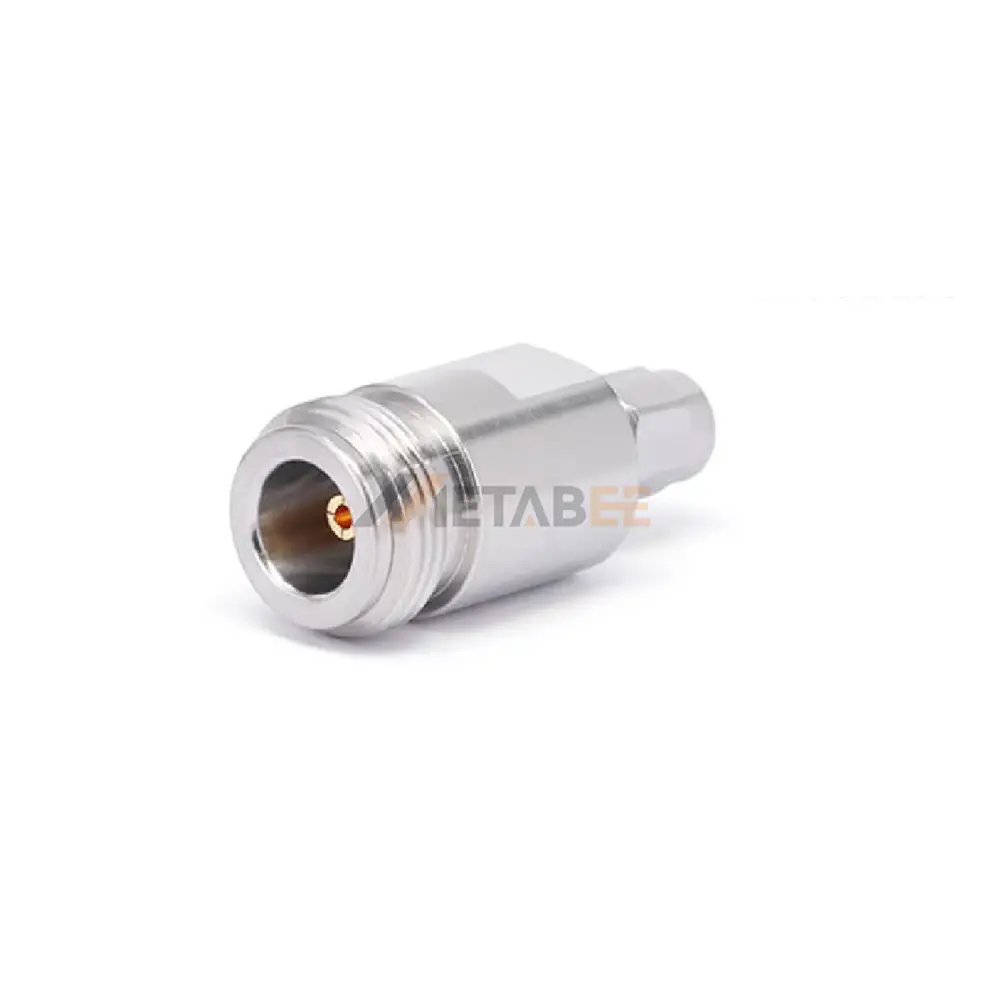

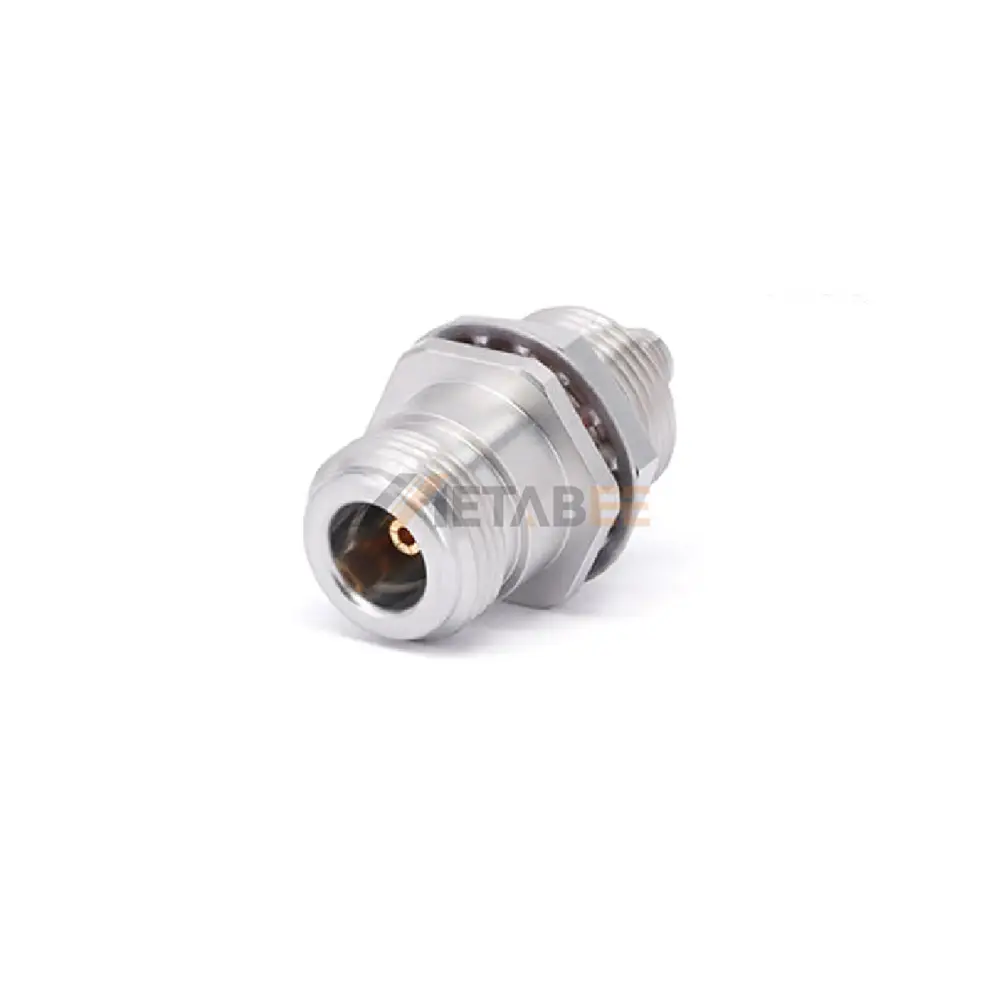

N-type to SMA Adapter, DC-18 GHz

Introduction

This high-performance N-type to SMA adapter is designed for seamless connectivity between N-type and SMA interfaces, ensuring reliable signal transmission across a broad frequency range of DC to 18 GHz. With a low VSWR of 1.15:1 and a 50-ohm impedance match, it minimizes signal loss and reflections, making it ideal for precision RF and microwave applications. The straight installation design provides easy integration into your setup, while the robust stainless steel construction with passivation plating ensures durability and corrosion resistance in harsh environments.

Engineered for stability, this adapter operates flawlessly across an extreme temperature range of -55°C to 165°C, making it suitable for both industrial and military applications. The N-type connector (male or female as per model) and SMA connector (male or female as per model) are precision-machined for secure, low-loss connections. Whether used in test equipment, telecommunications, or aerospace systems, this adapter delivers consistent performance and long-term reliability.

atures:

  • Frequency Range: DC to 18 GHz for versatile applications.
  • Low VSWR: 1.15:1 ensures minimal signal reflection.
  • 50-Ohm Impedance: Matches standard RF systems.
  • Stainless Steel Housing: Durable and corrosion-resistant.
  • Passivation Plating: Enhances longevity and performance.
  • Wide Temp Range: Operates from -55°C to 165°C.
  • Straight Design: Easy installation and space-saving.

Main Specifications:

Product No:  YC-N/SMA-JJS, YC-N/SMA-JKS, YC-N/SMA-KJS, YC-N/SMA-KKS, YC-N/SMA-KFKS, YC-N/SMA-KYKS
Product Series: SMA Adapters
Adapter Type: N-type to SMA
Brand: Metabee
Orientation: Straight
Connector 1 N-type Connector
Connector 1 – Body Material: Stainless Steel
Connector 1 – Body Plating:  Passivation
Connector 2: SMA Connector
Connector 2 – Body Material: Stainless Steel
Connector 2 – Body Material: Passivation
Mount Method: Not Applicable
Impedance: 50 Ohm
VSWR:  1.15:1
Frequency Range: DC-18 GHz
Operating Temerature:  -55 ºC to +165 ºC
Other Feature: None


Applications of this N-type to SMA Adapter:

SMA adapters are incredibly versatile and widely used in the RF and microwave industry. They are a semi-precision coaxial connector, known for their compact size, excellent performance up to 18 GHz, and robust threaded coupling mechanism.

Here are some applications:

  • General RF and Microwave Connections;
  • Wireless Communication Systems;
  • Test and Measurement Equipment;
  • Radar Systems;
  • Satellite Communications;
  • Radio Amateur;
  • Automotive Electronics.

We can customize this RF Adapter according to your special requirements. Get a free quotation now!

RF Adapters
Metabee is a professional electronic component manufacturer from China. We can provide all kinds of RF Adapters.
Product Series

SMA Adapters

Product No.

YC-N/SMA-JJS, YC-N/SMA-JKS, YC-N/SMA-KFKS, YC-N/SMA-KJS, YC-N/SMA-KKS, YC-N/SMA-KYKS

Adapter Type

N-type to SMA

Product Name

N-type to SMA Adapter, DC-18 GHz

Brand

Metabee

Orientation

Straight

Connector 1

N-Type Connector

Connector 1 - Body Material

Stainless Steel

Connector 1 - Body Plating

Passivation

Connector 2

SMA Connector

Connector 2 - Body Material

Stainless Steel

Connector 2 - Body Plating

Passivation

Mount Method

Not Applicable

Impendence

50 Ohm

Frequency Range

DC-18 Ghz

VSWR

≤ 1.15:1

Operating Temerature

-55 ºC to +165 ºC

Other Features

None
