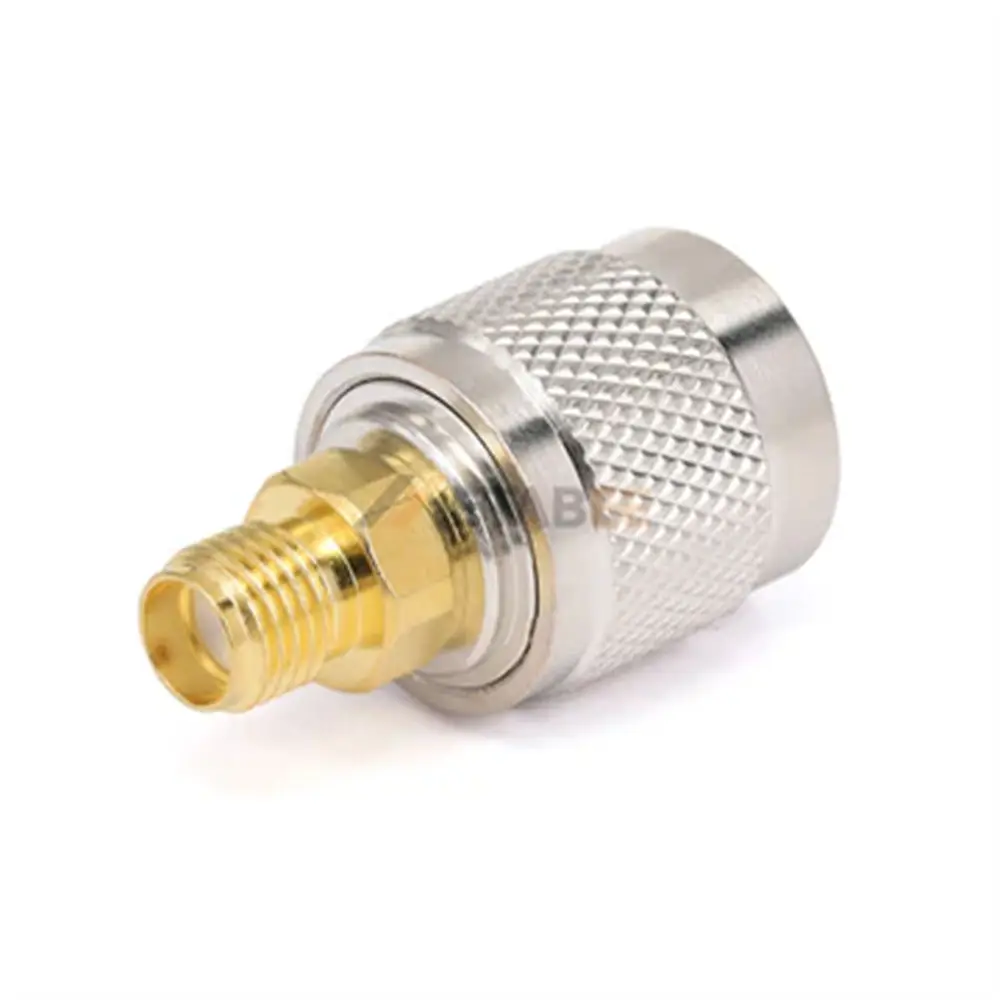

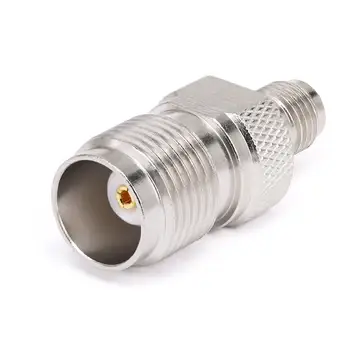

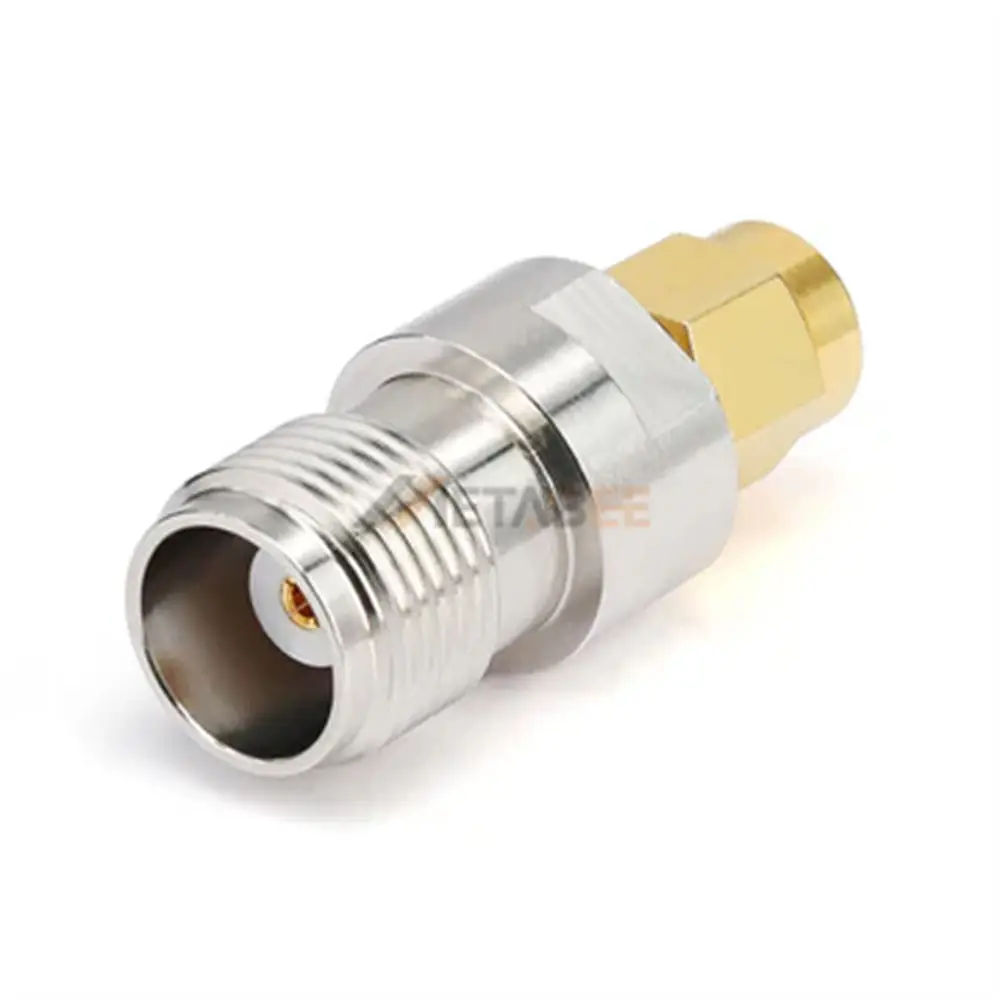

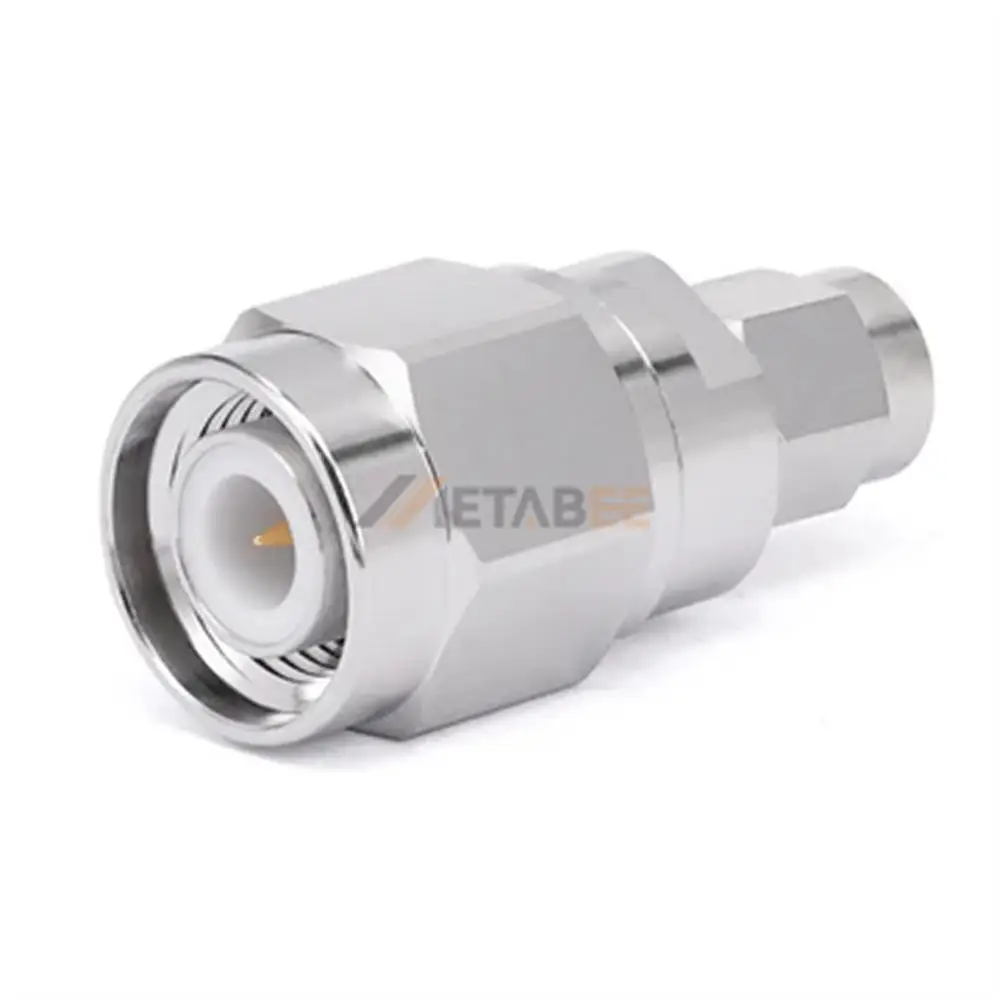

TNC to SMA Straight Adapter, DC-18 GHz
Introduction
This high-performance TNC to SMA straight adapter ensures seamless signal transmission in RF applications, supporting a broad frequency range from DC to 18 GHz. Featuring a 50-ohm impedance and a low VSWR of 1.25:1, it minimizes signal loss and reflection for reliable connectivity. The adapter’s straight installation design provides a compact and efficient solution for space-constrained setups.
Constructed for durability, both the TNC and SMA connectors are made of stainless steel with a passivation coating, offering excellent corrosion resistance. The adapter operates flawlessly in extreme conditions, with a temperature range of -55°C to +165°C, making it ideal for industrial, military, and aerospace applications.
atures:
- Frequency Range: DC to 18 GHz;
- Impedance: 50 ohms for optimal signal integrity;
- Low VSWR: 1.25:1 for minimal signal reflection;
- Robust Build: Stainless steel housing with passivation coating;
- Wide Temp Range: -55°C to +165°C for harsh environments;
- Straight Design: Space-saving and easy installation;
- Reliable Connectors: TNC to SMA.
Main Specifications:
| Product No: | YC-TNC/SMA-JJS, YC-TNC/SMA-JKS, YC-TNC/SMA-KJS, YC-TNC/SMA-KKS | |
| Product Series: | SMA Adapters | |
| Adapter Type: | TNC to SMA | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | TNC Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivation | |
| Connector 2: | SMA Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivation | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.25:1 | |
| Frequency Range: | DC-18 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this TNC to SMA Straight Adapter:
SMA adapters are incredibly versatile and widely used in the RF and microwave industry. They are a semi-precision coaxial connector, known for their compact size, excellent performance up to 18 GHz, and robust threaded coupling mechanism.
Here are some applications:
- General RF and Microwave Connections;
- Wireless Communication Systems;
- Test and Measurement Equipment;
- Radar Systems;
- Satellite Communications;
- Radio Amateur;
- Automotive Electronics.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
