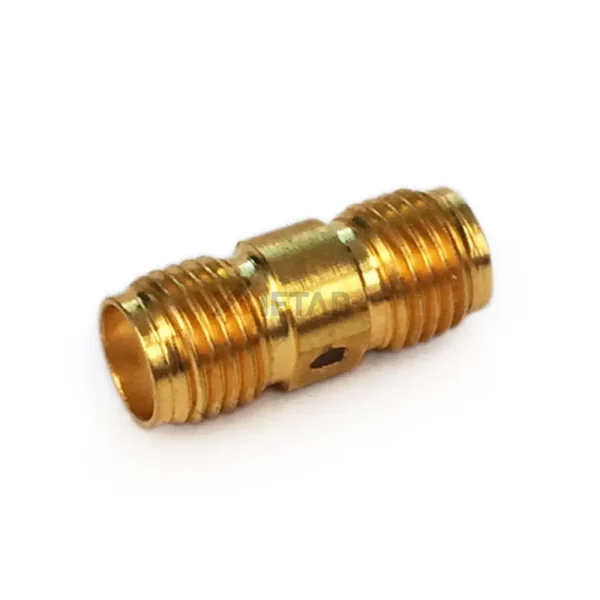

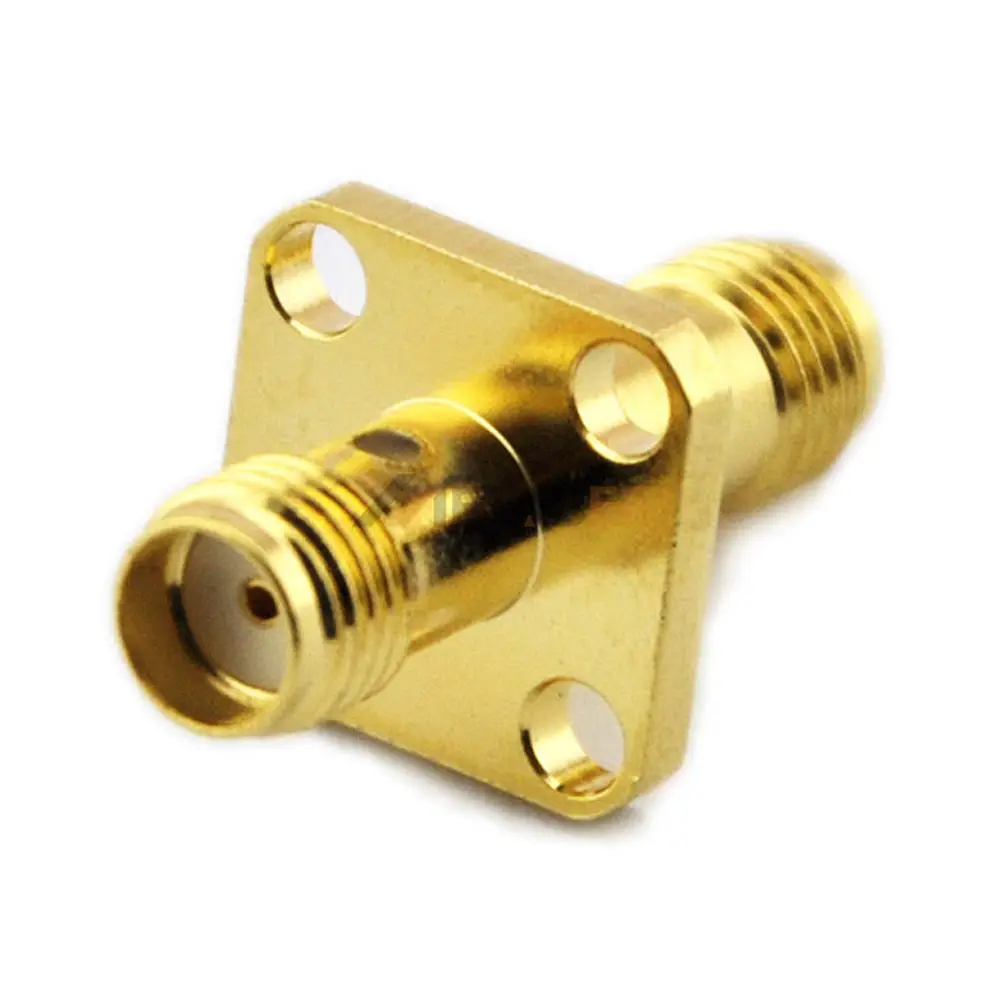

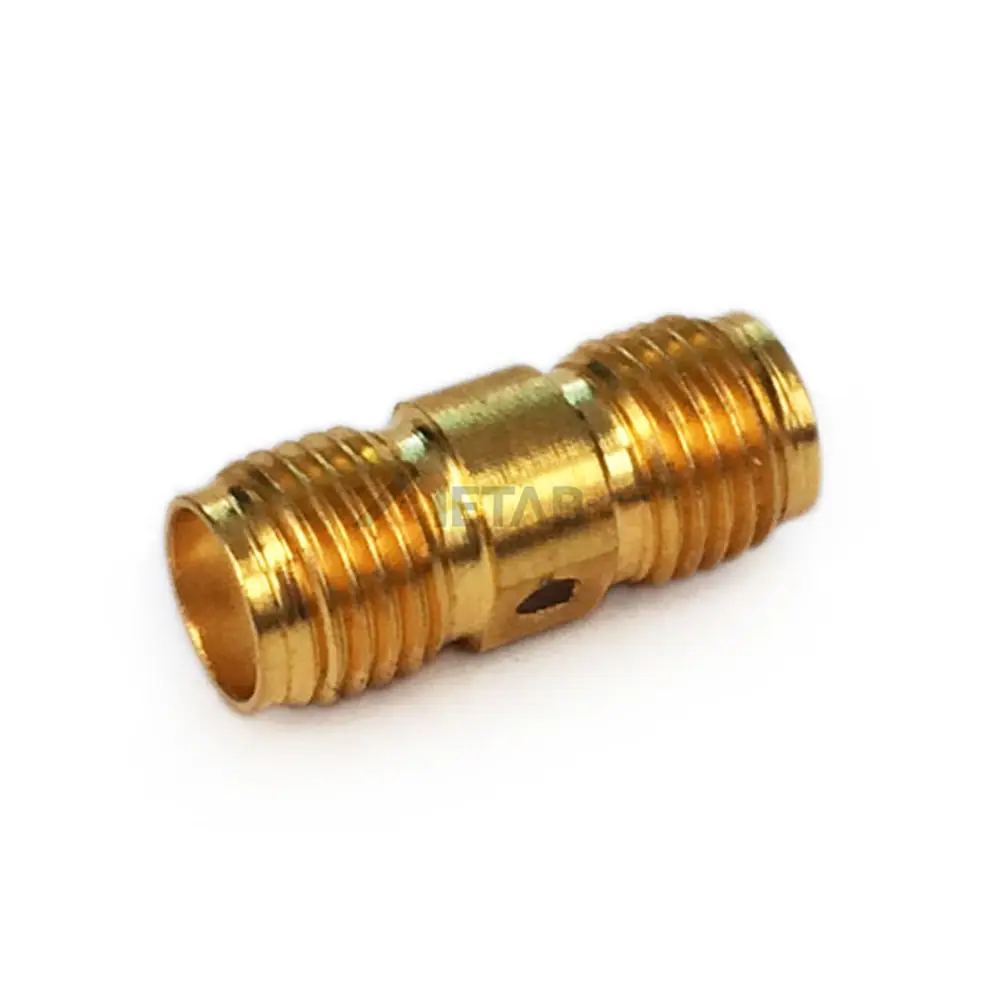

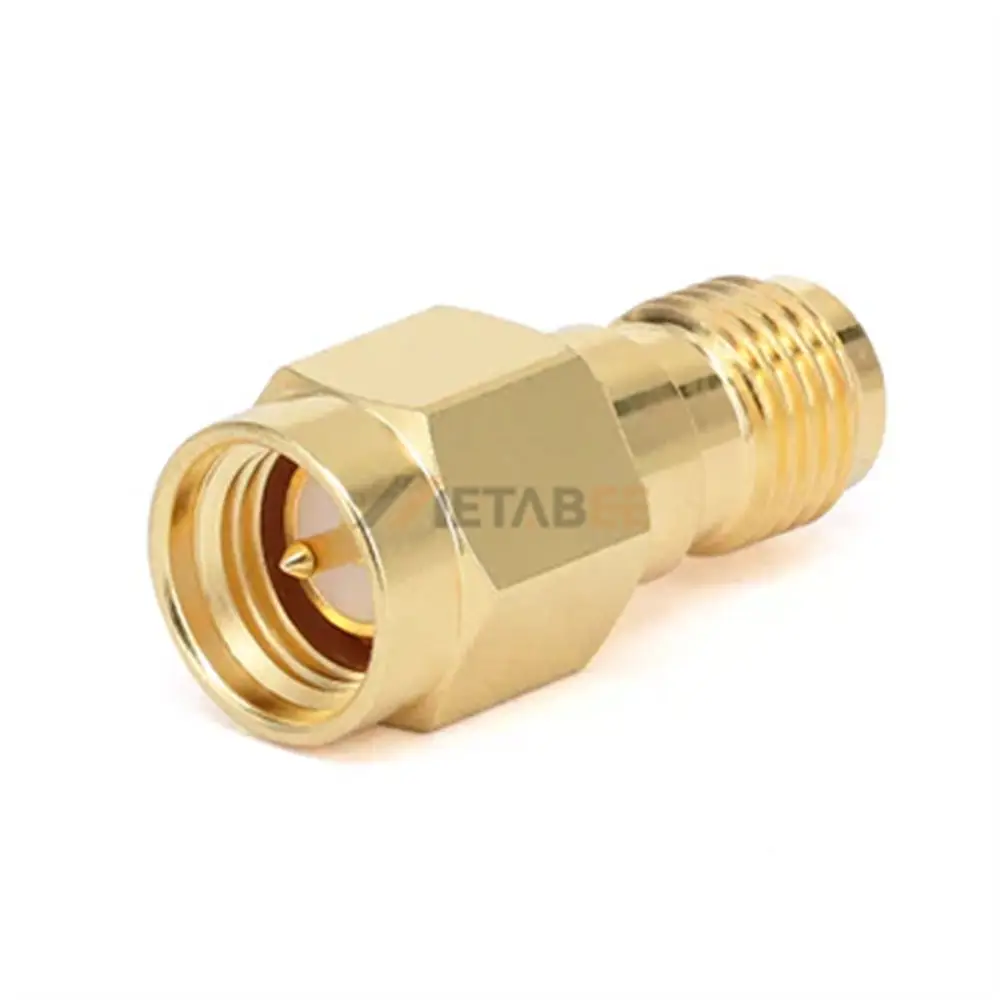

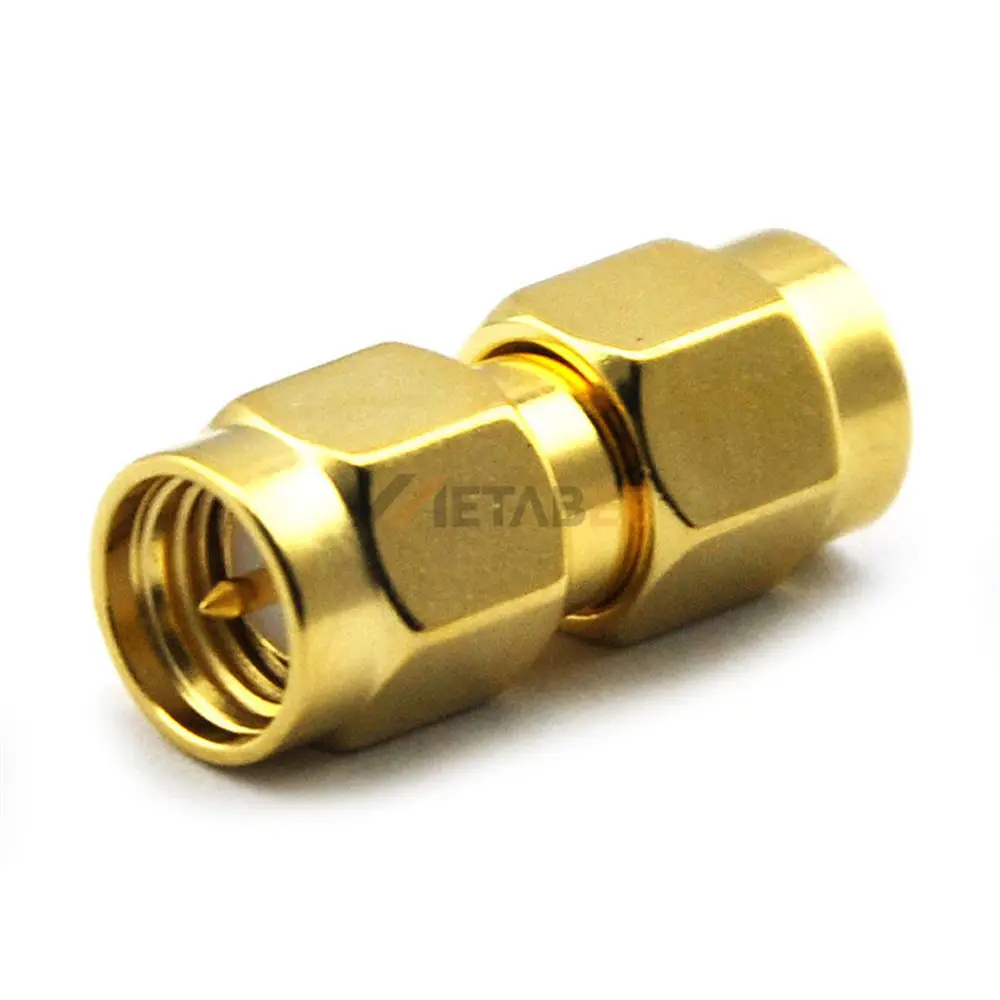

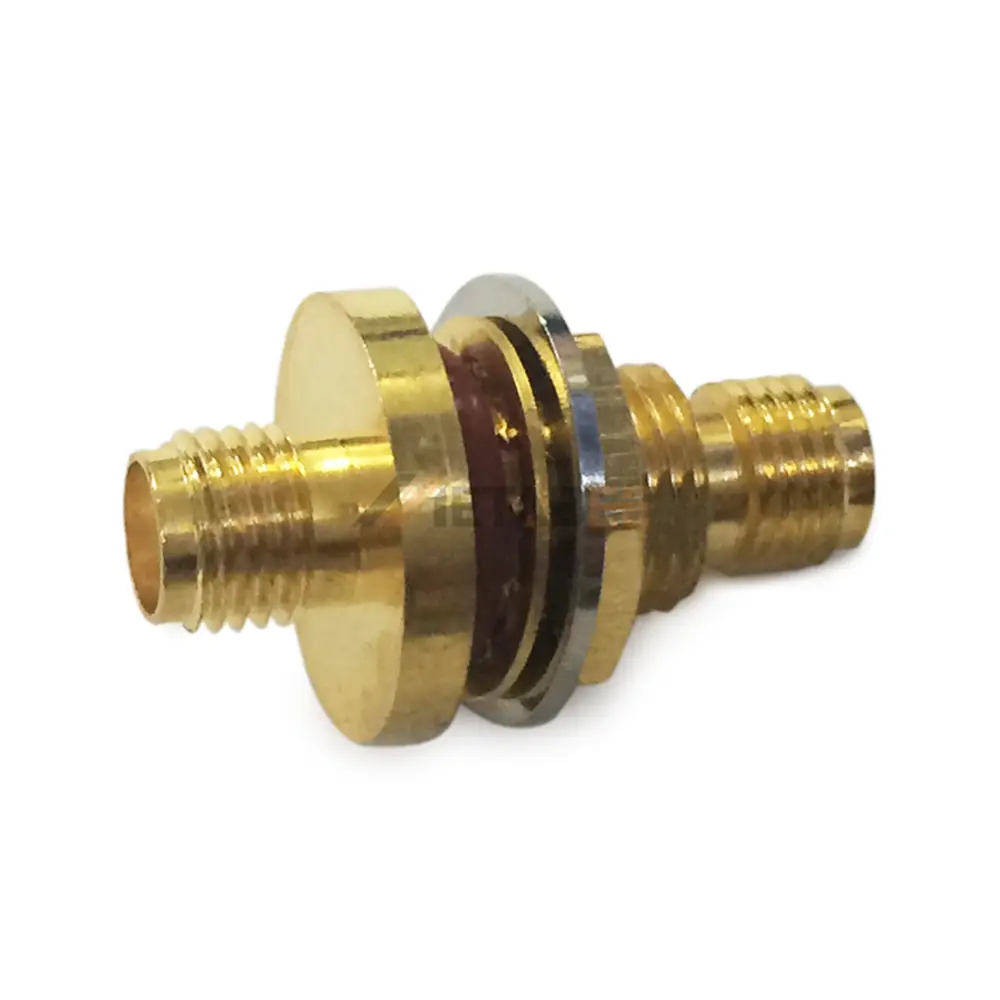

SMA to SMA Straight Adapter, DC-18 GHz
Introduction
The SMA to SMA adapter is a precision-engineered RF coaxial adapter designed for seamless SMA interface transitions in high-frequency systems. Featuring a straight configuration and 50-ohm impedance, this adapter ensures minimal signal reflection and consistent performance across the full DC to 18 GHz frequency range.
Built with high-quality brass bodies and finished with gold plating, both SMA connectors offer excellent conductivity and corrosion resistance. The adapter supports a VSWR of 1.25:1, ensuring optimal signal integrity for demanding RF and microwave applications. Its rugged construction and broad operating temperature range from -50°C to +165°C make it suitable for use in aerospace, telecom, and test instrumentation environments.
Key features:
- SMA to SMA straight configuration;
- Wide frequency range: DC to 18 GHz;
- 50 Ohm impedance for optimal RF matching;
- Gold-plated brass connectors for corrosion resistance;
- Low VSWR: 1.25:1 for minimal signal loss;
- Operating temperature: -50°C to +165°C;
- Durable build for reliable high-frequency performance.
Main Specifications:
| Product No: | YC-SMA-JJ, YC-SMA-JK, YC-SMA-KK, YC-SMA-KFK1, YC-SMA-KYK1 | |
| Product Series: | SMA Adapters | |
| Adapter Type: | SMA to SMA | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | SMA Connector | |
| Connector 1 – Body Material: | Brass | |
| Connector 1 – Body Plating: | Gold Plated | |
| Connector 2: | SMA Connector | |
| Connector 2 – Body Material: | Brass | |
| Connector 2 – Body Material: | Gold Plated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.25:1 | |
| Frequency Range: | DC-18 GHz | |
| Operating Temerature: | -50 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this SMA to SMA Straight Adapter:
2.92mm adapters are commonly used in RF and microwave applications where high-frequency performance and precision are required.
Here are some applications:
- Microwave Modules;
- Radar Systems;
- Satellite Communication;
- Broadcasting;
- 5G Technology;
- Adapters and Transitions;
- Military and Aerospace;
- Test and Measurement Equipment.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
