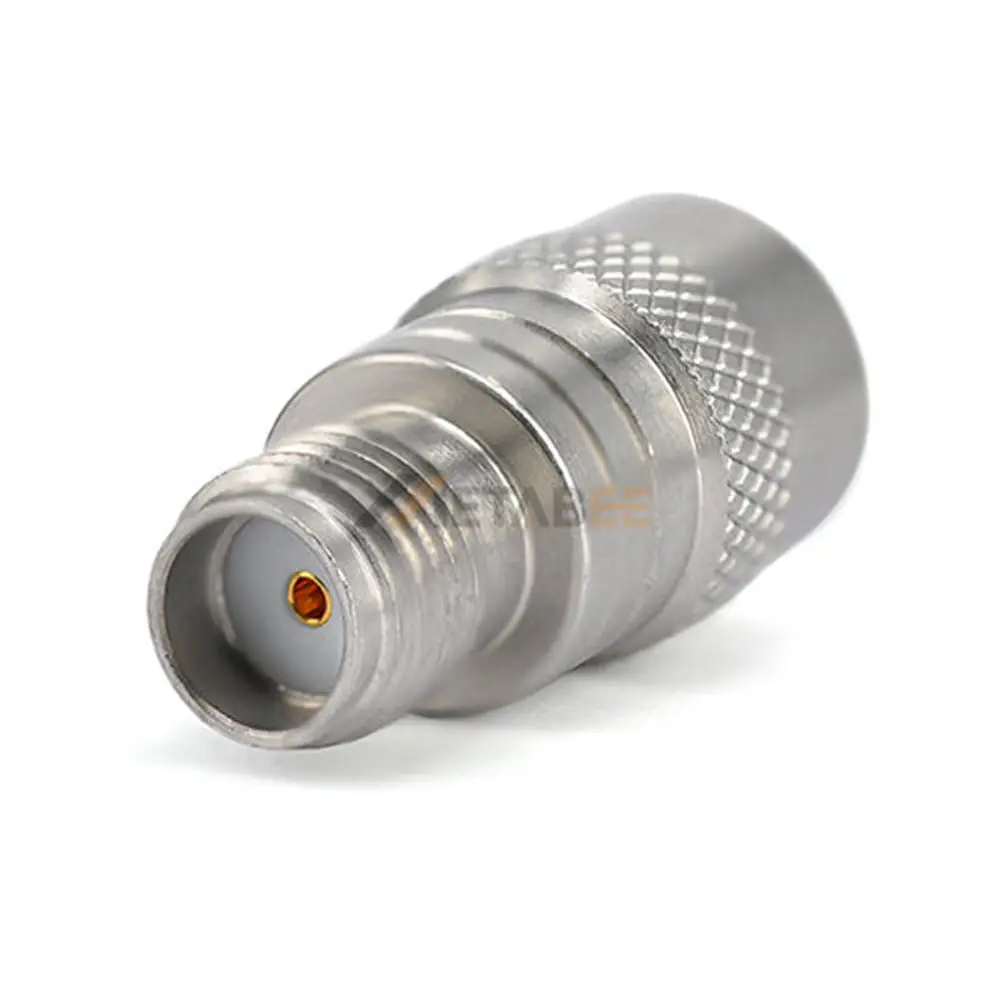

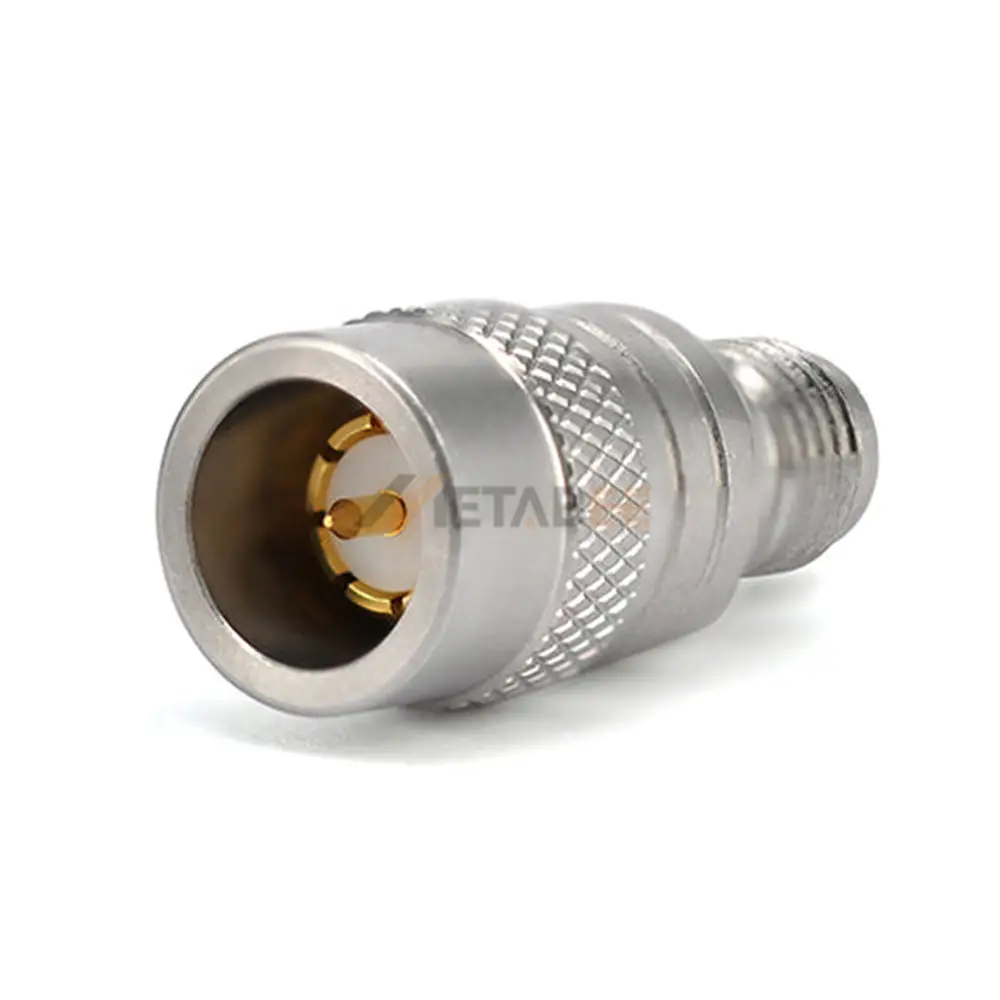

QSMA Male to SMA Female Adapter, DC-26.5 GHz
Introduction
The QSMA to SMA adapter is a high-performance RF connector designed for seamless signal transmission in applications ranging from DC to 26.5 GHz. Featuring a straight installation orientation, this adapter ensures reliable connectivity with a 50-ohm impedance match, minimizing signal loss. The robust stainless steel housing with a passivated finish on both connectors (QSMA Male and SMA Female) enhances durability and corrosion resistance, making it suitable for harsh environments. With a low VSWR of 1.2:1, it guarantees excellent signal integrity across its wide frequency range.
Ideal for telecommunications, aerospace, and test equipment, this adapter operates reliably in extreme temperatures from -55°C to 165°C. Its precision engineering ensures secure mating and stable performance, even under demanding conditions. Whether for lab testing or field deployment, this QSMA-to-SMA adapter delivers consistent, high-quality RF connectivity.
Key features:
- Wide Frequency Range: DC to 26.5 GHz;
- Low VSWR: 1.2:1 for minimal signal reflection;
- Durable Construction: Stainless steel housing with passivated finish;
- High Impedance Match: 50-ohm contact resistance;
- Broad Temperature Range: -55°C to 165°C operation;
- Secure Connection: Straight installation design;
- Versatile Compatibility: QSMA Male to SMA Female conversion.
Main Specifications:
| Product No: | YC-QSMA/SMA-JKS | |
| Product Series: | SMA Adapters | |
| Adapter Type: | QSMA to SMA | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | QSMA Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivation | |
| Connector 2: | SMA Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivation | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.2:1 | |
| Frequency Range: | DC-26.5 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this QSMA Male to SMA Female Adapter:
SMA adapters are incredibly versatile and widely used in the RF and microwave industry. They are a semi-precision coaxial connector, known for their compact size, excellent performance up to 18 GHz, and robust threaded coupling mechanism.
Here are some applications:
- General RF and Microwave Connections;
- Wireless Communication Systems;
- Test and Measurement Equipment;
- Radar Systems;
- Satellite Communications;
- Radio Amateur;
- Automotive Electronics.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
