2.92mm to SMP (GPO) Adapter, DC-40 GHz
Introduction

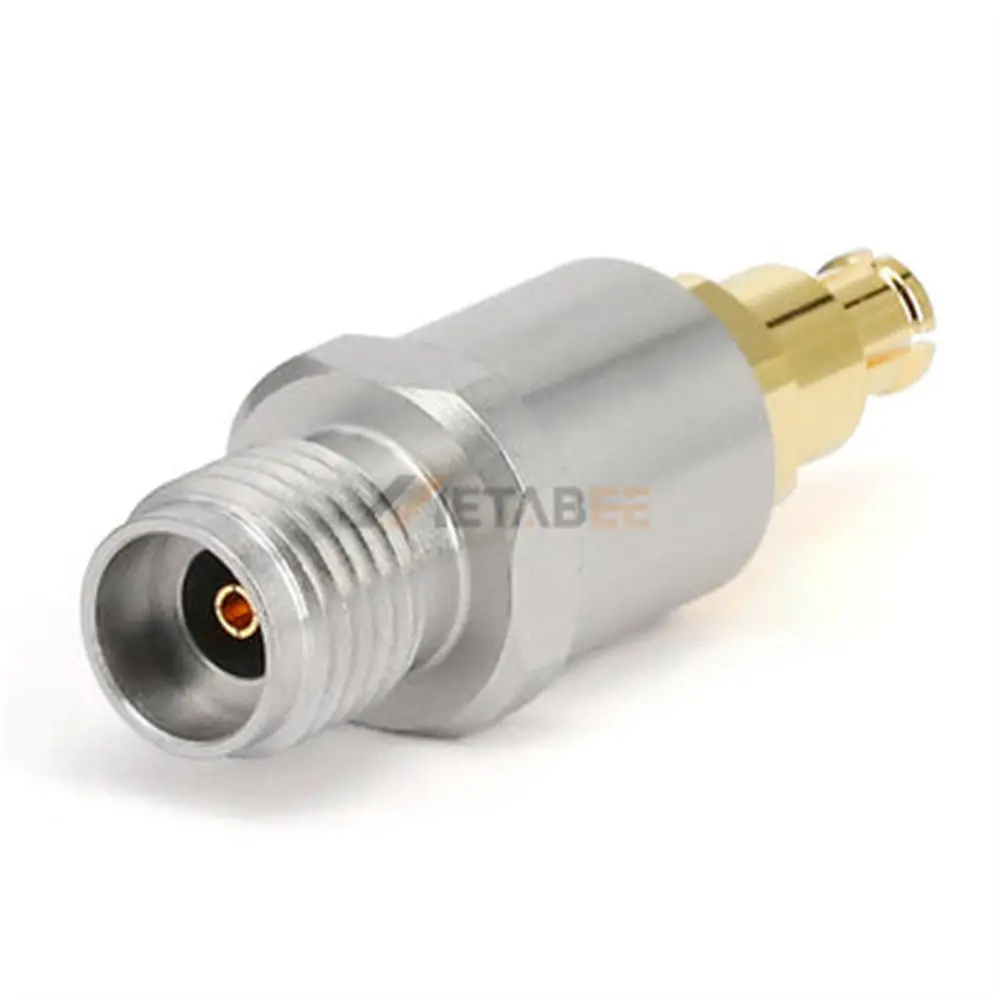

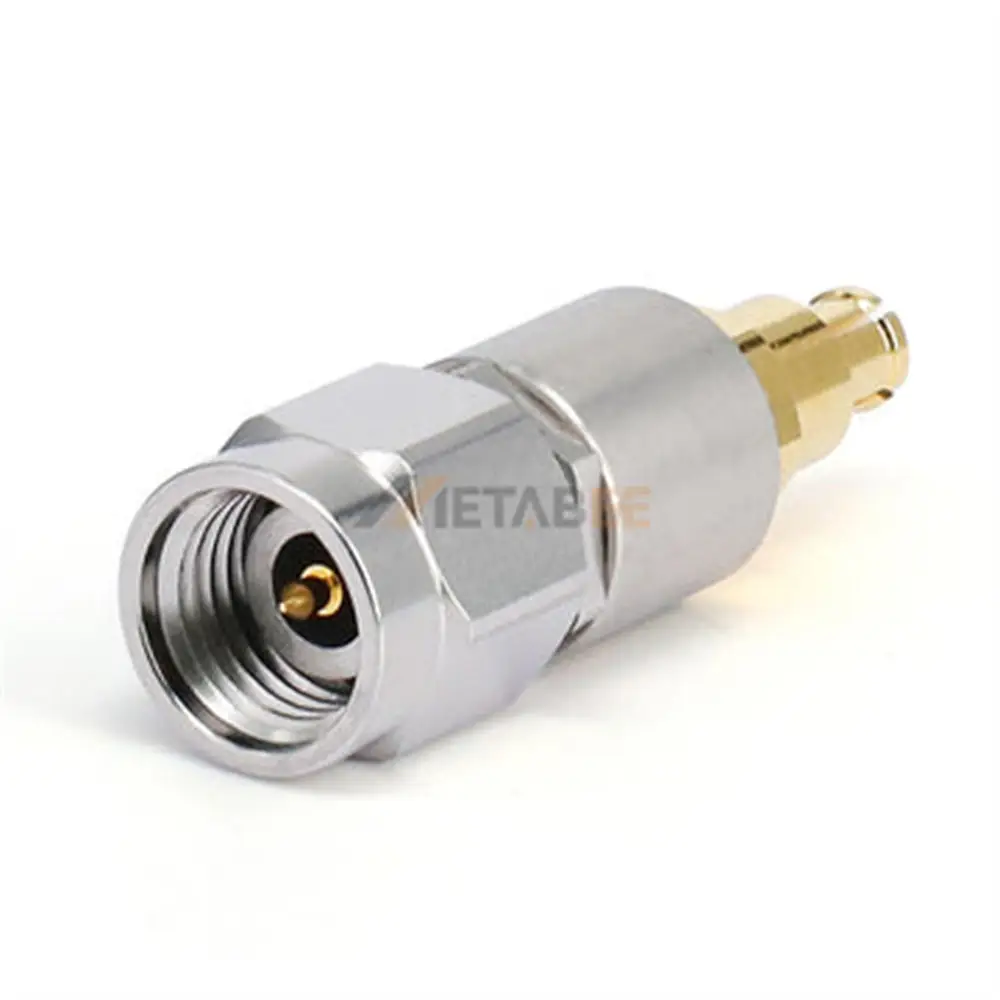

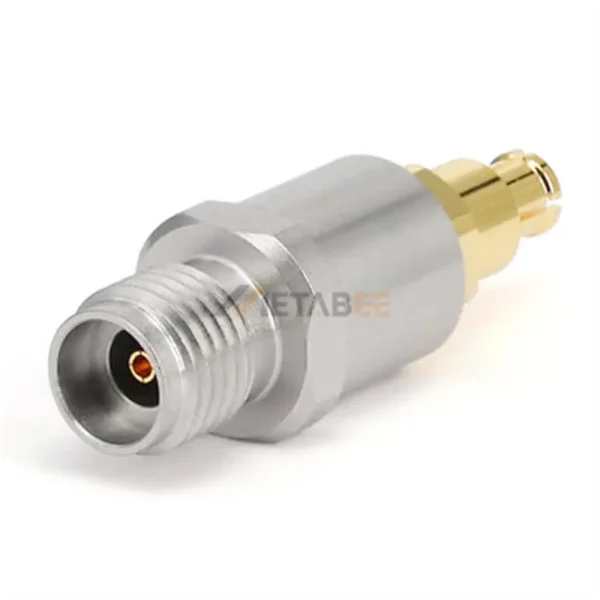

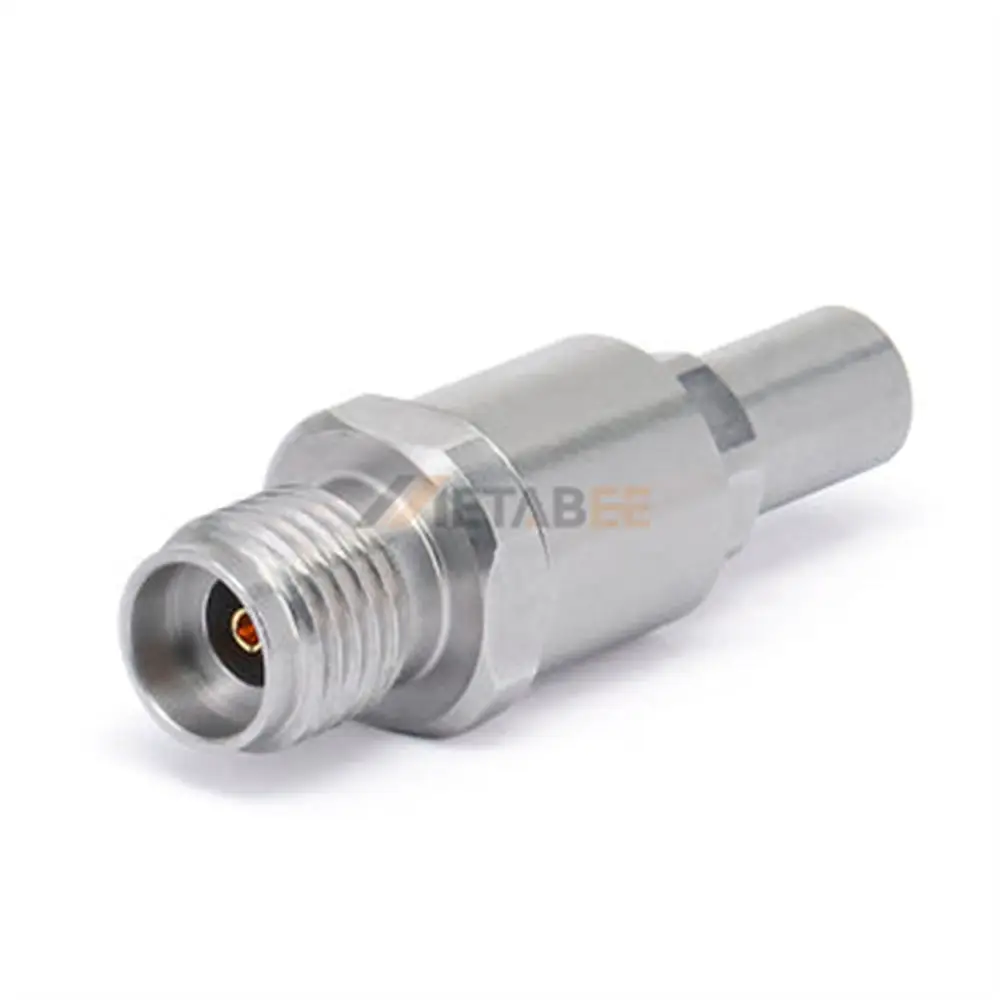

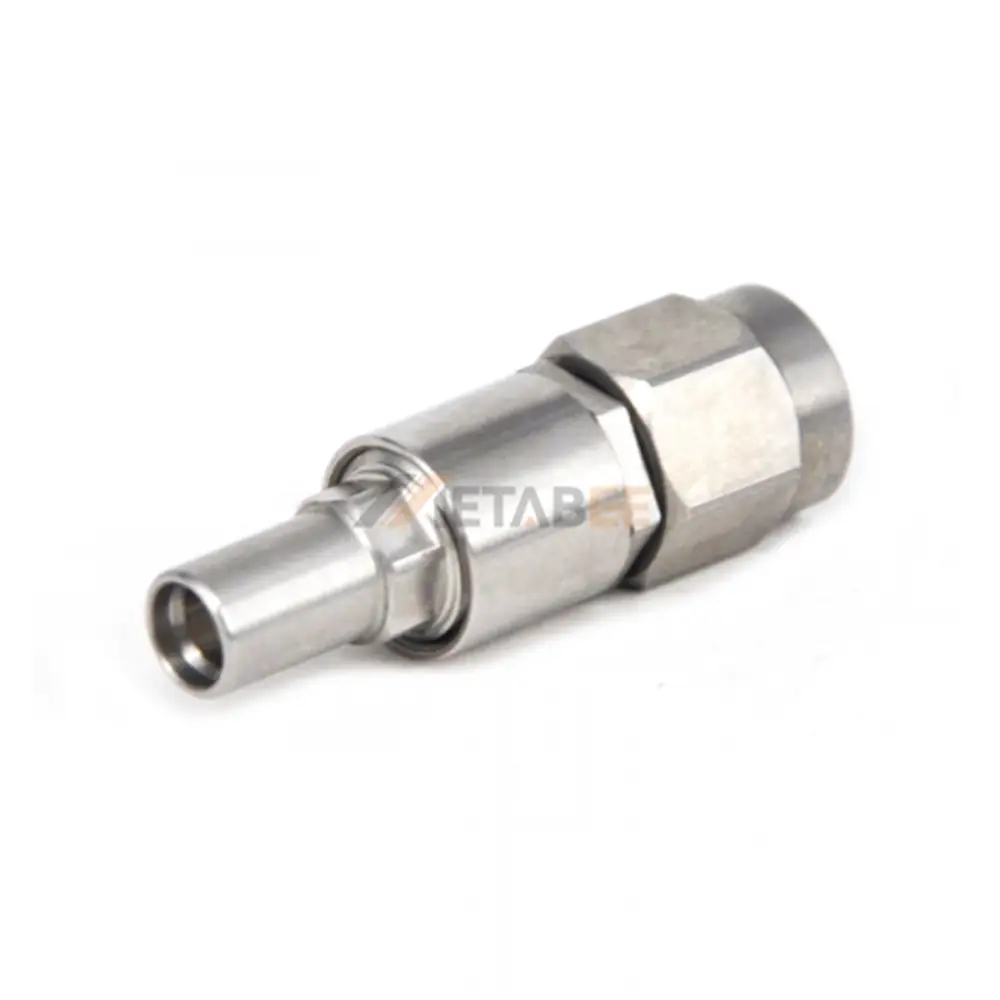

The 2.92mm to SMP (GPO) adapter is a high-performance RF interconnect solution designed for seamless signal transmission in demanding applications. This adapter features a 2.92mm connector (male/female) on one end and an SMP (GPO) connector on the other, ensuring reliable 50-ohm impedance matching for minimal signal loss. Constructed with stainless steel housings and passivated plating, it offers superior durability and corrosion resistance. With a straight installation orientation, this adapter is ideal for compact setups while maintaining excellent electrical performance.
Engineered for precision, this adapter operates across a broad frequency range of DC-40 GHz with a low VSWR of 1.25:1, ensuring stable signal integrity. Its robust design supports a wide operating temperature range of -50°C to 85°C, making it suitable for harsh environments. Whether used in telecommunications, aerospace, or test & measurement systems, this adapter delivers consistent, high-frequency performance.
Key features:
- 2.92mm to SMP (GPO) interface for versatile connectivity.
- 50-ohm impedance ensures minimal signal reflection.
- Stainless steel housing with passivated plating for durability.
- Straight orientation for easy integration.
- Low VSWR (1.25:1) for superior signal integrity.
- Wide frequency range (DC-40 GHz) supports high-speed applications.
- Extended temperature range (-50°C to 85°C) for harsh environments.
Main Specifications:
| Product No: | YC-2.92/GPO-JJ, YC-2.92/GPO-JK, YC-2.92/GPO-KJ, YC-2.92/GPO-KK | |
| Product Series: | 2.92mm Adapters | |
| Adapter Type: | 2.92mm to SMP | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | 2.92mm Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | SMP Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.25:1 | |
| Frequency Range: | DC-40 GHz | |
| Operating Temerature: | -50 ºC to +85 ºC | |
| Other Feature: | None |
Applications of this 2.92mm to SMP (GPO) Adapter:
2.92mm adapters are commonly used in RF and microwave applications where high-frequency performance and precision are required.
Here are some applications:
- Microwave Modules;
- Radar Systems;
- Satellite Communication;
- Broadcasting;
- 5G Technology;
- Adapters and Transitions;
- Military and Aerospace;
- Test and Measurement Equipment.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
