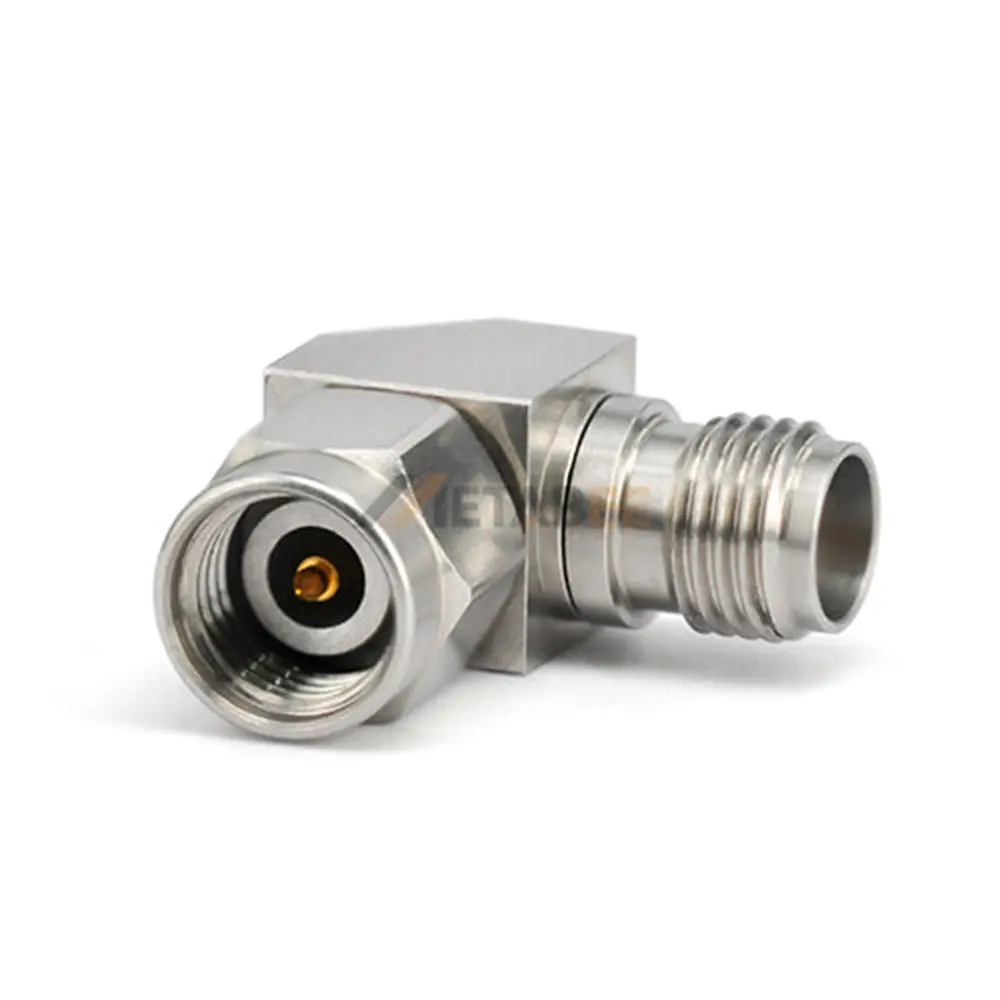

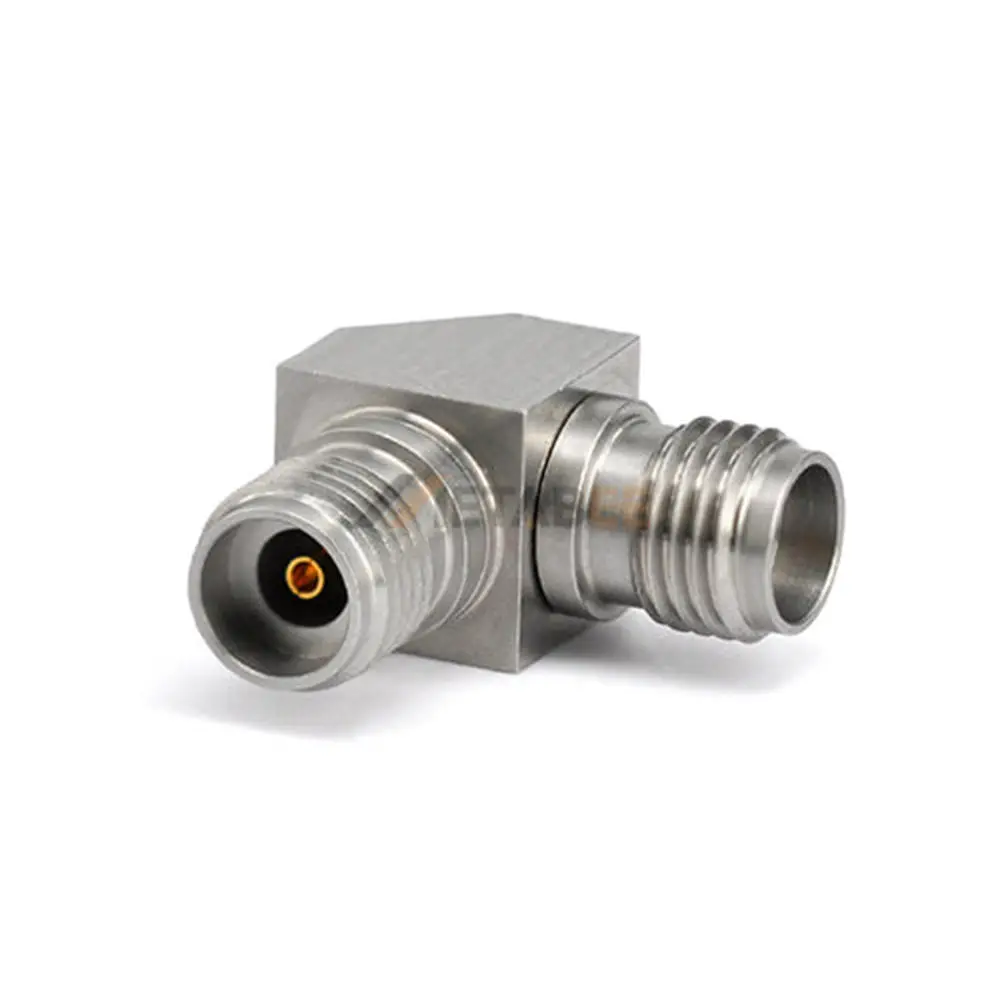

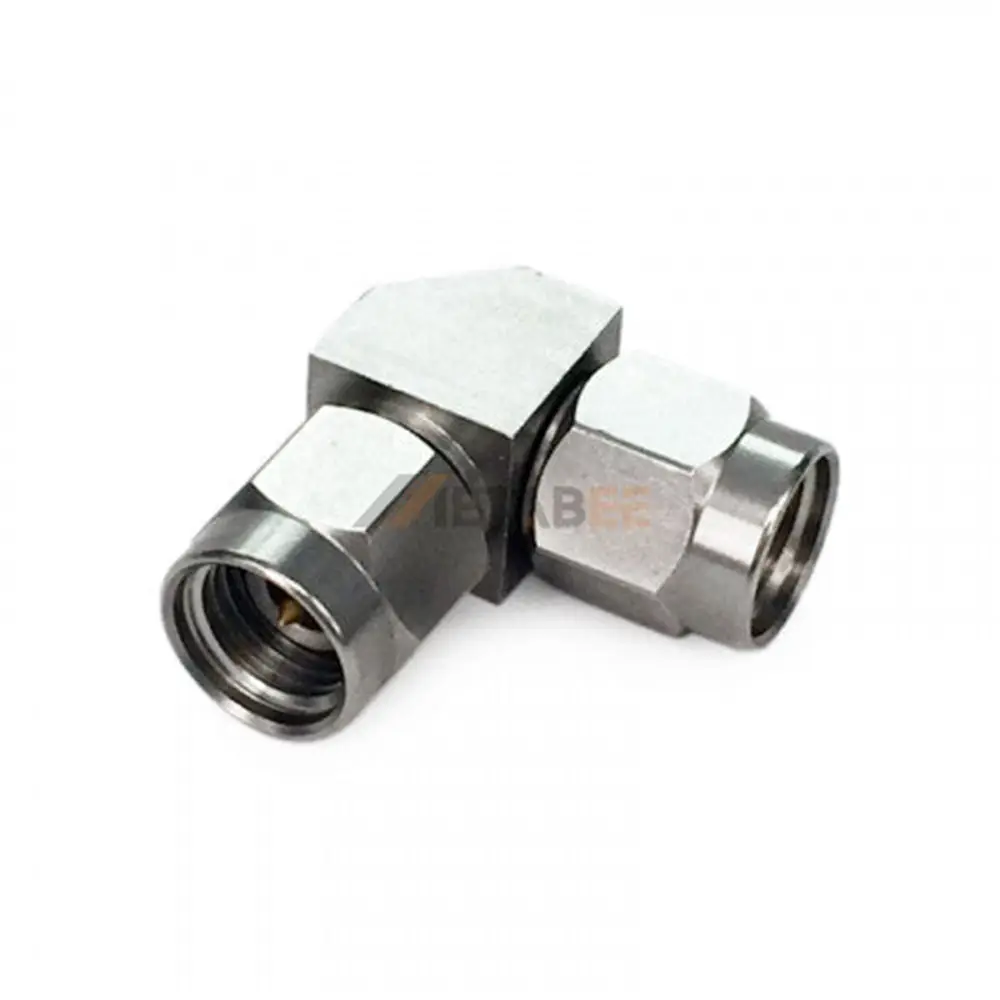

2.92mm to 2.92mm Right Angle Adapter, DC-40 GHz
Introduction
This high-performance 2.92mm to 2.92mm right angle adapter is engineered for demanding RF and microwave applications, offering exceptional signal integrity across a broad frequency range. With a DC-40 GHz frequency range and a low VSWR of 1.25:1, this adapter ensures reliable and efficient signal transmission. Its right-angle configuration provides crucial flexibility in tight spaces, making it an ideal solution for optimizing your system layout without compromising performance.
Crafted with precision, both connectors are made from durable passivated stainless steel, guaranteeing robust construction and excellent corrosion resistance for long-term reliability. The adapter maintains a 50 Ohm impedance, ensuring seamless integration into standard RF systems. Designed to withstand diverse environmental conditions, it operates flawlessly within a temperature range of -50°C to +85°C, making it suitable for a wide array of industrial and laboratory settings.
Key features:
- Frequency Range: DC-40 GHz
- Low VSWR: 1.25:1
- Impedance: 50 Ohms
- Connector Type: 2.92mm to 2.92mm
- Orientation: Right Angle
- Material: Passivated Stainless Steel
- Operating Temperature: -50°C to +85°C
Main Specifications:
| Product No: | YC-2.92-JWJS, YC-2.92-JWKS, YC-2.92-KWKS | |
| Product Series: | 2.92mm Adapters | |
| Adapter Type: | 2.92mm to 2.92mm | |
| Brand: | Metabee | |
| Orientation: | Right Angle | |
| Connector 1 | 2.92mm Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | 2.92mm Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.25:1 | |
| Frequency Range: | DC-40 GHz | |
| Operating Temerature: | -50 ºC to +85 ºC | |
| Other Feature: | None |
Applications of this 2.92mm to 2.92mm Right Angle Adapter:
2.92mm adapters are commonly used in RF and microwave applications where high-frequency performance and precision are required.
Here are some applications:
- Microwave Modules;
- Radar Systems;
- Satellite Communication;
- Broadcasting;
- 5G Technology;
- Adapters and Transitions;
- Military and Aerospace;
- Test and Measurement Equipment.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
