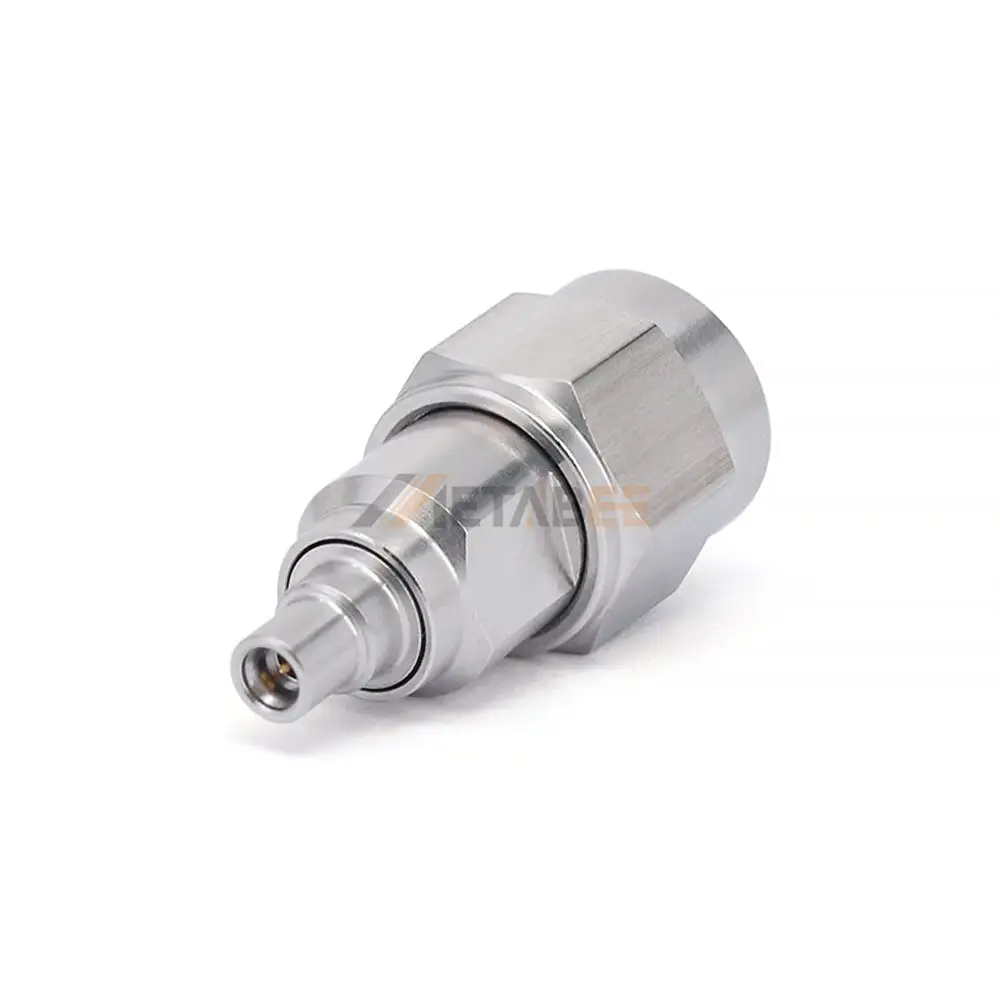

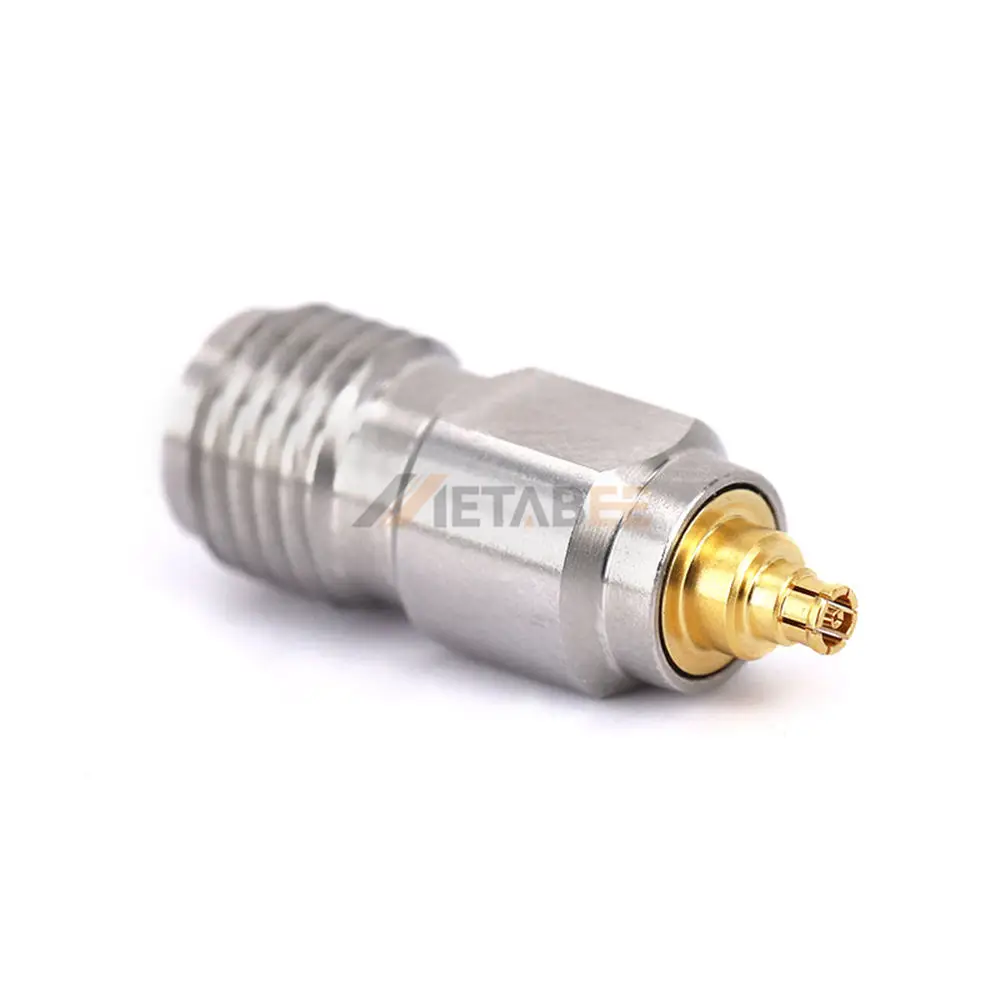

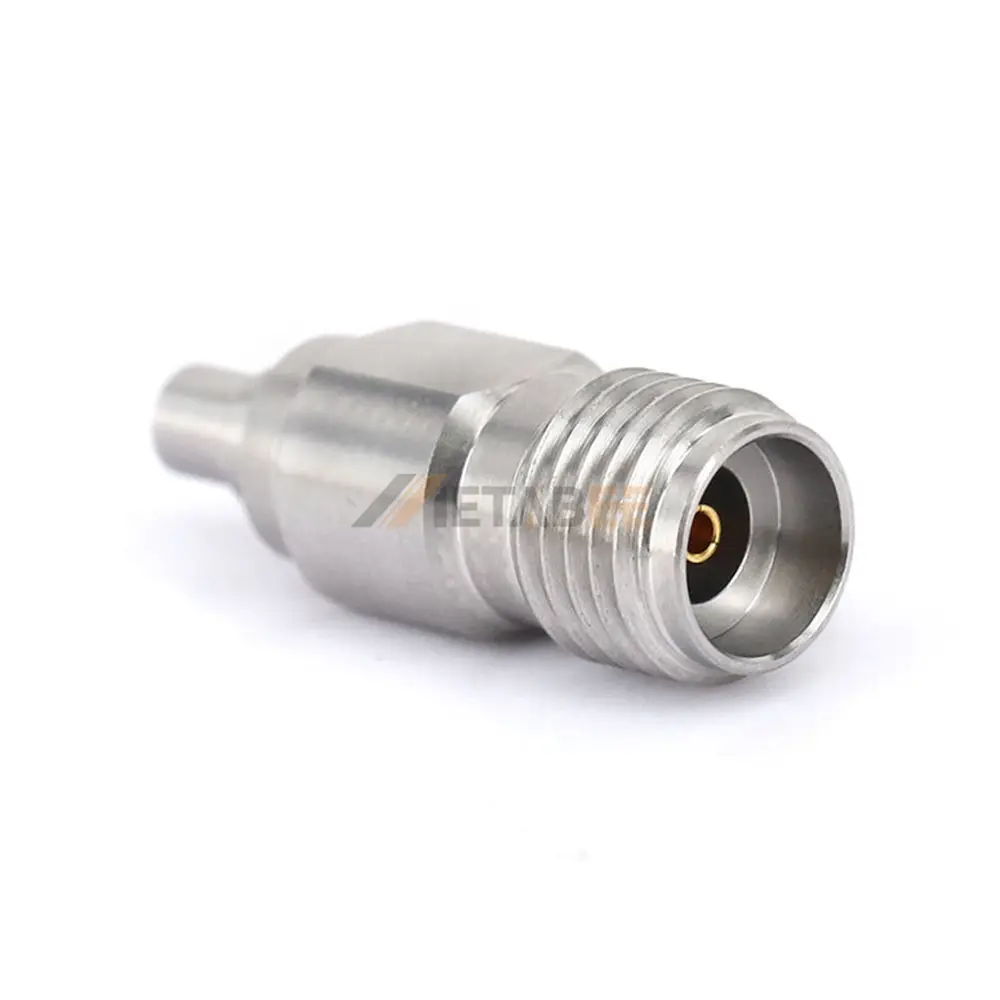

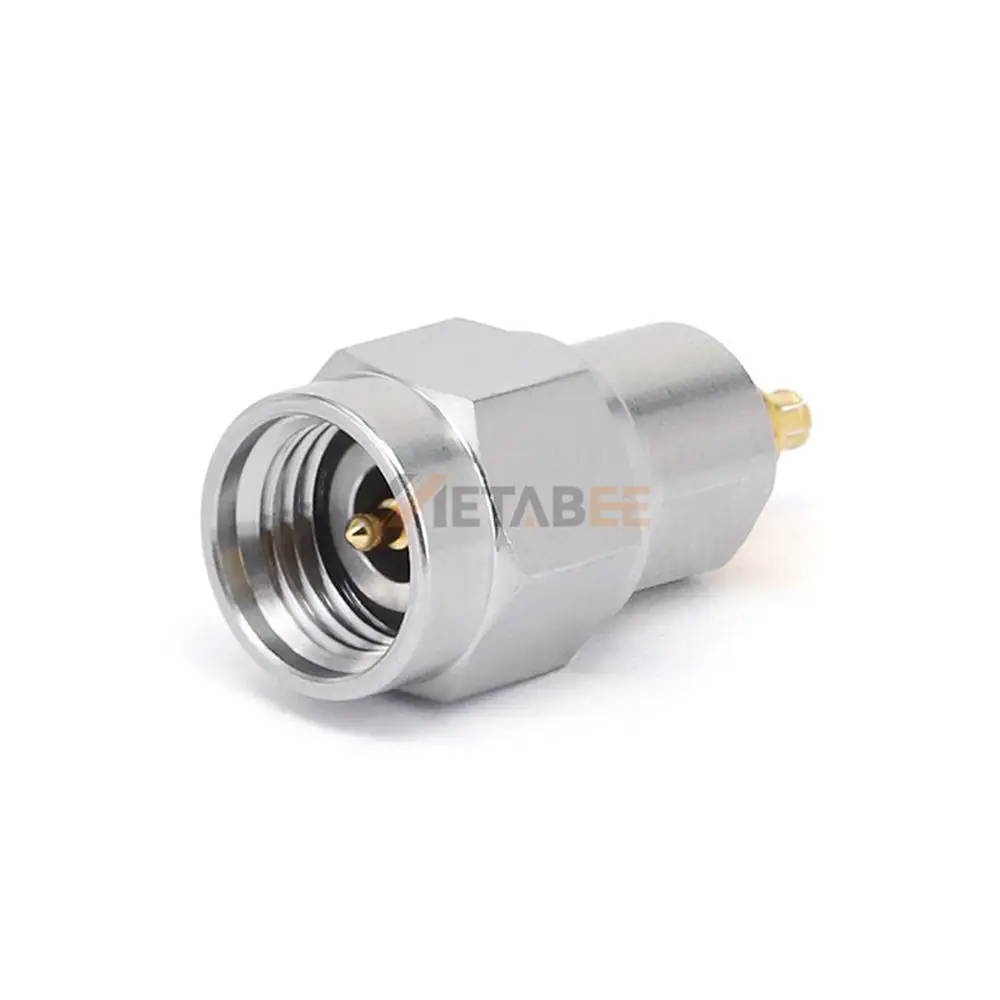

2.92mm to G3PO (SMPS) Adapter, DC-40 GHz
Introduction
The 2.92mm to G3PO (SMPS) adapter is a high-performance RF interconnect solution designed for precision signal transmission in demanding applications. Featuring a 50-ohm contact impedance, this adapter ensures minimal signal loss and optimal performance across a broad frequency range of DC-40 GHz. Its straight installation design provides easy integration into various systems, while the stainless steel housing with passivated plating enhances durability and corrosion resistance for long-term reliability in harsh environments.
With a low VSWR of 1.3:1, this adapter maintains signal integrity even at high frequencies. The 2.92mm connector on one end and the G3PO (SMPS) connector on the other ensure compatibility with industry-standard interfaces. Built to withstand operating temperatures from -55°C to 165°C, this adapter is ideal for aerospace, defense, telecommunications, and high-frequency test systems.
Key features:
- Broad Frequency Range: DC-40 GHz for versatile applications.
- Low VSWR (1.3:1): Ensures minimal signal reflection.
- 50-Ohm Impedance: Maintains consistent signal transmission.
- Stainless Steel Housing: Durable and corrosion-resistant.
- Passivated Plating: Enhances longevity in harsh conditions.
- Straight Installation: Easy and space-saving integration.
- Wide Temperature Range (-55°C to 165°C): Reliable in extreme environments.
Main Specifications:
| Product No: | YC-2.92/G3PO-JJ, YC-2.92/G3PO-JK, YC-2.92/G3PO-KJ, YC-2.92/G3PO-KK | |
| Product Series: | 2.92mm Adapters | |
| Adapter Type: | 2.92mm to SMPS | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | 2.92mm Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | SMP Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.3:1 | |
| Frequency Range: | DC-40 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this 2.92mm to G3PO (SMPS) Adapter:
2.92mm adapters are commonly used in RF and microwave applications where high-frequency performance and precision are required.
Here are some applications:
- Microwave Modules;
- Radar Systems;
- Satellite Communication;
- Broadcasting;
- 5G Technology;
- Adapters and Transitions;
- Military and Aerospace;
- Test and Measurement Equipment.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
