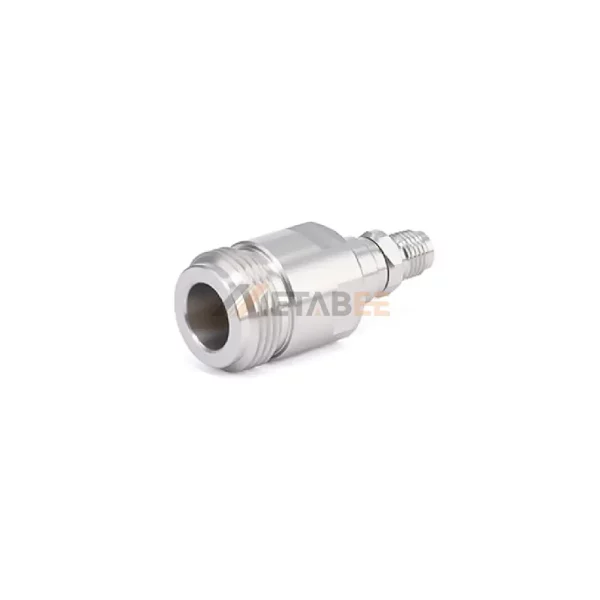

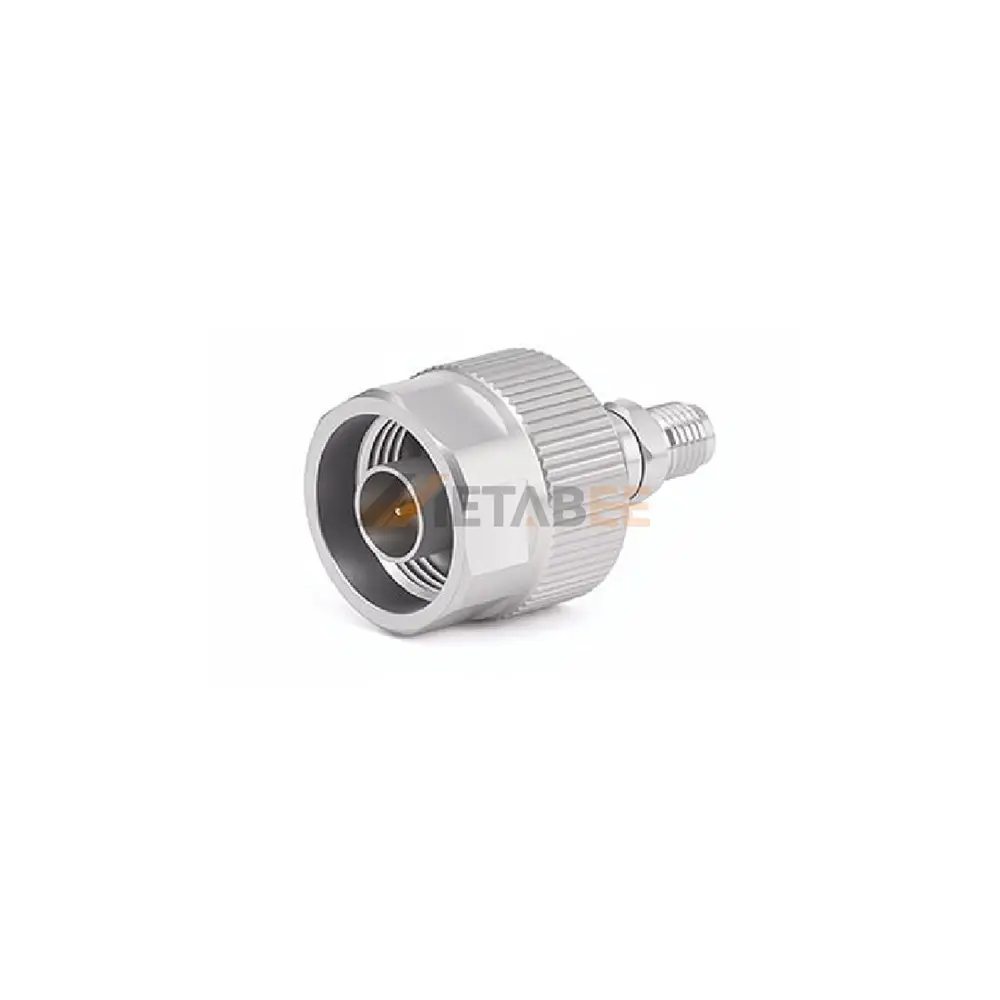

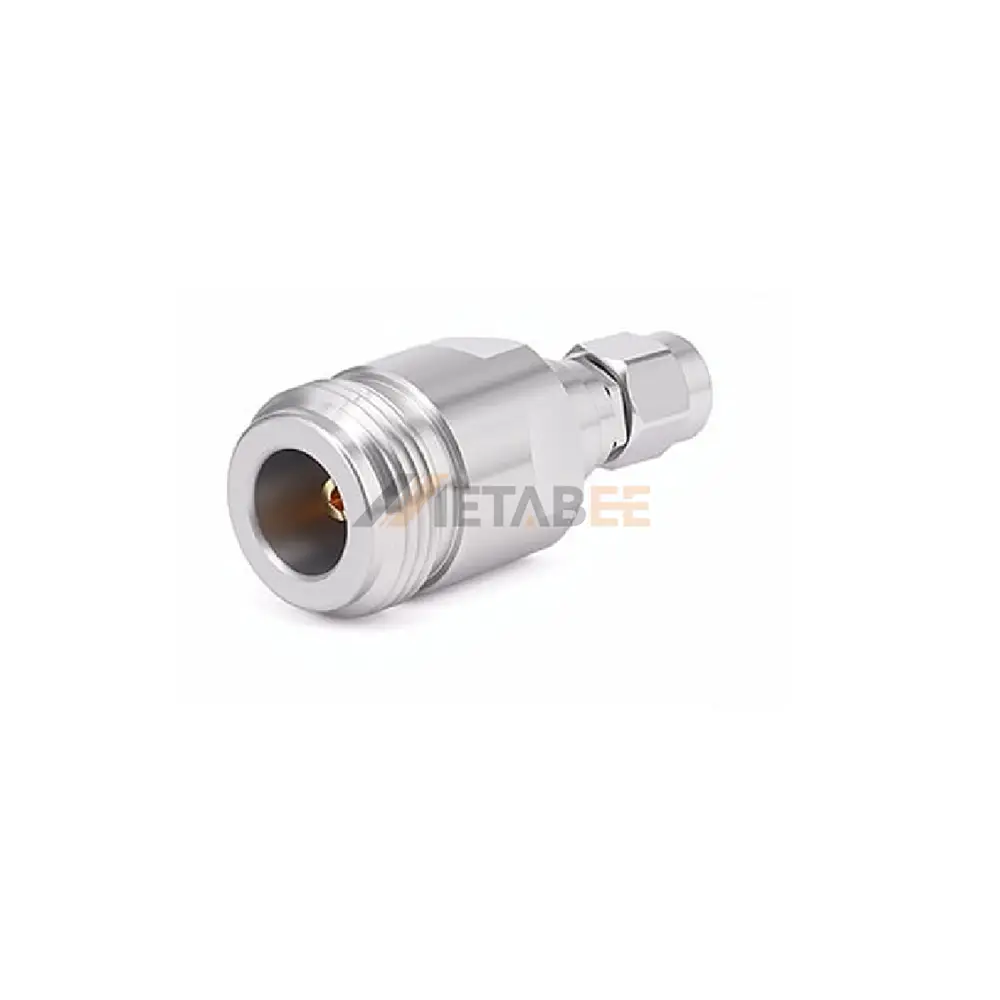

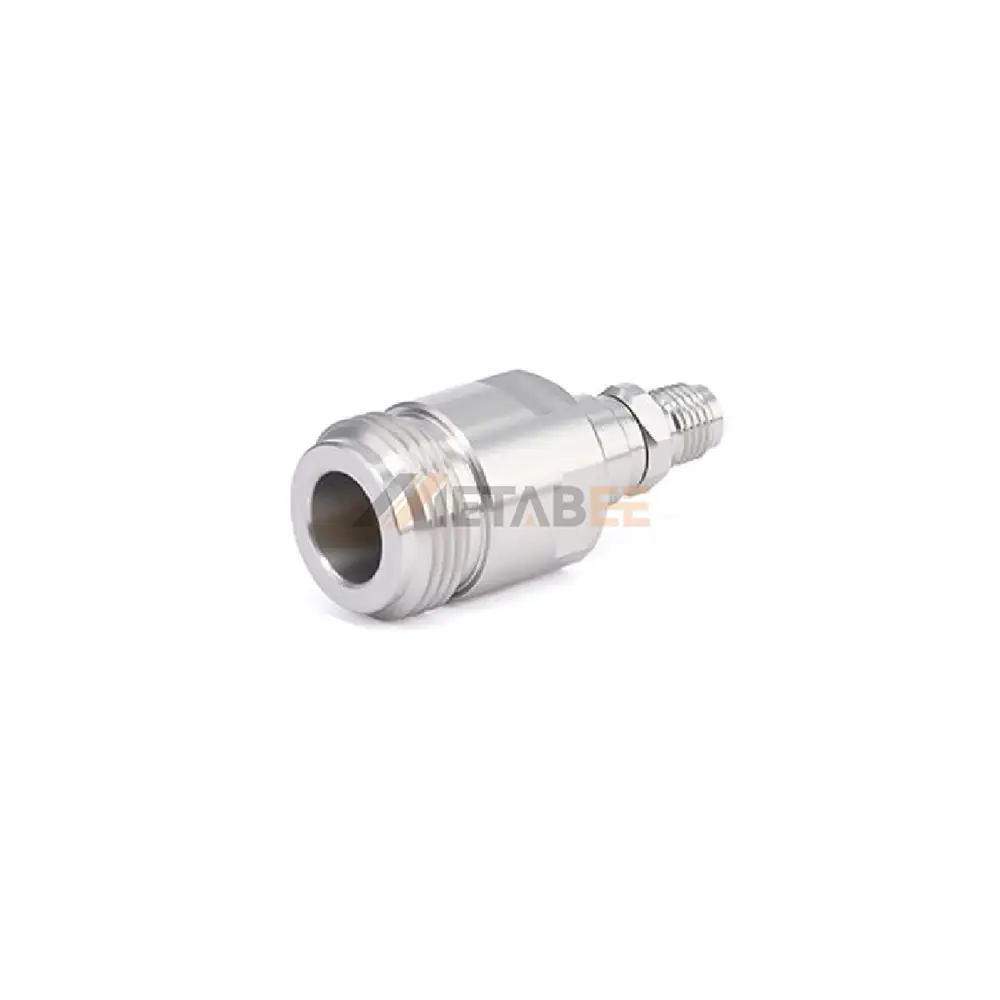

2.92mm to N-type Adapter, DC-18 GHz
Introduction
The 2.92mm to N-type adapter is a high-performance RF connector designed for seamless signal transmission between 2.92mm and N-type interfaces. With a precision-engineered 50-ohm impedance and a straight installation design, this adapter ensures minimal signal loss and superior electrical performance across a broad frequency range (DC-18 GHz). The stainless steel housing with passivated plating enhances durability and corrosion resistance, making it ideal for demanding environments.
Featuring a low VSWR of 1.09:1, this adapter guarantees reliable signal integrity in high-frequency applications. Its robust construction supports a wide operating temperature range from -50°C to 165°C, ensuring stable performance in extreme conditions. The 2.92mm connector and N-type connector provide secure, low-loss connections for test equipment, telecommunications, and aerospace systems.
Key features:
- 2.92mm to N-type RF adapter for seamless connectivity;
- 50-ohm impedance for optimal signal transmission;
- Stainless steel housing with passivated plating for durability;
- Straight installation design for easy integration;
- Low VSWR (1.09:1) for minimal signal reflection;
- Wide frequency range (DC-18 GHz) for versatile applications;
- Extended temperature range (-50°C to 165°C) for harsh environments.
Main Specifications:
| Product No: | YC-N/2.92-JJS-A, YC-N/2.92-JKS-A, YC-N/2.92-KJS-A, YC-N/2.92-KKS-A | |
| Product Series: | 2.92mm Adapters | |
| Adapter Type: | 2.92mm to N-type | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | 2.92mm Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | N-type Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.09:1 | |
| Frequency Range: | DC-18 GHz | |
| Operating Temerature: | -50 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this 2.92mm to N-type Adapter:
2.92mm adapters are commonly used in RF and microwave applications where high-frequency performance and precision are required.
Here are some applications:
- Microwave Modules;
- Radar Systems;
- Satellite Communication;
- Broadcasting;
- 5G Technology;
- Adapters and Transitions;
- Military and Aerospace;
- Test and Measurement Equipment.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
