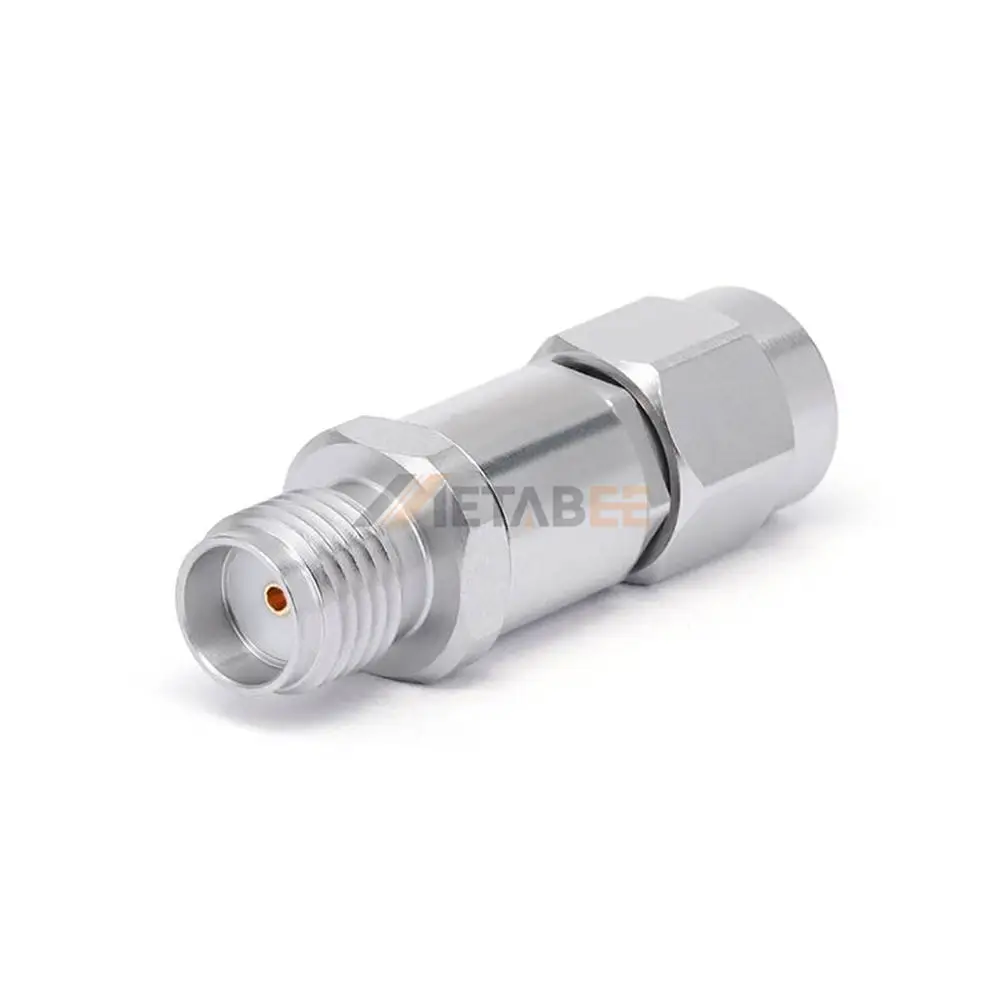

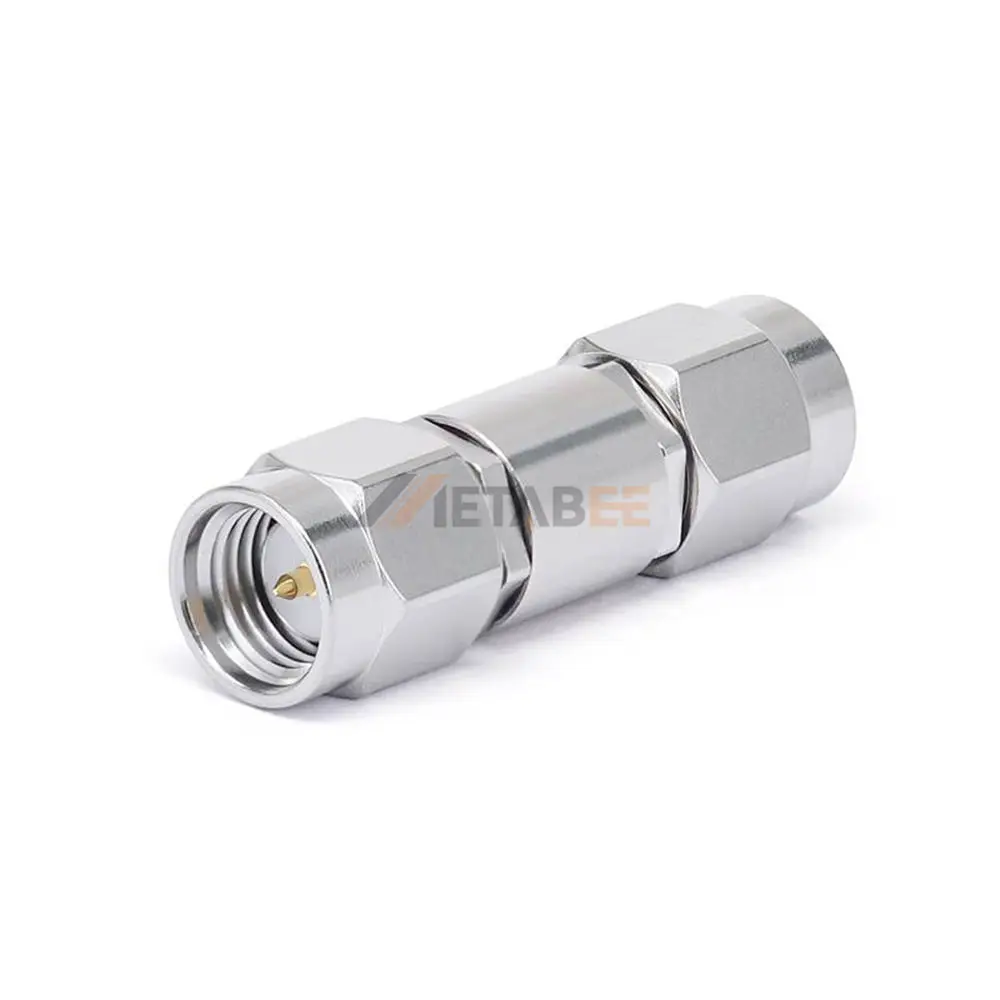

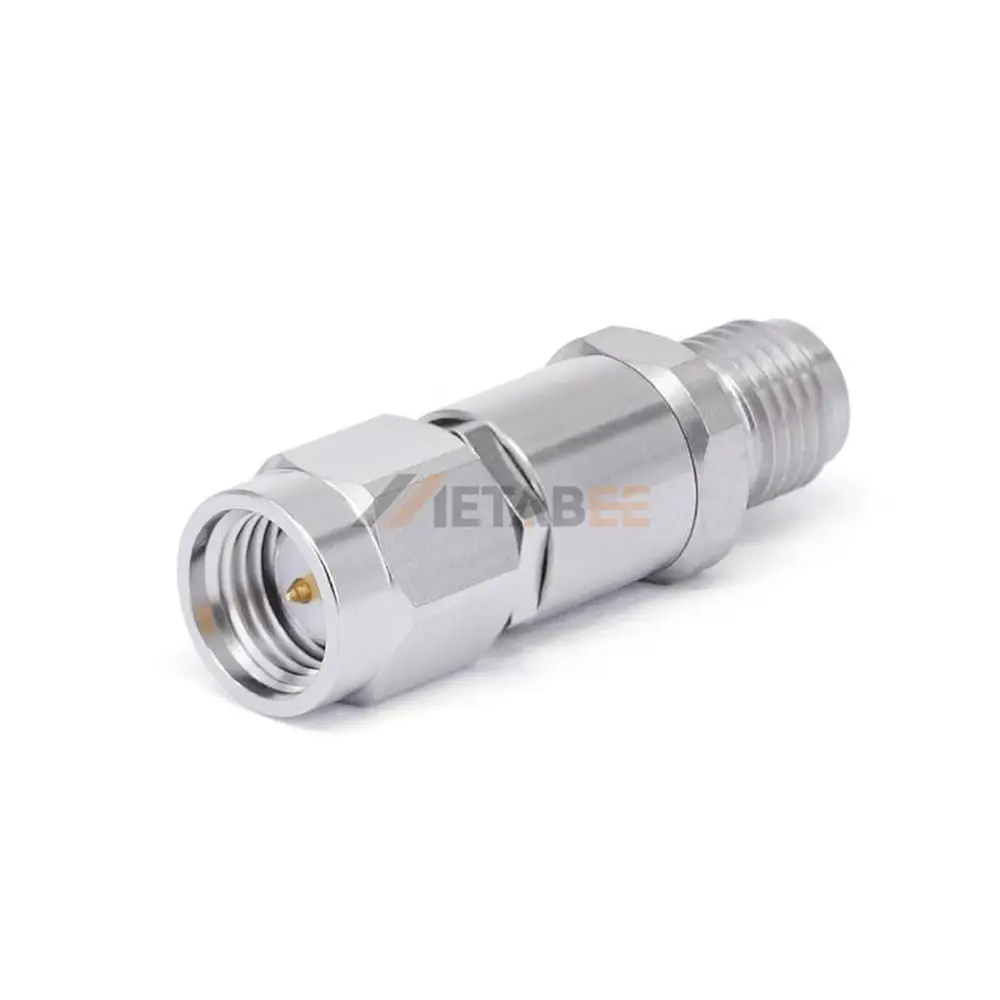

SMA to 2.92mm Adapter, DC-18 GHz
Introduction
This high-performance SMA to 2.92mm right-angle adapter is engineered for precision and reliability in demanding RF and microwave applications. It facilitates a seamless transition between SMA and 2.92mm interfaces, ensuring consistent 50-ohm impedance for optimal signal integrity. The adapter operates efficiently across a broad frequency spectrum, from DC up to 18 GHz, making it a versatile component for a wide range of systems, including test and measurement setups, satellite communications, and aerospace engineering.
Constructed for durability and longevity, both the SMA and 2.92mm connectors feature robust stainless steel bodies with a passivated finish. This provides excellent resistance to corrosion and wear, ensuring stable performance even in harsh environments. The adapter boasts a low Voltage Standing Wave Ratio (VSWR) of 1.15:1, minimizing signal reflection and loss. Its wide operating temperature range, from -50°C to +85°C, guarantees dependable operation under extreme thermal conditions. The right-angle configuration is ideal for installations where space is limited or a specific cable routing is required.
Key features:
- Broad Frequency Range: Excellent performance from DC to 18 GHz.
- Low VSWR: 1.15:1 for minimal signal reflection and superior integrity.
- Right-Angle Design: Ideal for compact installations and cable management.
- Durable Construction: Stainless steel body with a passivated finish for corrosion resistance.
- Wide Temperature Range: Reliable operation from -50°C to +85°C.
- Precision Impedance: Maintains a consistent 50 Ohm impedance.
- High-Quality Transition: Seamlessly adapts SMA connectors to 2.92mm (K) connectors.
Main Specifications:
| Product No: | YC-SMA/2.92-JJS-A, YC-SMA/2.92-JKS-A, YC-SMA/2.92-KJS-A，YC-SMA/2.92-KKS-A | |
| Product Series: | 2.92mm Adapters | |
| Adapter Type: | SMA to 2.92mm | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | SMA Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | 2.92mm Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.15:1 | |
| Frequency Range: | DC-18 GHz | |
| Operating Temerature: | -50 ºC to +85 ºC | |
| Other Feature: | None |
Applications of this SMA to 2.92mm Adapter:
2.92mm adapters are commonly used in RF and microwave applications where high-frequency performance and precision are required.
Here are some applications:
- Microwave Modules;
- Radar Systems;
- Satellite Communication;
- Broadcasting;
- 5G Technology;
- Adapters and Transitions;
- Military and Aerospace;
- Test and Measurement Equipment.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
