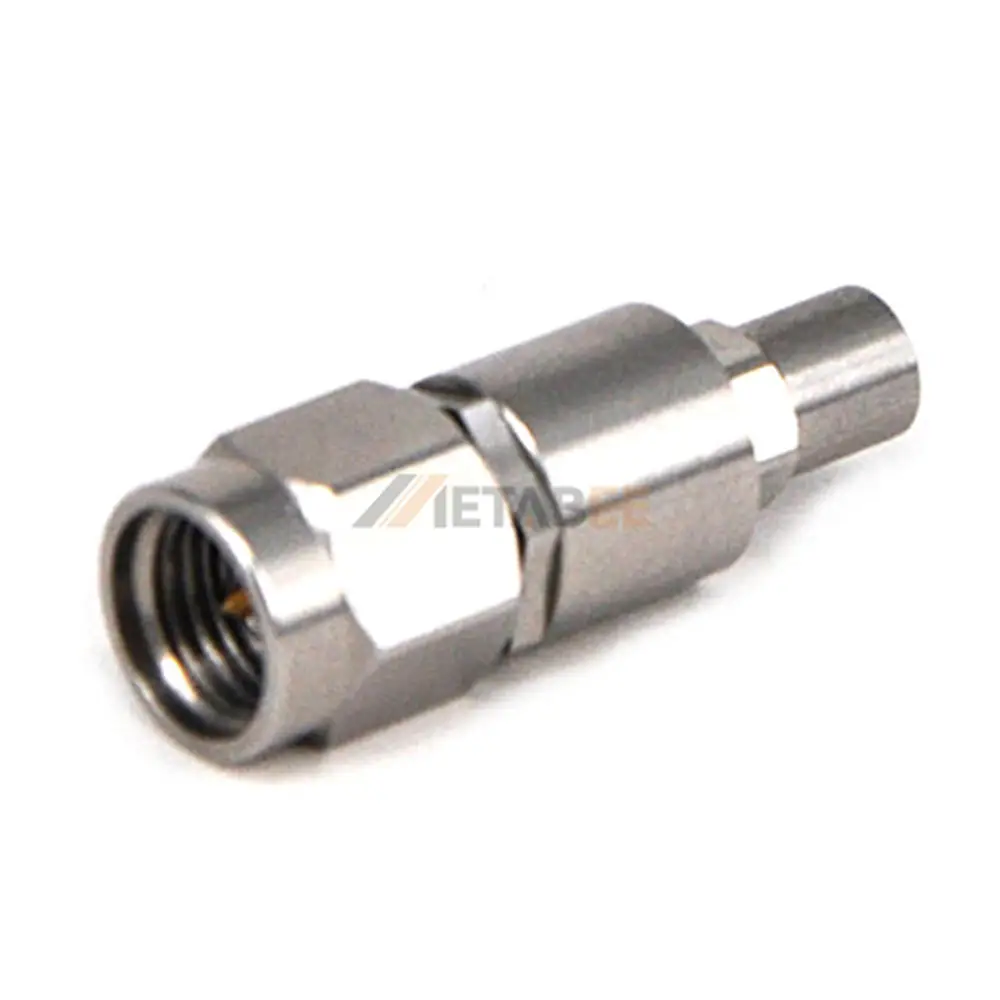

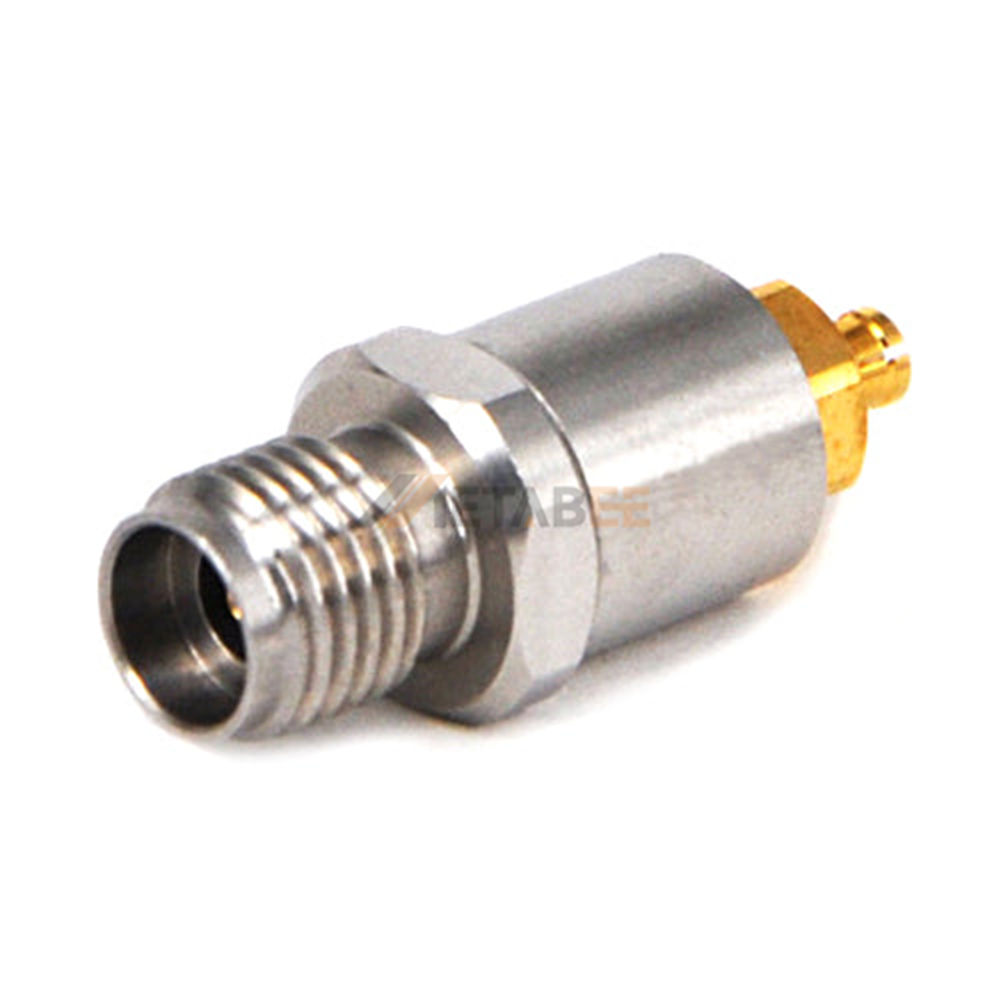

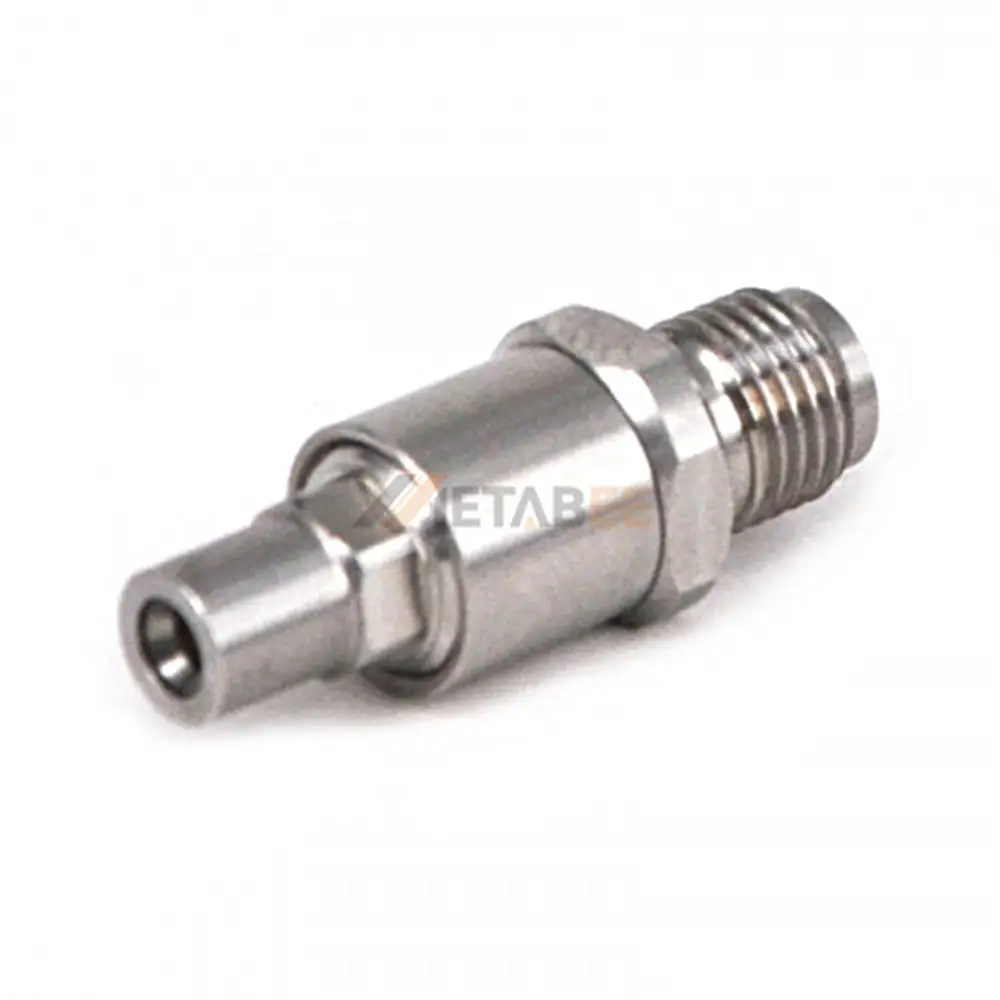

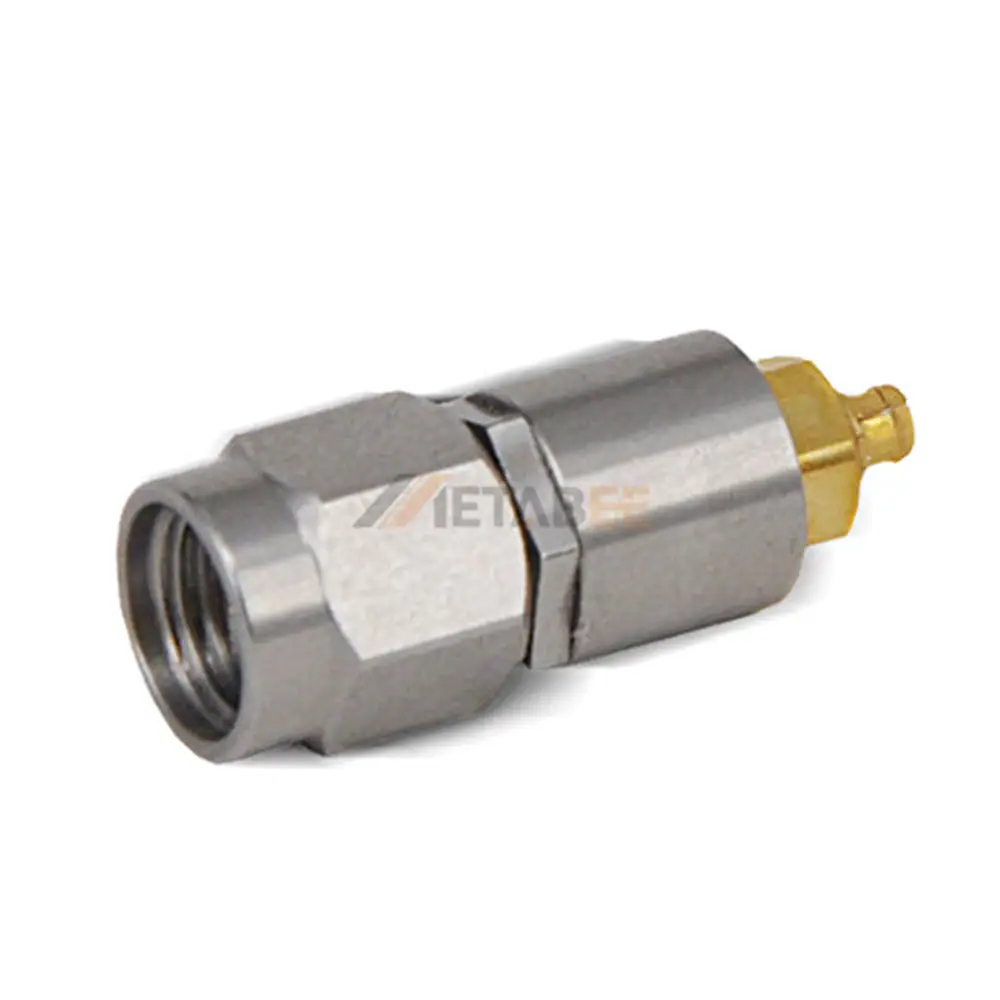

2.92mm to Mini-SMP (GPPO) Adapter, DC-40 GHz
Introduction
This high-performance 2.92mm to Mini-SMP (GPPO) adapter is engineered for precision and reliability in demanding RF and microwave applications. It facilitates a seamless transition between 2.92mm and Mini-SMP connector interfaces, ensuring robust performance for test and measurement setups, satellite communications, and other high-frequency systems. With an operational frequency range extending from DC up to 40 GHz, this adapter is ideal for cutting-edge applications where signal integrity is paramount.
Constructed for durability and optimal electrical performance, the adapter features a straight mounting orientation. Both the 2.92mm and Mini-SMP (GPPO) connectors are housed in rugged, stainless steel bodies with a passivated finish for superior corrosion resistance and longevity. The meticulous design ensures a low Voltage Standing Wave Ratio (VSWR) of 1.25:1, minimizing signal reflection and loss. Operating flawlessly across a wide temperature range from -50°C to +85°C, this adapter provides consistent and repeatable results in any environment.
Key features:
- Broad Frequency Range: DC to 40 GHz;
- Excellent VSWR: 1.25:1 Maximum;
- Standard Impedance: 50 Ohm;
- Durable Construction: Stainless steel body with passivated finish;
- Connector Series: 2.92mm to Mini-SMP (GPPO);
- Wide Operating Temperature: -50°C to +85°C;
- Mounting Style: Straight.
Main Specifications:
| Product No: | YC-2.92/GPPO-JJ, YC-2.92/GPPO-JK, YC-2.92/GPPO-KJ, YC-2.92/GPPO-KK | |
| Product Series: | 2.92mm Adapters | |
| Adapter Type: | 2.92mm to Mini-SMP | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | 2.92mm Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | Mini-SMP Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.25:1 | |
| Frequency Range: | DC-40 GHz | |
| Operating Temerature: | -50 ºC to +85 ºC | |
| Other Feature: | None |
Applications of this 2.92mm to Mini-SMP (GPPO) Adapter:
2.92mm adapters are commonly used in RF and microwave applications where high-frequency performance and precision are required.
Here are some applications:
- Microwave Modules;
- Radar Systems;
- Satellite Communication;
- Broadcasting;
- 5G Technology;
- Adapters and Transitions;
- Military and Aerospace;
- Test and Measurement Equipment.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
