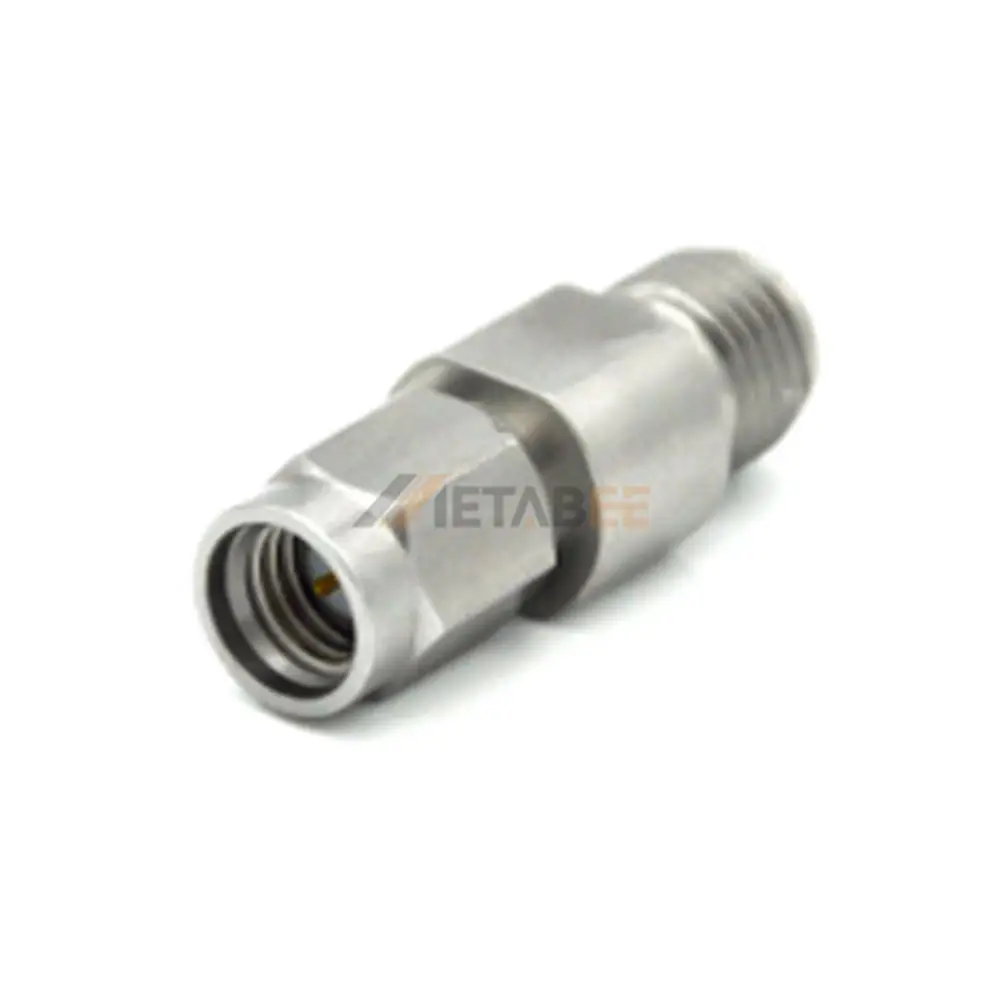

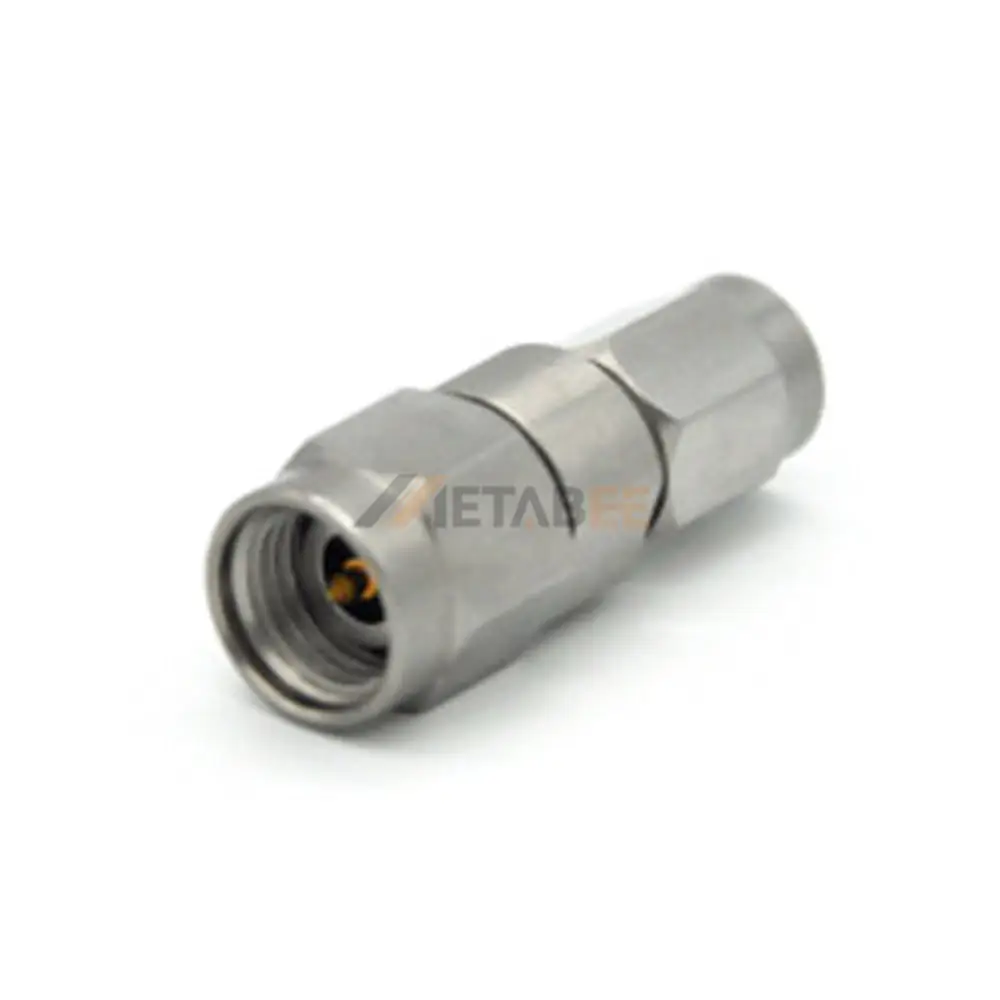

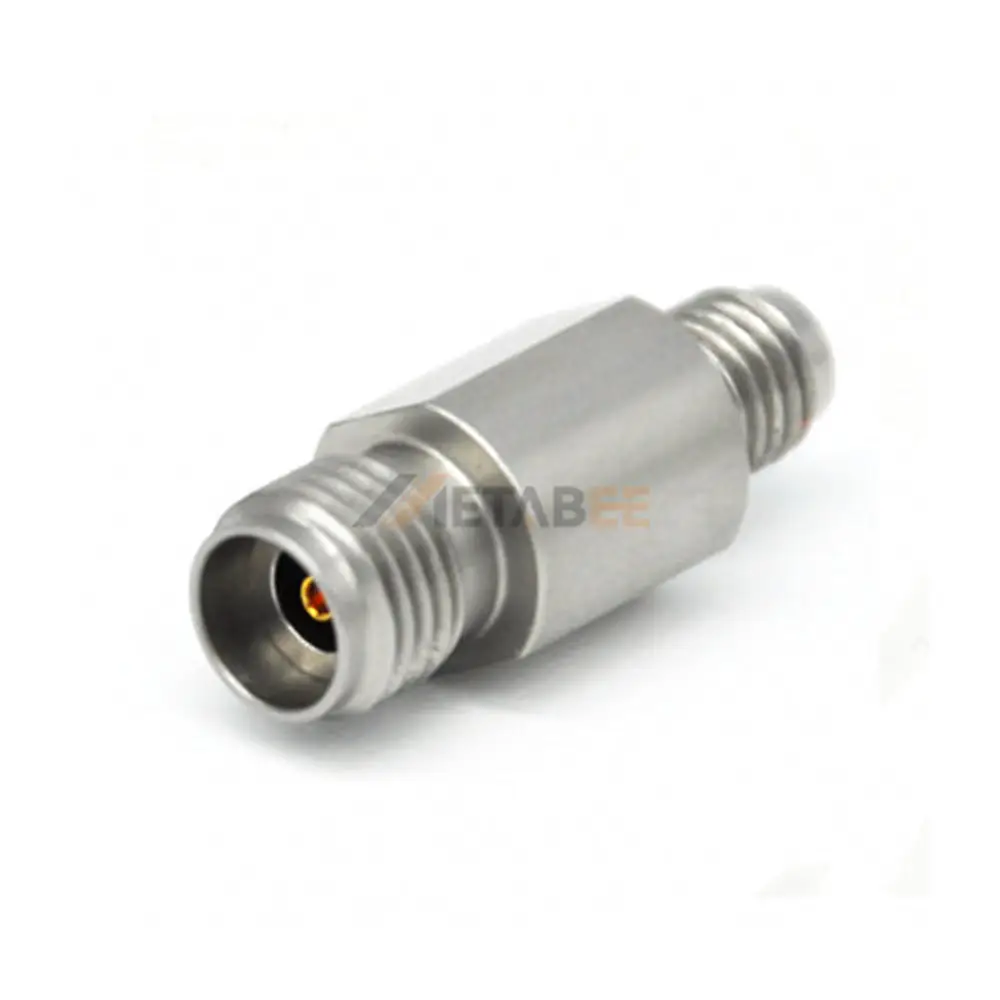

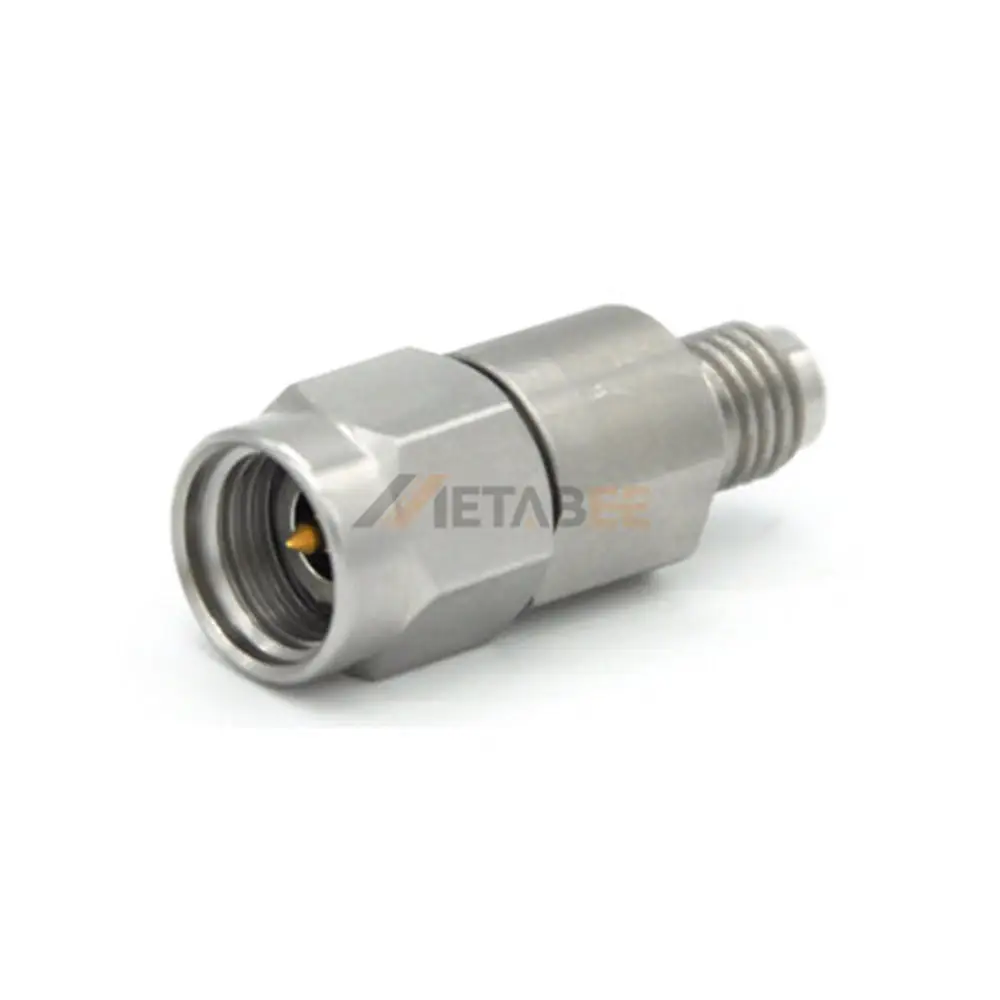

2.92mm to SSMA Adapter, DC-40 GHz
Introduction
The 2.92mm to SSMA adapter is a high-performance RF interconnect solution designed for precision signal transmission in demanding applications. Featuring a 50-ohm contact impedance, this straight adapter ensures minimal signal loss with an impressive VSWR of 1.20:1 across a broad frequency range of DC to 40 GHz. The robust stainless steel housing with passivated plating enhances durability and corrosion resistance, making it suitable for harsh environments with an operating temperature range of -55°C to 165°C.
Connector 1 is a 2.92mm connector, while Connector 2 is an SSMA connector, both constructed with stainless steel and passivated finishes for reliable conductivity and long-term performance. This adapter is ideal for test equipment, aerospace, telecommunications, and other high-frequency systems requiring stable and low-loss connections.
Key features:
- 2.92mm to SSMA straight adapter for seamless connectivity.
- 50-ohm impedance ensures signal integrity.
- DC-40 GHz frequency range for broad application use.
- Low VSWR (1.20:1) minimizes signal reflection.
- Stainless steel housing with passivated plating for durability.
- Operating temperature: -55°C to 165°C for extreme conditions.
Main Specifications:
| Product No: | YC-2.92/SSMA-JJS, YC-2.92/SSMA-JKS, YC-2.92/SSMA-KJS, YC-2.92/SSMA-KJS | |
| Product Series: | 2.92mm Adapters | |
| Adapter Type: | 2.92mm to SSMA | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | 2.92mm Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | SSMA Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.2:1 | |
| Frequency Range: | DC-40 GHz | |
| Operating Temerature: | -50 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this 2.92mm to SSMA Adapter:
2.92mm adapters are commonly used in RF and microwave applications where high-frequency performance and precision are required.
Here are some applications:
- Microwave Modules;
- Radar Systems;
- Satellite Communication;
- Broadcasting;
- 5G Technology;
- Adapters and Transitions;
- Military and Aerospace;
- Test and Measurement Equipment.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
