Single Port RJ45 Ethernet Jack 8P8C Connector, Unshielded, Tab-Down, Through Hole, R/A, No LED
Introduction:
This is an unshielded single port RJ45 8P8C connector designed for stable through hole mounting on printed circuit boards. It features a durable PBT housing available in either Yellow or Red insulator options to help installers distinguish between different signal paths or port functions. The Phosphor Bronze contacts are finished with Gold over Nickel plating to ensure high conductivity and resistance to oxidation. Utilizing a Tab-Down right angle configuration, this component effectively optimizes board space while supporting a current rating of 1.5A. The jack operates reliably across a temperature range of -40°C to +85°C and provides a high insulation resistance of 1000MΩ for electrical safety. Technicians utilize this modular interface for consistent connectivity in standard telecommunication and data networking devices.
Key Features
- 8P8C RJ45 Interface: Provides standard modular connectivity for networking systems.
- Insulator Color Options: Available in Yellow or Red for easy port identification.
- Gold Plated Contacts: Ensures superior conductivity and lasting oxidation resistance.
- Durable PBT Material: Maintains structural integrity within -40°C to +85°C environments.
- Space-Saving Design: Tab-Down right angle profile fits compact board layouts.
Main Specifications:
General Information:
| Product No.: | MTJ-880X1-N-P114C, MTJ-880X1-N-P485C | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC for 1 minute |
Materials and Plating:
| Housing Material: | PBT | |
| Housing Color: | Yellow/Red | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

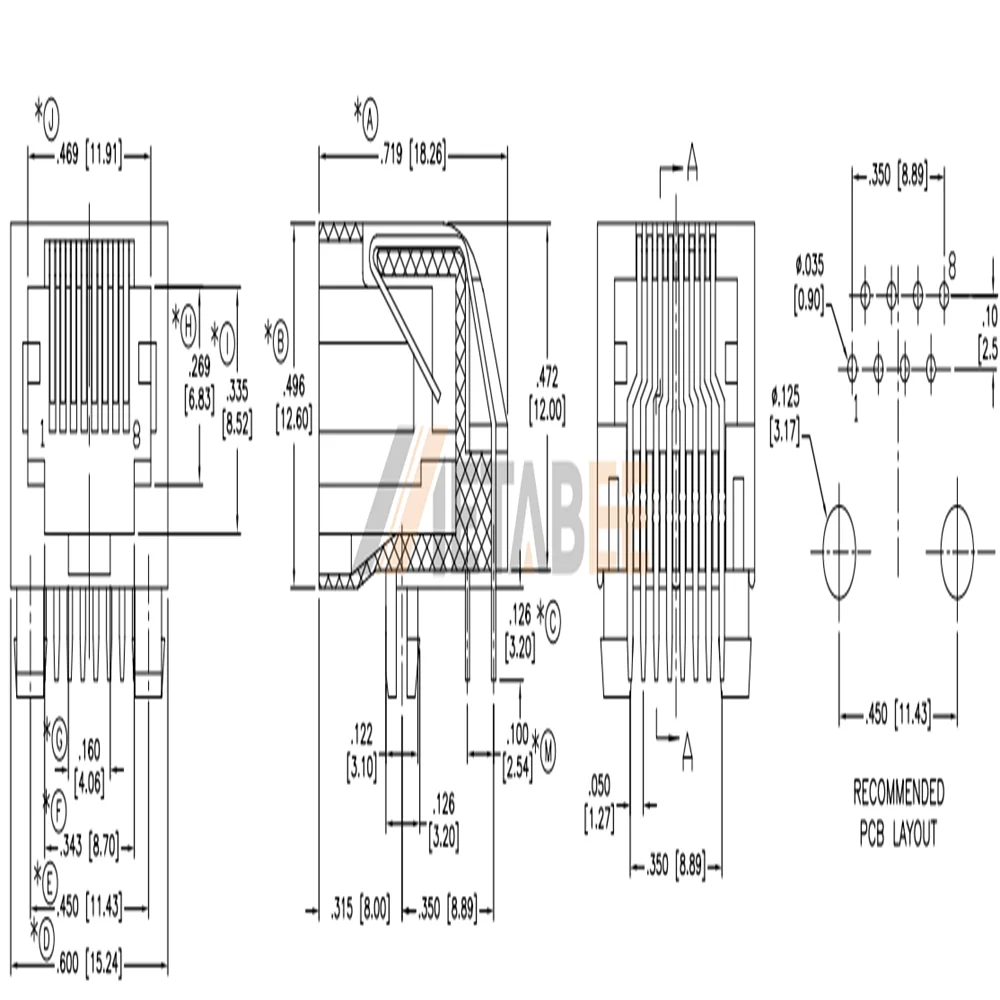

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
