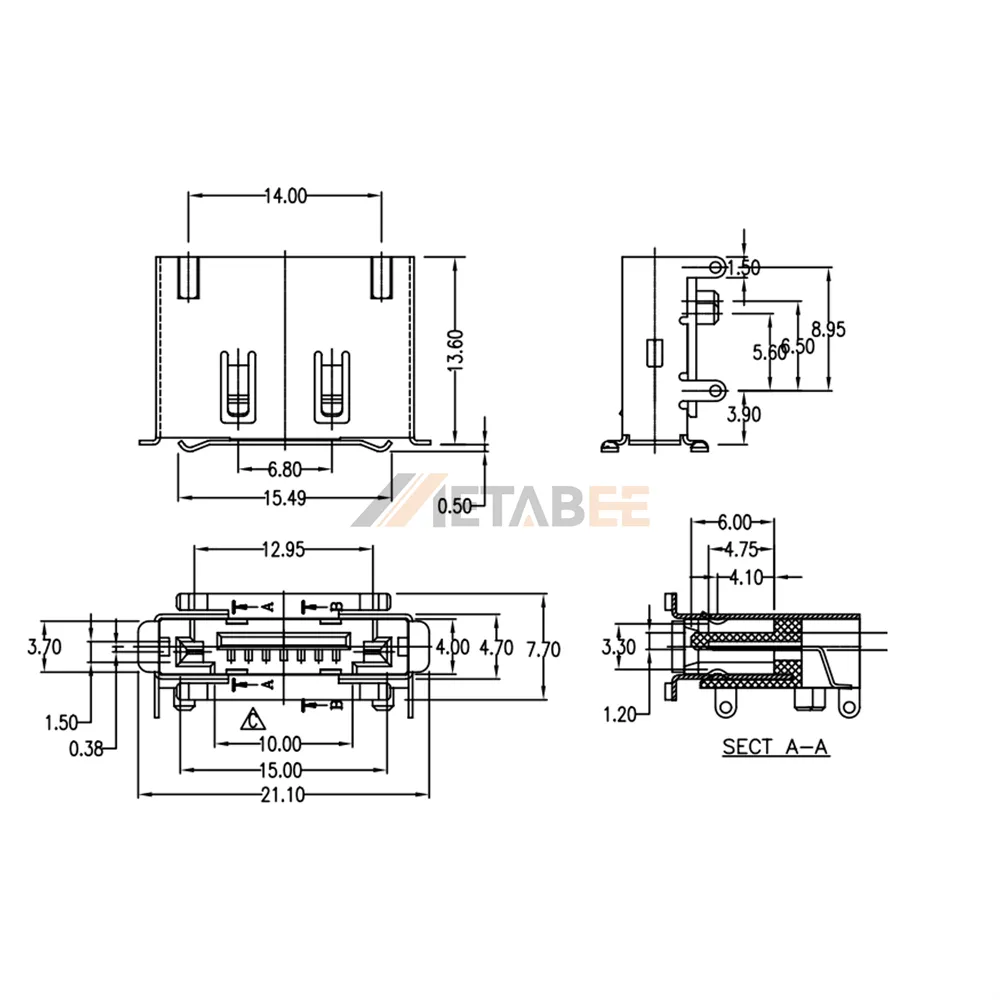

Shielded External SATA 7 Pin Data Female Connector, Thru Hole, R/A
Introduction:
The Shielded External SATA 7 Pin Data Female Connector is designed for reliable data transmission in external sata storage and electronic applications. Featuring a single-port, 7-pin female configuration, this connector uses a right-angle design and pcb thru-hole mounting for secure and stable board installation.
Engineered for consistent electrical performance, the connector supports a rated current of 1.5a, with contact resistance of 30 mω max and insulation resistance of 1,000 mω min. It provides 500 vac dielectric withstanding voltage, ul94v-0 flame resistance, and reliable operation across temperatures from -55°c to +85°c.
Key Features
- Shielded external sata design
- Female single-port, 7-pin configuration
- Right-angle orientation
- Pcb thru-hole mounting
- 500 vac dielectric strength
- -55°c to +85°c operating temperature
Main Specifications:
General Information:
| Product No.: | SATA-H-PM-SMT-FS-PG-R | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Right Angle | |
| Connector Gender: | Female | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
