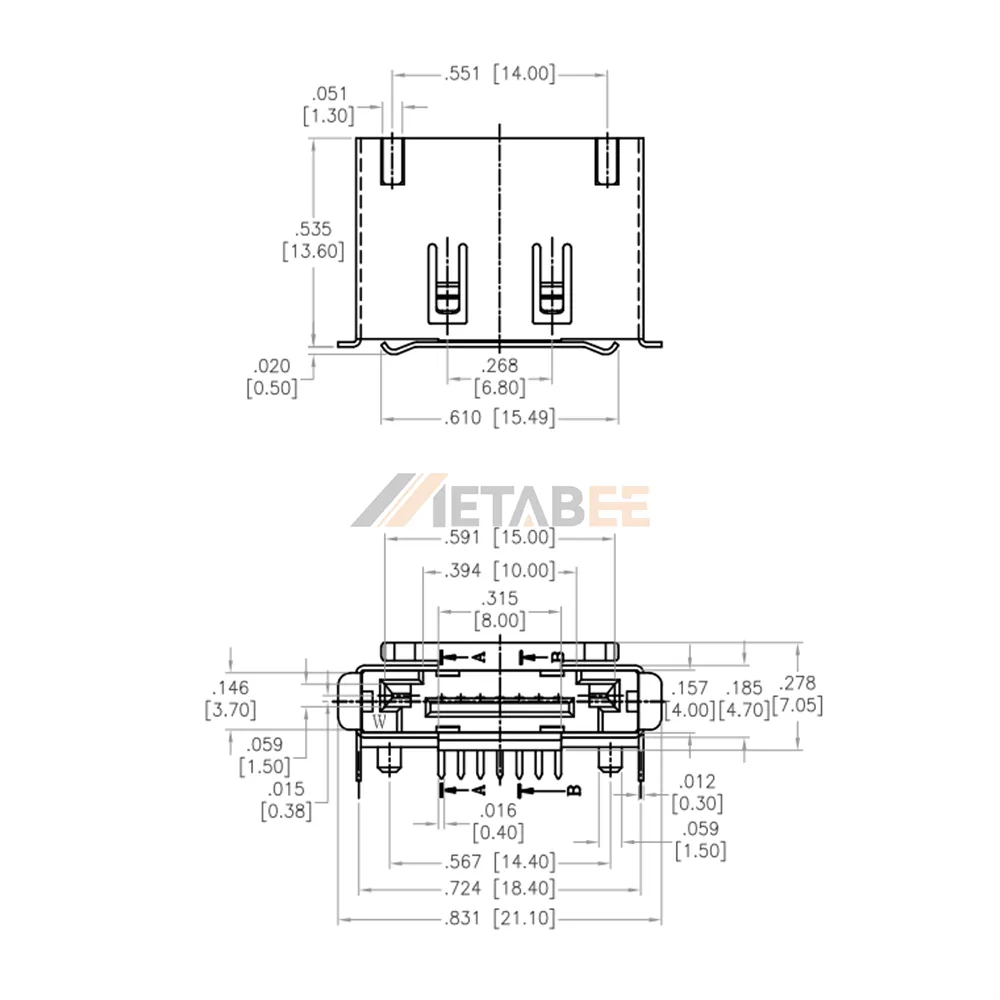

eSATA 7 Pin Female Connector for Hard Drive, Thru Hole, Shielded, R/A
Introduction:
This eSATA 7 pin female connector is designed for hard drive applications that need a compact, shielded, right angle PCB thru hole connection. It has a single port, 7 pin female interface and mounts at a right angle to save PCB space. The shielded housing helps reduce EMI and supports stable signal transmission.
Rated at 1.5A, this connector offers contact resistance of 30 mOhms max, insulation resistance of 1,000 Mohms min, and dielectric withstanding voltage of 500 VAC. It meets UL94V-0 flammability and operates from -55°C to 85°C, making it suitable for storage, industrial, and electronic equipment.
Key Features
- eSATA 7 pin female connector for hard drive.
- Single port, right angle mounting.
- PCB thru hole installation.
- Shielded design for EMI reduction.
- 1.5A current rating.
- 30 mOhms max contact resistance, 1,000 Mohms min insulation resistance, 500 VAC dielectric, UL94V-0, -55°C to 85°C.
Main Specifications:
General Information:
| Product No.: | SATA-W-NP-RA-X | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Polarization: | No Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
