SATA Combo Data & Power Plug, 22 Pin, SMT, R/A
Introduction:
Sata combo data & power plug, 22 pin, smt, r/a. This male dual port connector combines 7+15 pin signal and power contacts in one right angle surface mount package. It is designed for pcb assembly where a low profile and secure board retention are required.
Rated current is 1.5a. Contact resistance is 30 mohms max, insulation resistance is 1,000 mohms min, and dielectric withstanding voltage is 500 vac. The housing meets ul94v-0 flammability and operates from -55 to 85 degrees celsius.
Key Features
- 7+15 pin dual-port configuration
- Male connector design
- Right angle mounting orientation
- PCB surface mount installation
- 1.5a rated current
- -55°c to 85°c operating temperature

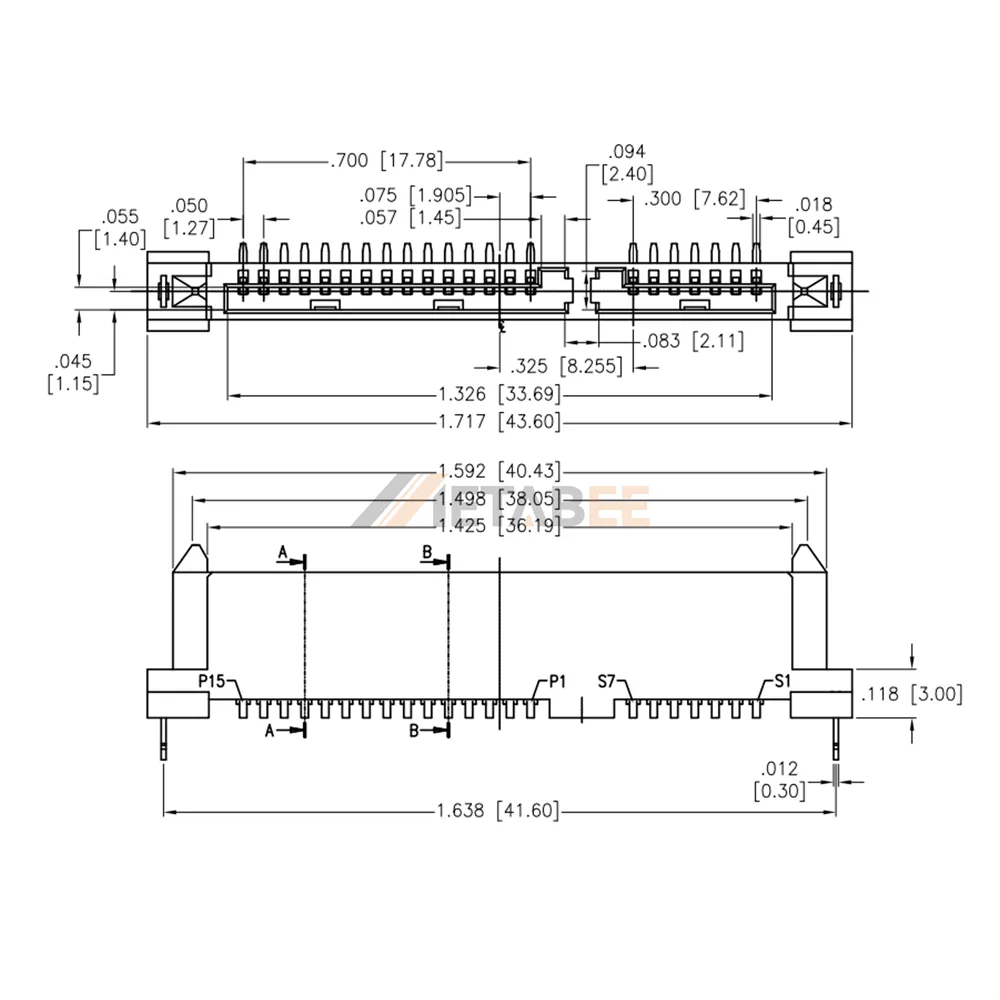

Main Specifications:
General Information:
| Product No.: | SATA-S-PM-SMT | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+15 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Male | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
