Dual Port SAS Combo Receptacle for Backplane, 29 Pin, SMT, Vertical
Introduction:
The dual port sas combo receptacle for backplane is designed for reliable data and power connectivity in high-density storage and server applications. Featuring a female dual-port 7+15+7 pin configuration, this 29-pin connector is designed for pcb surface mounting with a vertical orientation. Similar 29-position sas connectors are widely used in backplanes, servers, enterprise storage, hdd, and ssd applications.
With a rated current of 1.5a and contact resistance of 30 mOhms max, the connector supports stable electrical performance. Its 1,000 mOhms min insulation resistance and 500 vac dielectric withstanding voltage provide dependable electrical isolation. The ul94v-0 flame-retardant construction and -55°c to 85°c operating temp
Key Features
- 29-Pin 7+15+7 Configuration
- Dual-Port Female Receptacle
- Vertical Mounting Orientation
- PCB Surface Mount Design
- 1.5a Rated Current
- -55°C To 85°C Operating Temperature

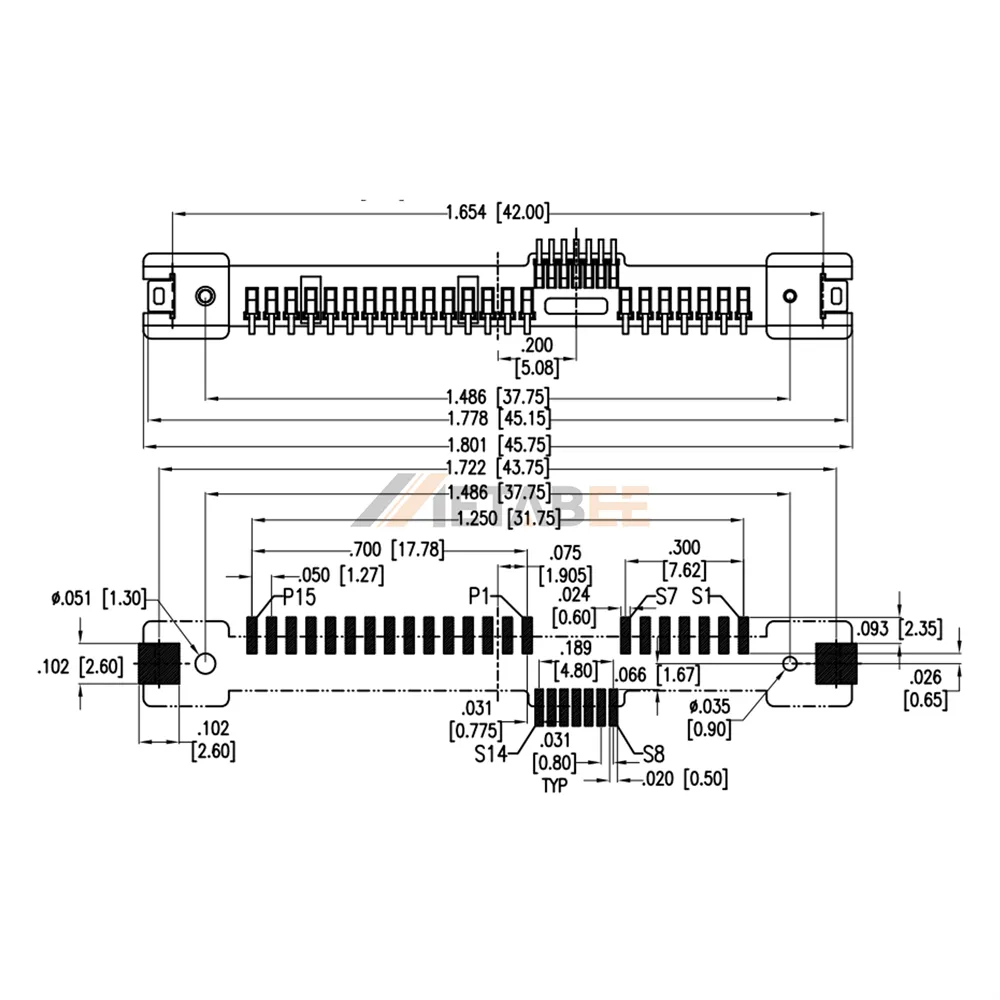

Main Specifications:
General Information:
| Product No.: | SATA-R-PM-SMT | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+15+7 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
