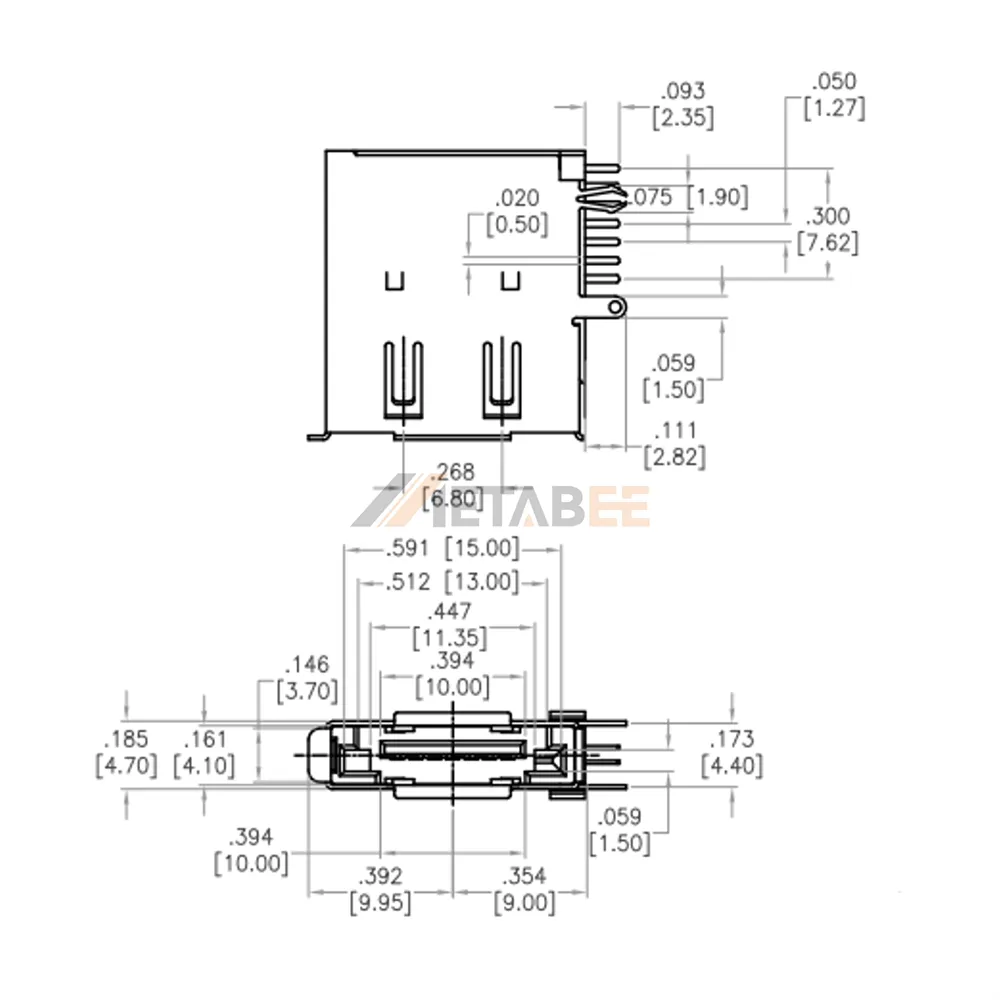

External SATA 7 Pin Female Hard Drive Connector, Thru Hole, Shielded, R/A
Introduction:
The external sata 7 pin female hard drive connector provides robust high-speed storage interface connectivity for demanding consumer electronics and industrial computing systems. Designed with a single-port, right-angle configuration, this through-hole connector facilitates efficient side-entry cable routing, conserving critical vertical clearance on dense pcb layouts. The integrated metal shield delivers outstanding emi/rfi protection, ensuring clean signal integrity and reliable serial bus communication for external storage enclosures.
Constructed for harsh thermal and mechanical conditions, this connector performs reliably across an extended temperature range of -55°c to 85°c. It features a rugged thermoplastic housing rated to ul94v-0 for flame-retardant safety and structural resilience during standard wave-soldering processes. With a 1.5a current capacity and 500 vac dielectric strength, it delivers the consistent electrical integrity required for secure, high-bandwidth data transfers.
Key Features
- Connector interface: single port 7 pin female external sata connector.
- Mounting orientation: right-angle through-hole pcb mount for stable retention.
- Emi shielding: full metal shield design for enhanced noise suppression.
- Electrical performance: rated at 1.5a with 500 vac dielectric withstanding voltage.
- Contact integrity: 30 mohms maximum contact resistance and 1,000 mohms minimum insulation resistance.
- Environmental durability: ul94v-0 flame resistance with an operating range of -55°c to 85°c.
Main Specifications:
General Information:
| Product No.: | SATA-W-NP-RU | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Polarization: | No Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
