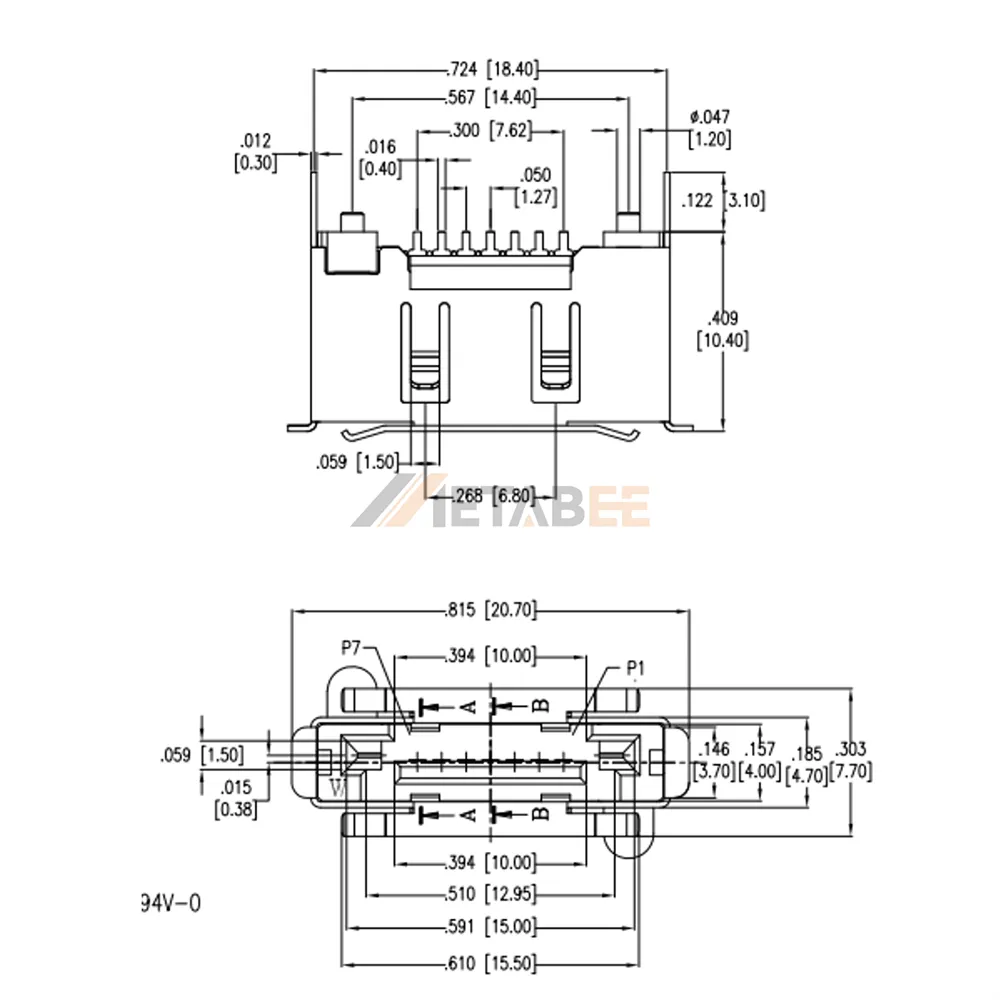

External SATA 7 Pin Female HDD Connector for PCB, SMT, Shield, Straight
Introduction:
External SATA Female HDD Connector for PCB, SMT, Shield, Straight is a single port 7 pin female connector built for reliable SATA HDD connections on printed circuit boards. Its straight mounting orientation and PCB SMT mounting type support efficient surface-mount assembly. It suits storage devices, docking stations, adapters, and industrial electronics.
This SATA female connector is rated at 1.5A. It provides contact resistance of 30 mOhms max, insulation resistance of 1,000 mOhms min, and dielectric withstanding voltage of 500 VAC. The connector meets UL94V-0 flame retardancy and operates from -55°C to 85°C for demanding environments.
Key Features
- Female single port 7 pin design for SATA HDD PCB connections.
- Straight mounting orientation for vertical, space-saving placement.
- PCB SMT mounting for automated surface-mount assembly.
- 1.5A current rating for stable signal and power transmission.
- 30 mOhms max contact resistance and 1,000 mOhms min insulation resistance.
- UL94V-0 flame retardancy with -55°C to 85°C operating temperature.
Main Specifications:
General Information:
| Product No.: | SATA-W-NP-VT-SMT | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Straight | |
| Mounting Method: | Cable type | |
| Mounting Feature: | N/A | |
| Polarization: | No Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
