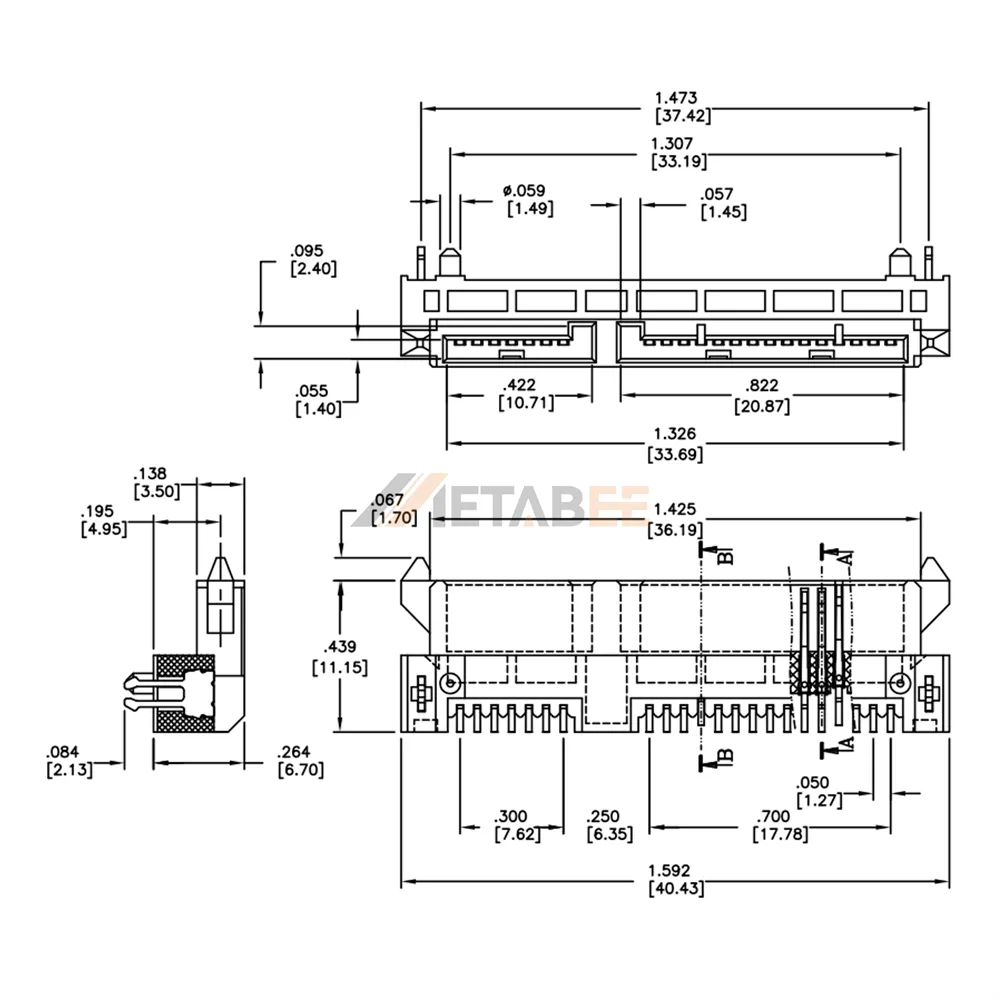

SATA Combo 22 Pin Data and Power Receptacle, SMT, R/A
Introduction:
SATA combo 22 pin data and power receptacle, SMT, R/A. this female dual port connector combines 7+15 pin signal and power contacts in a single right angle surface mount package, saving valuable PCB space.
it handles 1.5a rated current with contact resistance of 30 mohms max and insulation resistance of 1,000 mohms min. dielectric withstanding voltage is 500 vac. the housing meets ul94v-0 flammability rating and operates from -55°c to 85°c.
Key Features
- SATA combo 22 pin receptacle
- female dual port, 7+15 pin
- right angle mounting orientation
- PCB surface mount (SMT)
- 1.5a rated current
- ul94v-0, -55°c to 85°c
Main Specifications:
General Information:
| Product No.: | SATA-Q-PM-SMT-R | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+15 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
