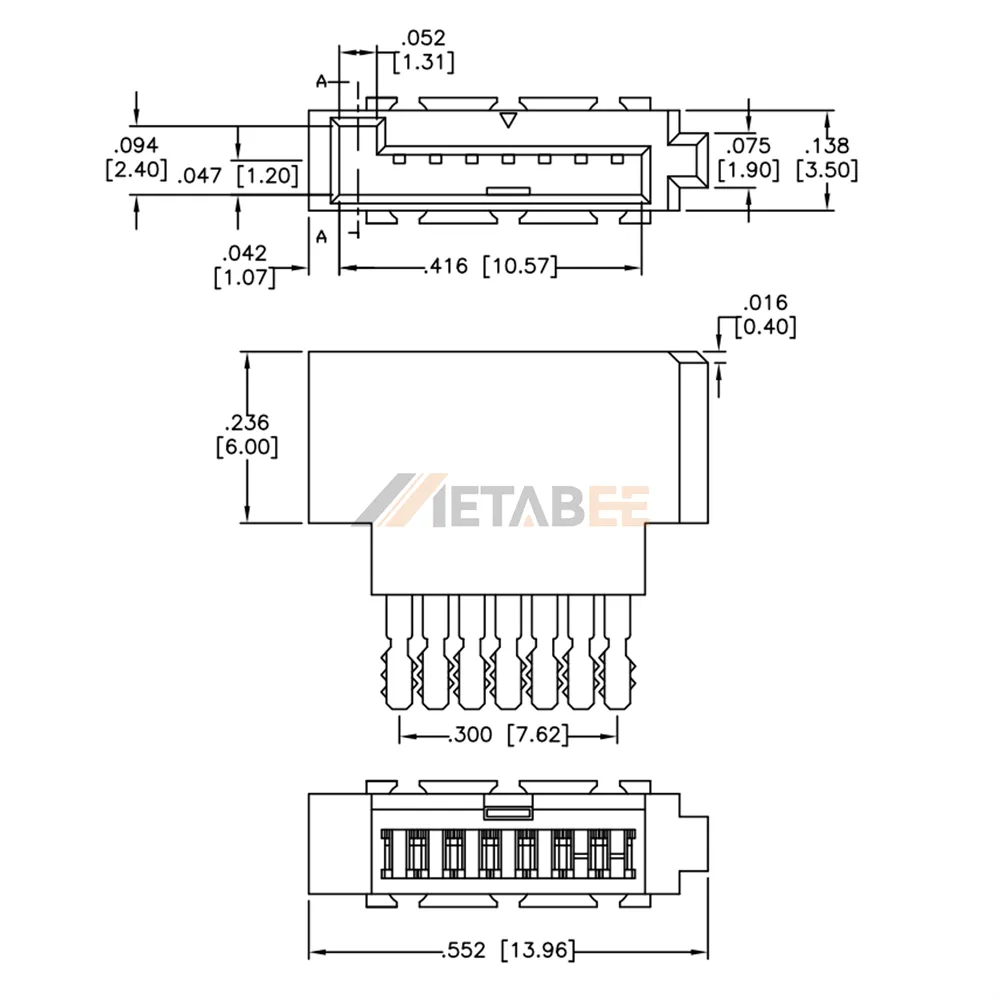

SATA 7 Pin Data Female Connetor for Cable, Solder Type
Introduction:
The sata 7 pin data female connector for cable is a dual port, 7 pin sata connector designed for reliable cable termination and stable data transmission. Featuring a solder type termination, it provides a secure mechanical and electrical connection for sata cable assemblies and internal storage applications.
Rated for 1.5a current, this connector delivers dependable electrical performance with a maximum contact resistance of 30 mΩ and minimum insulation resistance of 1,000 mΩ. It withstands 500 vac dielectric voltage and operates reliably from -55°c to 85°c. The ul94v-0 flame-retardant housing enhances safety and durability in demanding environments.
Key Features
- Female connector, dual port
- 7 pin sata data interface
- Solder type cable termination
- Rated current: 1.5a
- Dielectric voltage: 500 vac
- Operating temperature: -55°c to 85°c
Main Specifications:
General Information:
| Product No.: | SATA-Z-PL-CM | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | N/A | |
| Mounting Method: | Cable type | |
| Mounting Feature: | N/A | |
| Polarization: | Left Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
