SATA 7 Pin Data Female Connector for PCB , Thru Hole, Vertical
Introduction:
The sata 7 pin data female connector for pcb is a single port, 7 pin connector designed for reliable sata data transmission. Featuring a vertical mounting orientation and pcb thru hole installation, it provides a secure and stable connection for storage devices, embedded systems, and other sata-compatible applications.
Rated for 1.5a current, this connector offers reliable electrical performance with a maximum contact resistance of 30 mΩ and minimum insulation resistance of 1,000 mΩ. It supports a 500 vac dielectric withstanding voltage and operates from -55°c to 85°c. The ul94v-0 flame-retardant housing provides enhanced safety and durability for demanding operating environments.
Key Features
- Female, single port, 7 pin
- Vertical mounting orientation
- Pcb thru hole installation
- Rated current: 1.5a
- Dielectric withstanding voltage: 500 vac
- Operating temperature: -55°c to 85°c

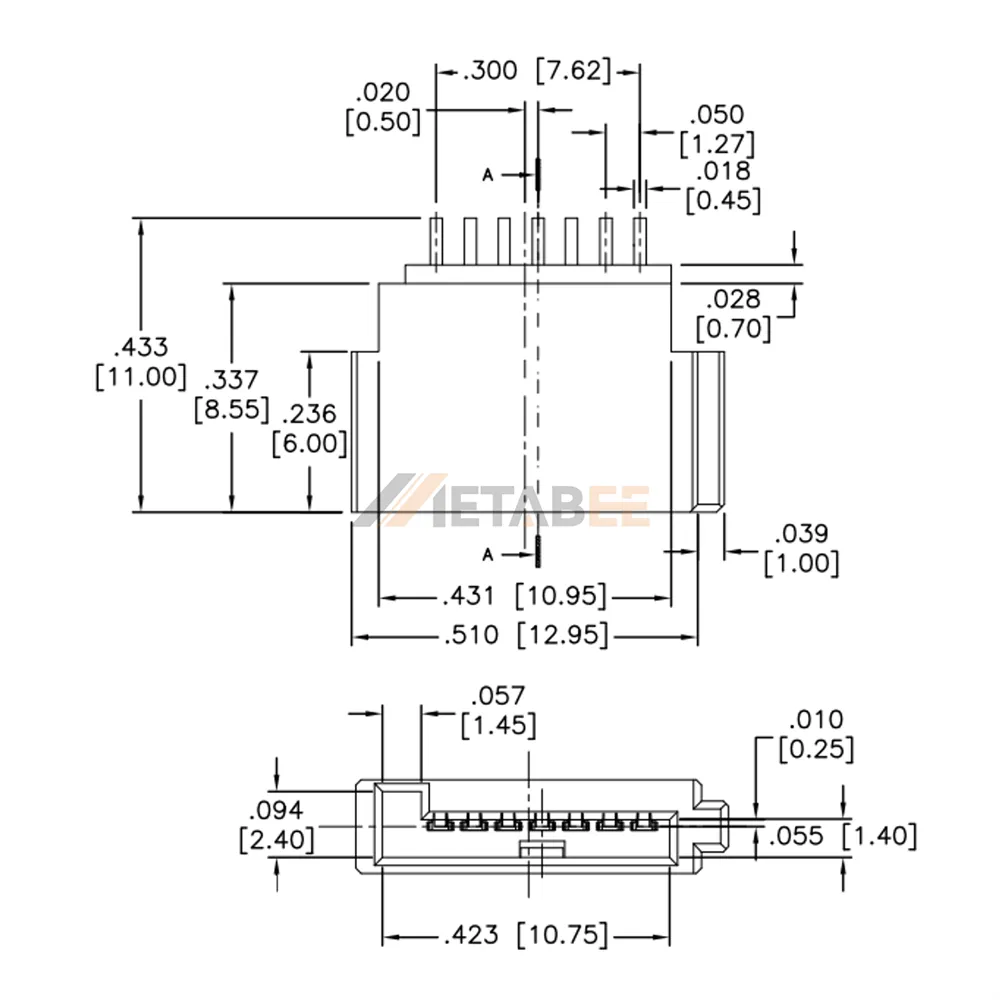

Main Specifications:
General Information:
| Product No.: | SATA-Z-PL-VT-PC-15 | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Polarization: | Left Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
