SATA 7+15 22-Pin Combo Receptacle, SMT, 90 Degree
Introduction:
The sata 7+15 22-pin combo receptacle is a female dual-port connector designed for reliable sata data and power interfacing. Featuring a 7+15 pin configuration, it integrates data and power connections into a single compact receptacle, making it suitable for storage devices, hard drives, solid-state drives, embedded systems, and other sata-enabled equipment.
Designed with a 90-degree right-angle configuration and pcb surface mount termination, this sata connector supports efficient pcb integration and space-conscious layouts. It provides a rated current of 1.5a, with contact resistance of 30 mΩ max. and insulation resistance of 1,000 mΩ min. The connector also withstands 500 vac dielectric voltage and operates reliably across temperatures from -55°c to 85°c.
Key Features
- Female dual-port 7+15 pin configuration
- 22-pin combo sata receptacle
- 90-degree right-angle orientation
- Pcb surface mount installation
- 1.5a rated current and 500 vac withstand voltage
- Ul94-v0 flame retardant, -55°c to 85°c operating temperature

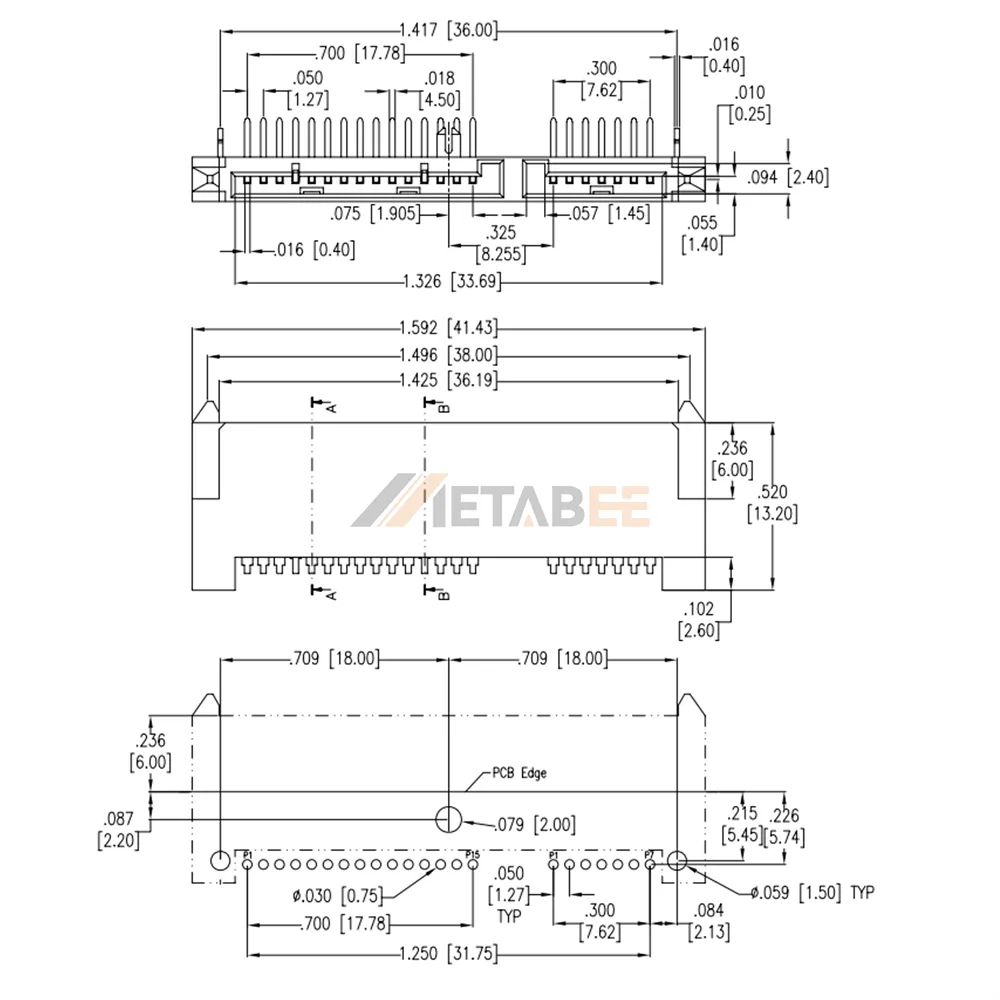

Main Specifications:
General Information:
| Product No.: | SATA-V-PM-RT | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+15 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
