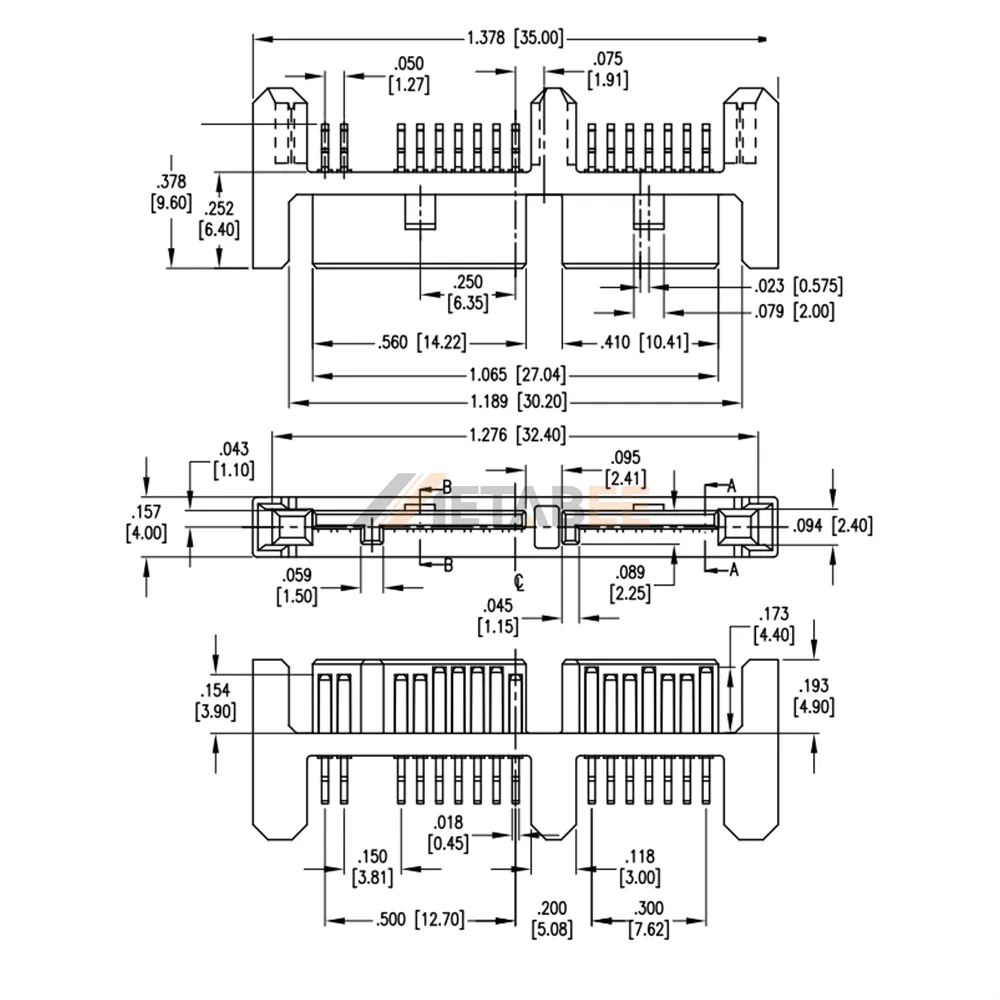

Micro SATA 16 Pin Plug for 1.8 Inch HDD/Micro SSD, Straddle Mount
Introduction:
The micro sata 16 pin plug provides compact, high-speed storage interconnectivity specifically engineered for 1.8-inch hard disk drives and micro ssds. Featuring a dual-port 16 pin layout (7-pin signal, 7-pin power, and 2-pin optional sequence), this male connector streamlines data transfer and power delivery in ultra-thin computing architectures. The straddle-mount pcb termination clamps securely to the edge of the printed circuit board, maximizing space efficiency and maintaining a low-profile board assembly.
Engineered to operate dependably in compact, thermally dense enclosures, this connector functions seamlessly across an operating temperature range of -55°c to 85°c. It utilizes a durable, high-temperature thermoplastic housing rated to ul94v-0 for superior flame resistance and dimensional stability during standard soldering. With a 1.5a current rating, low contact resistance, and 500 vac dielectric strength, it ensures reliable power continuity and pristine signal integrity for compact storage platforms.
Key Features
- Connector configuration: 16-pin (7+7+2) male micro SATA plug interface.
- Form factor optimization: dedicated interconnect for 1.8-inch hdds and micro SSDs.
- Mounting style: straddle-mount edge connection for ultra-low profile integration.
- Electrical performance: 1.5a rated current with 500 vac dielectric withstanding voltage.
- Contact reliability: 30 mΩ maximum contact resistance and 1,000 mΩ minimum insulation resistance.
- Environmental durability: UL94V-0 flame resistance with a -55°C to 85°C operating temperature range.
Main Specifications:
General Information:
| Product No.: | SATA-Y-PR-SM | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+7+2 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | N/A | |
| Mounting Method: | Straddle Mount | |
| Mounting Feature: | N/A | |
| Polarization: | Right Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
