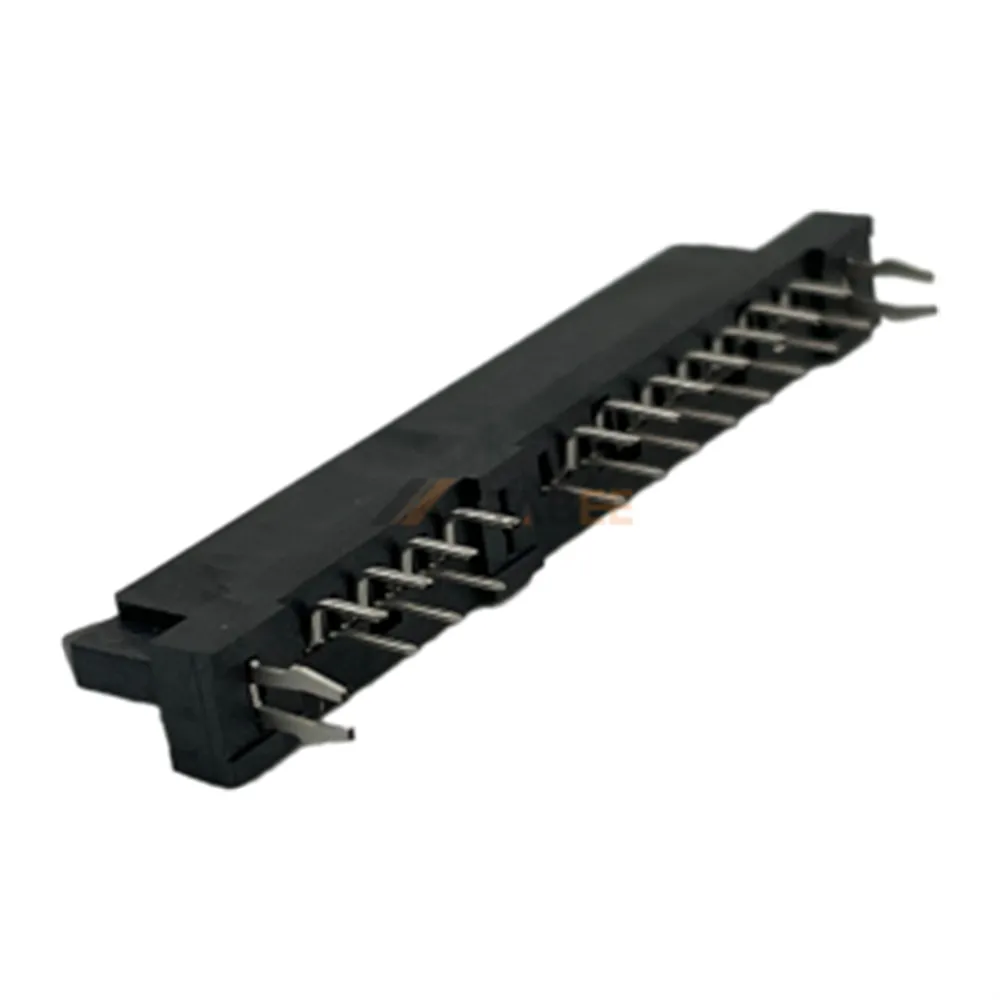

SATA 22 Pin Female Connector for PCB, Thru Hole, Vertical
Introduction:
Sata 22 pin female connector for pcb, thru hole, vertical. this dual port connector features a 7+15 pin female interface and a vertical mounting orientation. it is designed for pcb thru hole mounting, making it suitable for reliable board level connections in storage and industrial applications.
Electrical performance includes a rated current of 1.5a, contact resistance of 30 mohms max, insulation resistance of 1,000 mohms min, and dielectric withstanding voltage of 500 vac. the connector meets ul94v-0 flammability requirements and operates from -55°c to 85°c.
Key Features
- Female Dual Port, 7+15 Pin
- Vertical Pcb Thru Hole Mounting
- Rated Current 1.5a
- Contact Resistance 30 Mohms Max
- Insulation Resistance 1,000 Mohms Min
- Ul94v-0, -55°C To 85°C
Main Specifications:
General Information:
| Product No.: | SATA-M-PM-VT | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+15 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
