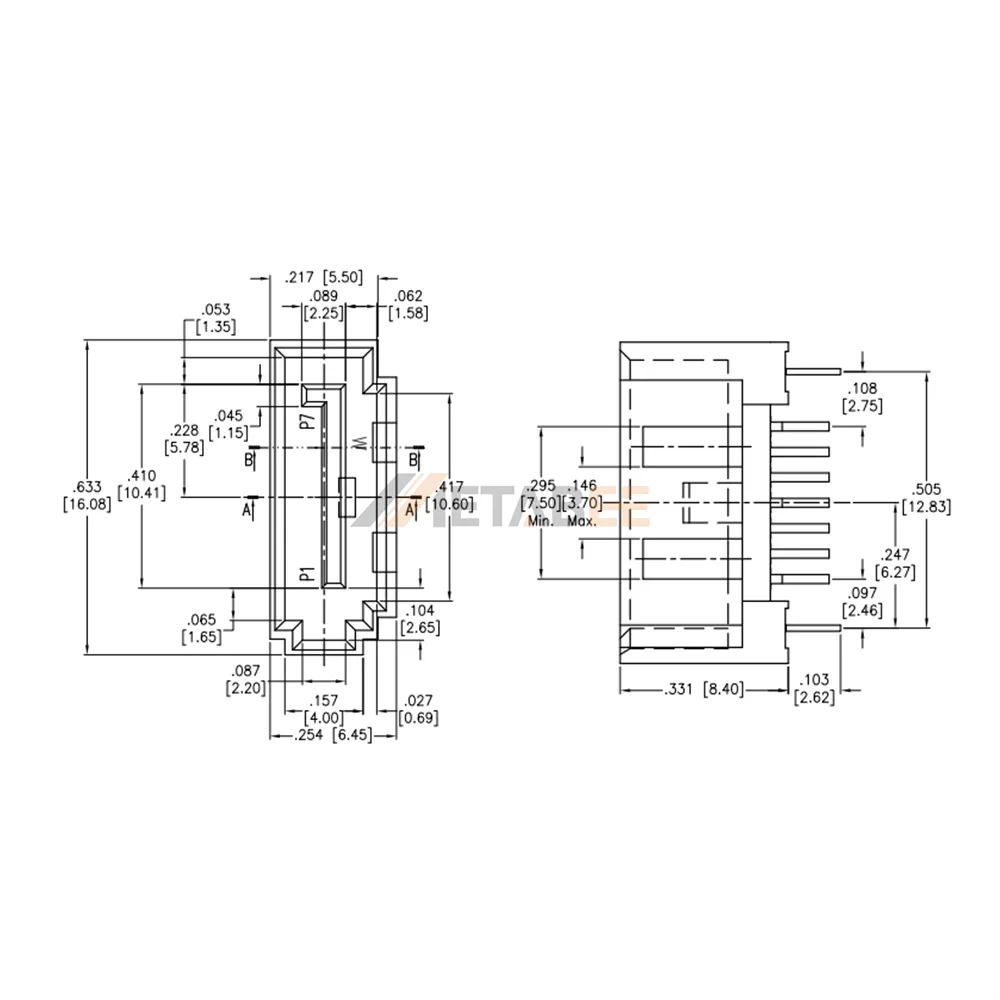

Serial ATA 7 Pin Plug, PCB Thru Hole, Vertical
Introduction:
The serial ata 7 pin plug is designed for reliable data connectivity in pcb-based sata applications. Featuring a male, single-port, 7-pin configuration, this connector uses a vertical orientation and through-hole termination for secure mechanical attachment and stable pcb integration. Standard sata plug designs are available in vertical through-hole configurations for board-mounted applications.
With a rated current of 1.5a and contact resistance of 30 mOhms max, the connector supports consistent electrical performance. Its 1,000 mOhms min insulation resistance and 500 vac dielectric withstanding voltage provide dependable electrical isolation. The ul94v-0 flame-retardant construction and -55°c to 85°c operating temperature range support reliable performance across demanding electronic equipment environments.
Key Features
- 7-pin sata male plug
- single-port configuration
- vertical mounting orientation
- pcb through-hole termination
- 1.5a rated current
- -55°c to 85°c operating temperature
Main Specifications:
General Information:
| Product No.: | SATA-P-PR-VT | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Polarization: | Right Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
