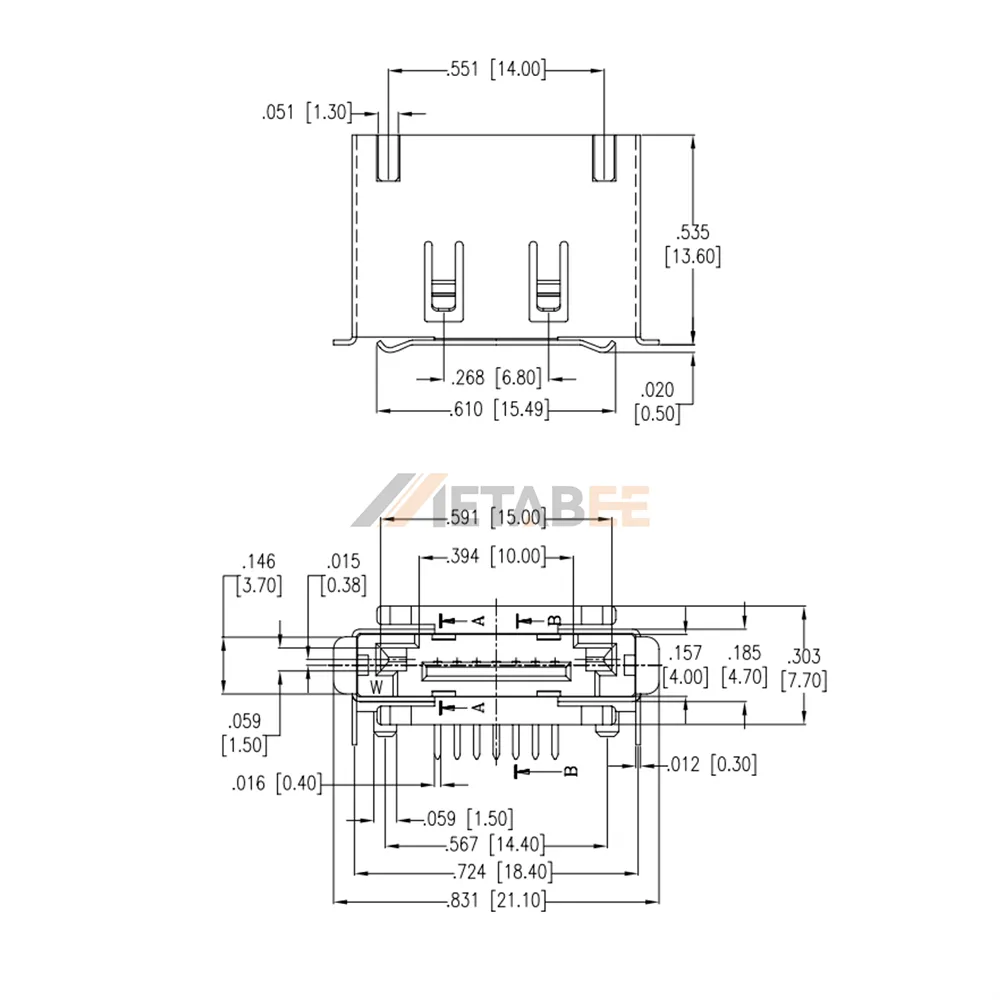

Shielded eSATA 7 Pin Male Connector, Thru Hole Type, R/A
Introduction:
Shielded esata 7 pin male connector, thru hole type, r/a. This single port connector features a right angle mounting orientation and pcb thru hole mounting type. It delivers 1.5a rated current with contact resistance of 30 mohms max and insulation resistance of 1,000 mohms min. Dielectric withstanding voltage is 500 vac. The housing meets ul94v-0 flammability rating. Operating temperature ranges from -55°c to 85°c. Ideal for reliable data transfer in demanding environments.
Key Features
- Shielded esata 7 pin male connector.
- Single port, right angle design.
- Pcb thru hole mounting.
- 1.5a rated current.
- 30 mohms max contact resistance.
- Ul94v-0, -55°c to 85°c.
Main Specifications:
General Information:
| Product No.: | SATA-J-NP-RT-P-S-PG-1 | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Polarization: | No Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
