Introduction:
This 20-pin SFP port PCB receptacle connector mounts directly onto host circuit boards to mate with standard pluggable transceivers. It functions inside SFC series shielding cages, which provide physical port guidance and external EMI protection. Copper alloy contact terminals feature 30u” heavy gold plating over a nickel underplate. This robust gold barrier resists surface fretting corrosion and sustains low contact resistance across frequent mating cycles. The housing is molded from high-temperature UL 94V-0 thermoplastic to resist thermal warping during SMT reflow soldering. Surface-mount leads maintain uniform coplanarity for reliable solder joint integrity on board pads. Rated from -55°C to +85°C, this high-durability receptacle suits core telecom switches, high-speed optical transceivers, and enterprise routers.
Key Features
-
30u” Heavy Gold Plating: Resists fretting corrosion and extends mating cycle life.
-
SMT Surface Mount: Ensures uniform lead coplanarity for automated reflow assembly.
-
Standard SFF-20 Footprint: Operates inside SFC series multi-port shielding cages.
-
Extended Temperature Rating: Performs reliably from -55°C to +85°C environments.
-
UL 94V-0 Housing: Resists high reflow temperatures without structural warping.

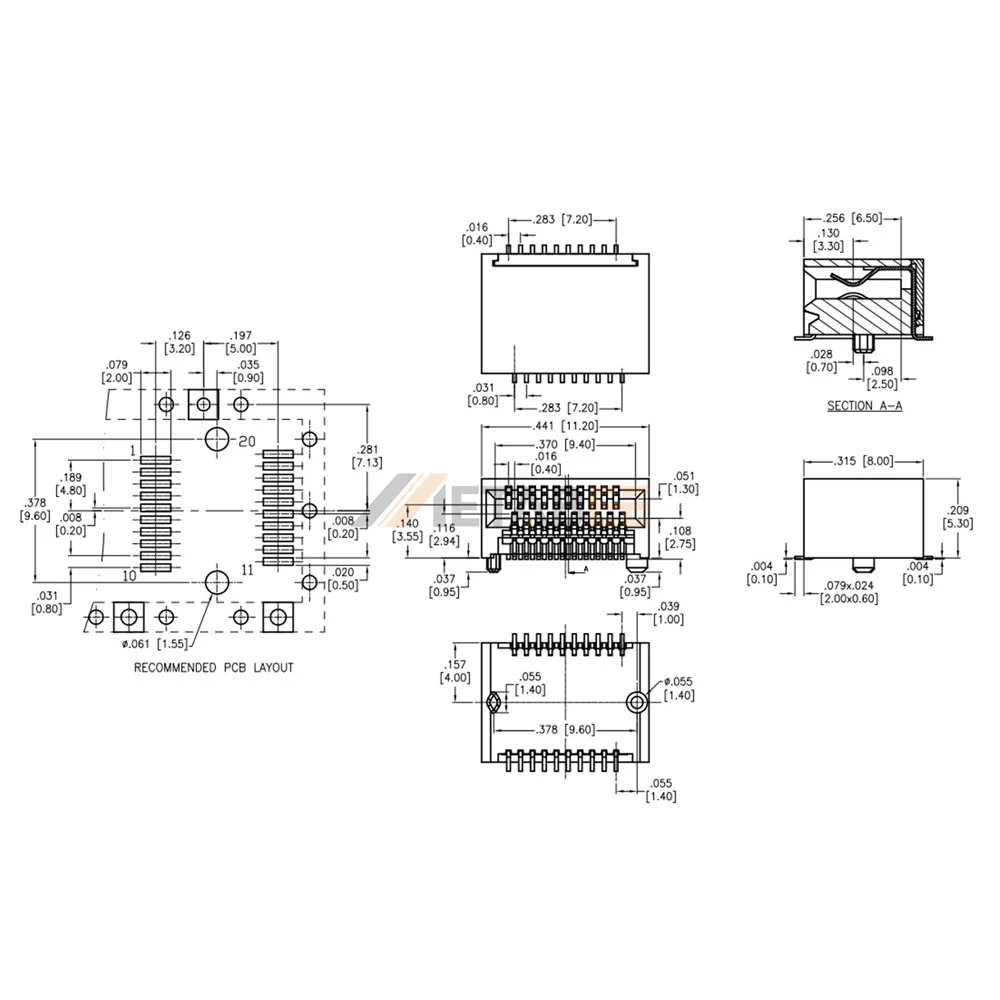

Main Specifications:
General Information:
| Product No.: | SFF-20-SG-A-30 | |
| Product Type: | SFP Connectors & Receptacles | |
| Pluggable Form Factor: | SFP | |
| Port Configuration: | 1 Port (20-Pin) | |
| PCB Mounting Style: | SMT | |
| Included Lightpipe : | None | |
| Included Heat Sink: | None | |
| Packaging Method: | Tray | |
| Mating Components: | SFC-1 / SFC-2 / SFC-4 / SFC-6 | |
| EMI Shielding Type: | N/A (Shielded by Cage) |
Materials and Plating:
| EMI Shielding Material: | N/A | |
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Connector Insert Material: | N/A | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | 30u” Gold over Nickel underplate |
Environmental:
| Operating Temperature: | -55°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
Single Row Cage Part Number Configuration
Applications:
- Switch
- Router
- Server & Storage
- Fibre Channel and Gigabit Ethernet
- Networking & Telecommunication
