Introduction:

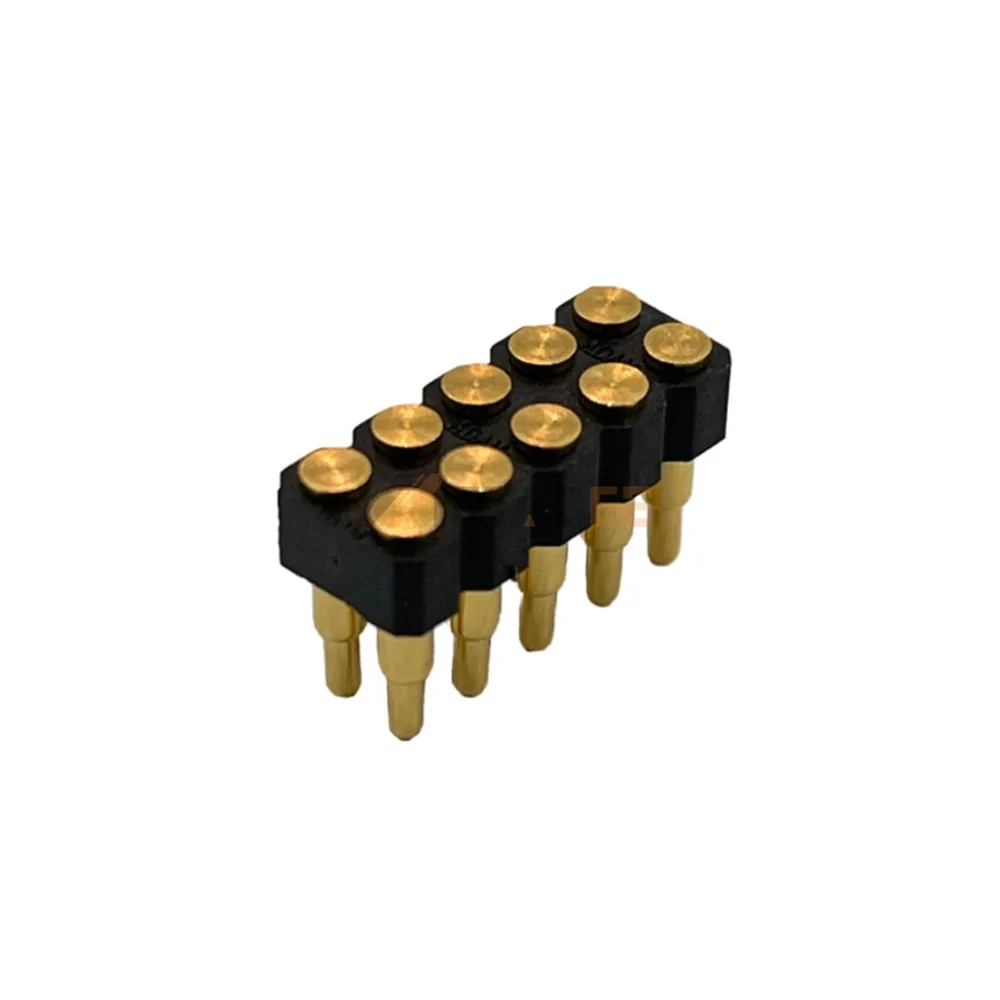

This spring loaded contact connector provides a reliable vertical SMT interface for high-density 10 pin PCB layouts. It features a dual row configuration with a standard 2.54 mm pitch and offers height options from 4.5mm to 8mm for versatile board stacking. The terminal is rated for 1A at 12V, utilizing stainless steel springs to ensure mechanical stability throughout 10,000 compression cycles. It serves as an essential signal or power bridge in compact handheld devices and modular industrial electronics. Engineers can select specific heights and body lengths to achieve precise mechanical fitment for different housing requirements.
Key Features
- Dual Row Layout: 10 pin dual row design optimizes PCB density.
- Height Variety: Multiple initial height options from 4.5mm to 8mm.
- SMT Mounting: Surface mount orientation enables efficient automated board assembly.
- Reliable Contact: Stainless steel spring maintains pressure over 10,000 cycles.
- Standard Pitch: Standard 2.54 mm pitch ensures easy circuit integration.
Main Specifications:
General Information:

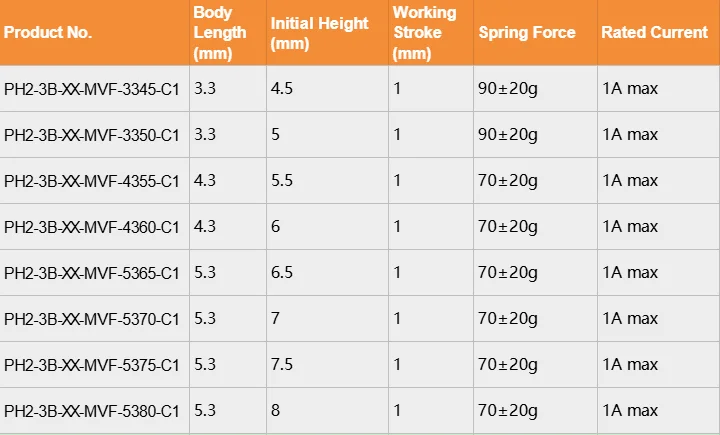

| Product No.: | PH2-3B-XX-MVF-XXXX-C1 | |
| Product Family: | Spring Loaded Connectors | |
| Number of Rows: | Dual Row | |
| Pin Configuration: | 10 Pin | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 70±20gf / 90±20gf | |
| Life Test: | 10,000 Cycles |
Electrical:
| Rated Current: | 1A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 100 Mohms min |
Materials and Plating:
| Plunger Material: | Brass | |
| Barrel Material: | Brass | |
| Spring Material: | Stainless Steel | |
| Insulator Material: | PA46, UL 94V-0 | |
| Insulator Color: | Black |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
