Introduction:
This 2 pin spring loaded pogo pin header connector features a standard 2.54 mm pitch for vertical surface mount integration. The series is available in multiple height configurations ranging from 4.5mm to 8.0mm to accommodate specific board-to-board clearance requirements. Depending on the selected model, the connector supports either a 1A or 3A current rating, with optimized spring forces of 90g or 70g respectively. Each Copper Alloy plunger is designed to maintain stable electrical contact at 12V DC over a 10,000 cycle lifespan. This modular interface serves as a reliable signal or power link in portable devices and industrial electronics where automated assembly and precise vertical alignment are essential.
Key Features
- Standard Pitch: 2.54 mm pitch 2 pin vertical layout.
- Height Options: Multiple heights ranging from 4.5mm to 8.0mm.
- Current Selection: Supports 1A or 3A current for power.
- SMT Mounting: Surface mount design for efficient automated assembly.
- Durable Link: Copper Alloy plunger maintains stability for 10,000 cycles.
Main Specifications:
General Information:

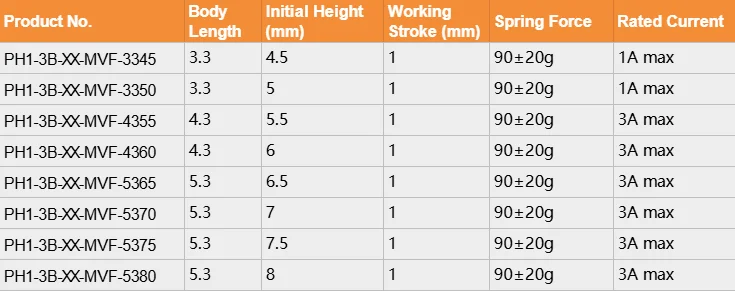

| Product No.: | PH1-3B-XX-MVF-XXXX | |
| Product Family: | Spring Loaded Connectors | |
| Number of Rows: | Single Row | |
| Pin Configuration: | 2 Pin | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 70±20gf / 90±20gf | |
| Life Test: | 10,000 Cycles |
Electrical:
| Rated Current: | 1A Max / 3A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 100 Mohms min |
Materials and Plating:
| Plunger Material: | Copper Alloy, Gold plated | |
| Barrel Material: | N/A | |
| Spring Material: | SUS304 | |
| Insulator Material: | PA46 UL94V-0 | |
| Insulator Color: | Black |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins
Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
