Introduction:

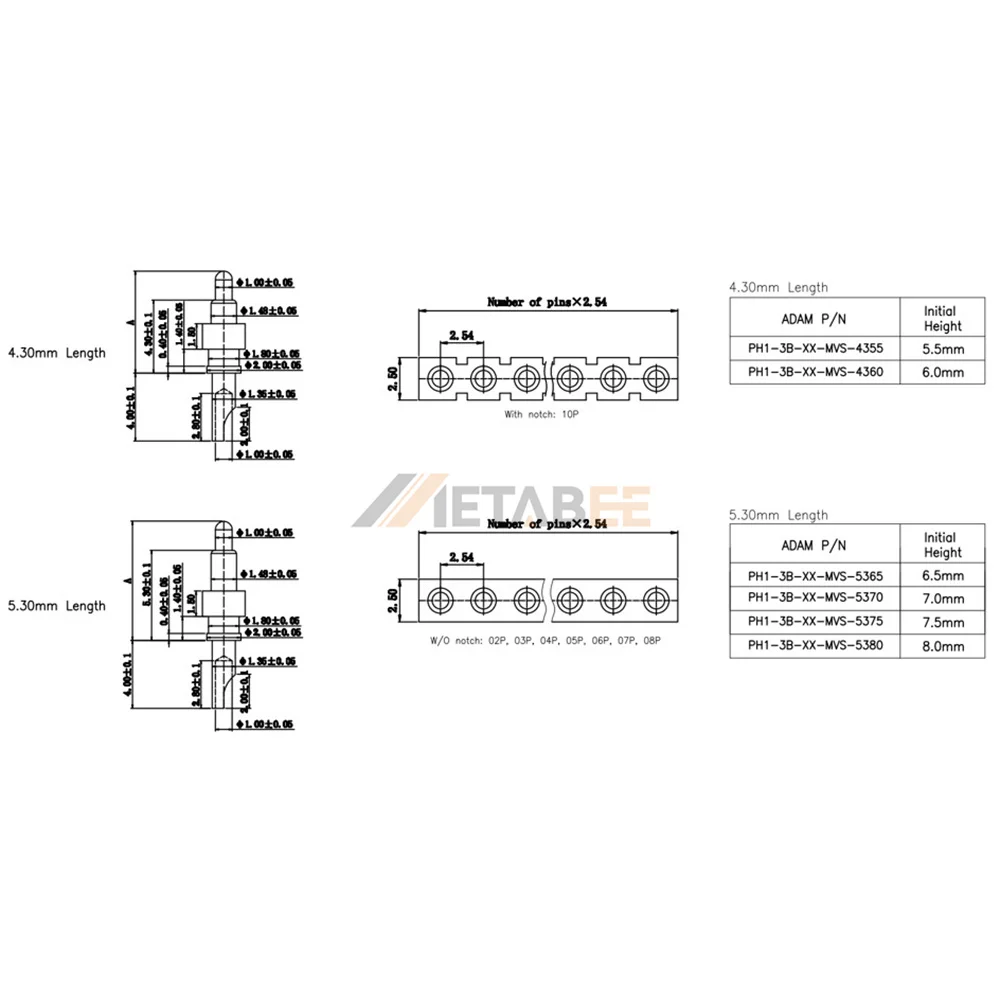

This spring loaded pin connector is a 2-pin vertical interface designed for secure wire-to-board integration via solder cup termination. The series provides multiple model configurations with initial heights ranging from 5.5mm to 8.0mm to accommodate specific clearance requirements between components. It handles a 3A current rating at 12V DC, utilizing stainless steel springs to maintain a 70g force over a 1mm working stroke. The solder cup design enables a permanent mechanical bond for reliable cable assemblies. This component ensures stable electrical conductivity over 10,000 cycles for modular industrial electronics and handheld devices operating within a -30°C to +85°C range.
Key Features
- Multiple Heights: Select from initial heights between 5.5mm and 8.0mm.
- Cable Integration: Solder cup termination enables secure wire connections.
- Current Rating: Supports 3A current for efficient power delivery.
- Stable Contact: Stainless steel spring ensures consistent electrical pressure.
- Standard Layout: Vertical 2-pin configuration with 2.54mm pitch.

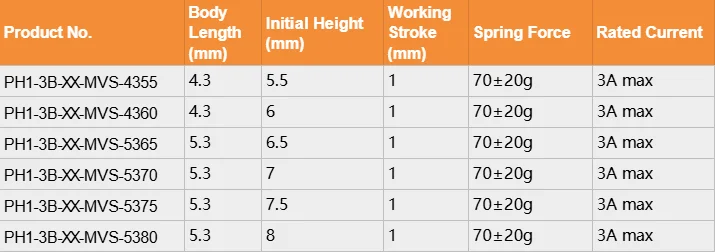

Main Specifications:
General Information:
| Product No.: | PH1-3B-XX-MVS-XXXX | |
| Product Family: | Spring Loaded Connectors | |
| Number of Rows: | Single Row | |
| Pin Configuration: | 2 Pin | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Solder Cup | |
| Termination Method: | Solder | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 70±20gf | |
| Life Test: | 10,000 Cycles |
Electrical:
| Rated Current: | 3A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 100 Mohms min |
Materials and Plating:
| Plunger Material: | Copper Alloy, Gold plated | |
| Barrel Material: | N/A | |
| Spring Material: | Stainless Steel | |
| Insulator Material: | PA46 UL94V-0 | |
| Insulator Color: | Black |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins
Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
