Introduction:
This brass pogo pin connector is a vertical SMT terminal engineered for precise board-to-board interfaces. The series offers multiple height configurations, specifically 9mm, 10mm, and 11mm, to accommodate various vertical spacing requirements within electronic housings. Built with gold-over-nickel plated brass components, it facilitates a 3A current flow at 12VDC while maintaining stable conductivity. A consistent 70g spring force over a 1mm working stroke ensures reliable electrical contact throughout 50,000 compression cycles. This connector acts as a durable signal and power bridge for automated industrial systems and telecommunication devices requiring efficient surface mount integration.
Key Features

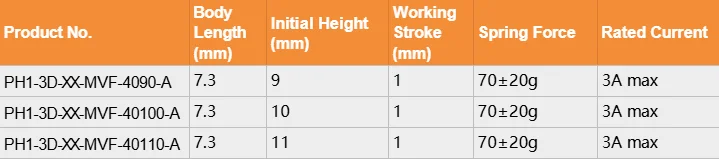

- Height Variety: Select from 9mm, 10mm, or 11mm initial heights.
- SMT Mounting: Surface mount design supports efficient automated PCB assembly.
- 3A Current: Gold-plated brass plunger ensures stable 3A current flow.
- Durable Life: Tested for 50,000 cycles ensuring long mechanical life.
- Stable Force: Consistent 70g force maintained over a 1mm stroke.
Main Specifications:
General Information:
| Product No.: | PH1-3D-XX-MVF-40XXX-A | |
| Product Family: | Spring Loaded Connectors | |
| Number of Rows: | Single Row | |
| Pin Configuration: | 2 Pin | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 70±20gf | |
| Life Test: | 50,000 Cycles |
Electrical:
| Rated Current: | 3A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 50mΩ Max | |
| Insulation Resistance: | 100 Mohms min |
Materials and Plating:
| Plunger Material: | Brass, Gold over Nickel Plated | |
| Barrel Material: | Brass, Gold over Nickel Plated | |
| Spring Material: | SUS Surface treatment | |
| Insulator Material: | Hi-Temp Thermoplastic, UL 94V-0 | |
| Insulator Color: | Black |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins

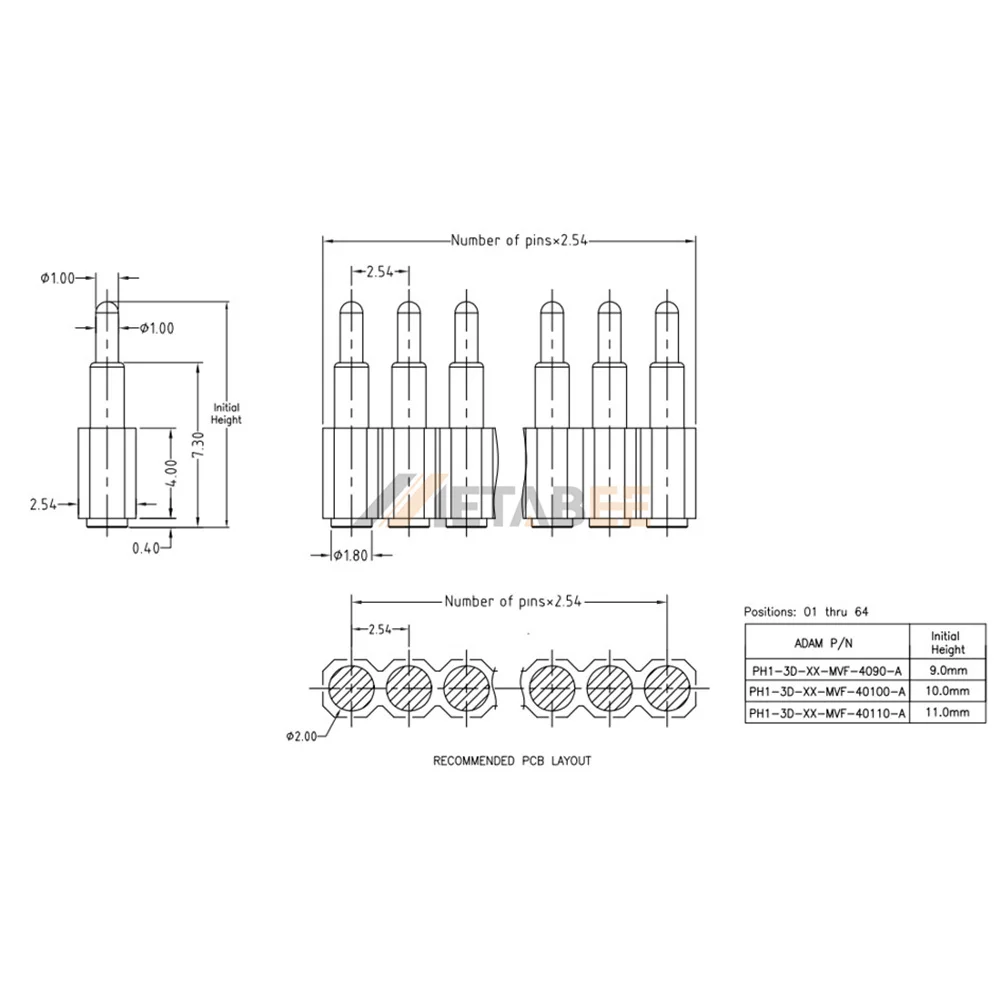

Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
