Introduction:
This solder cup pin pogo connector is a vertical dual-row terminal featuring brass contacts for reliable electrical performance in wire-to-board interfaces. It is distinguished from copper alloy models by its high-quality brass construction, which provides excellent mechanical stability at 12V DC and a 3A current rating. The series offers multiple height configurations from 5.5mm up to 8mm to ensure a precise fit for various housing clearances. Using a PA46 UL94V-0 insulator and stainless steel springs, it maintains consistent contact force throughout a 10,000-cycle lifespan. This connector serves as a durable signal or power bridge in modular handheld devices and industrial electronics where permanent soldered connections are required.
Key Features
- Brass Contacts: Brass contacts ensure reliable and stable electrical conductivity.
- Secure Termination: Solder cup design enables permanent wire-to-board connections.

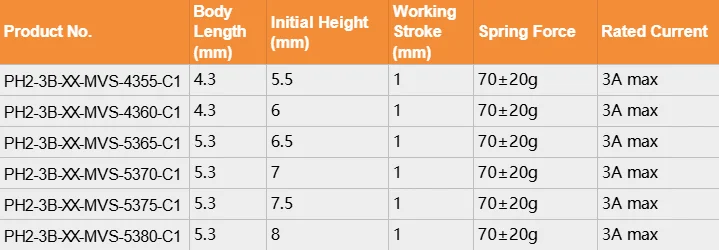

- Modular Heights: Choose initial heights ranging from 5.5mm to 8.0mm.
- Dual Row: Standard 2.54mm pitch dual-row layout optimizes density.
- High Stability: PA46 insulator provides superior thermal and flame resistance.
Main Specifications:
General Information:
| Product No.: | PH2-3B-XX-MVS-XXXX-C1 | |
| Product Family: | Spring Loaded Connectors | |
| Number of Rows: | Dual Row | |
| Pin Configuration: | 2 Pin | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Solder Cup | |
| Termination Method: | Solder | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 70±20gf | |
| Life Test: | 10,000 Cycles |
Electrical:
| Rated Current: | 3A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 50mΩ Max | |
| Insulation Resistance: | 100 Mohms min |
Materials and Plating:
| Contact material: | Brass | |
| Plunger Material: | N/A | |
| Barrel Material: | N/A | |
| Spring Material: | Stainless Steel | |
| Insulator Material: | PA46, UL 94V-0 | |
| Insulator Color: | Black |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins
Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
