Introduction:

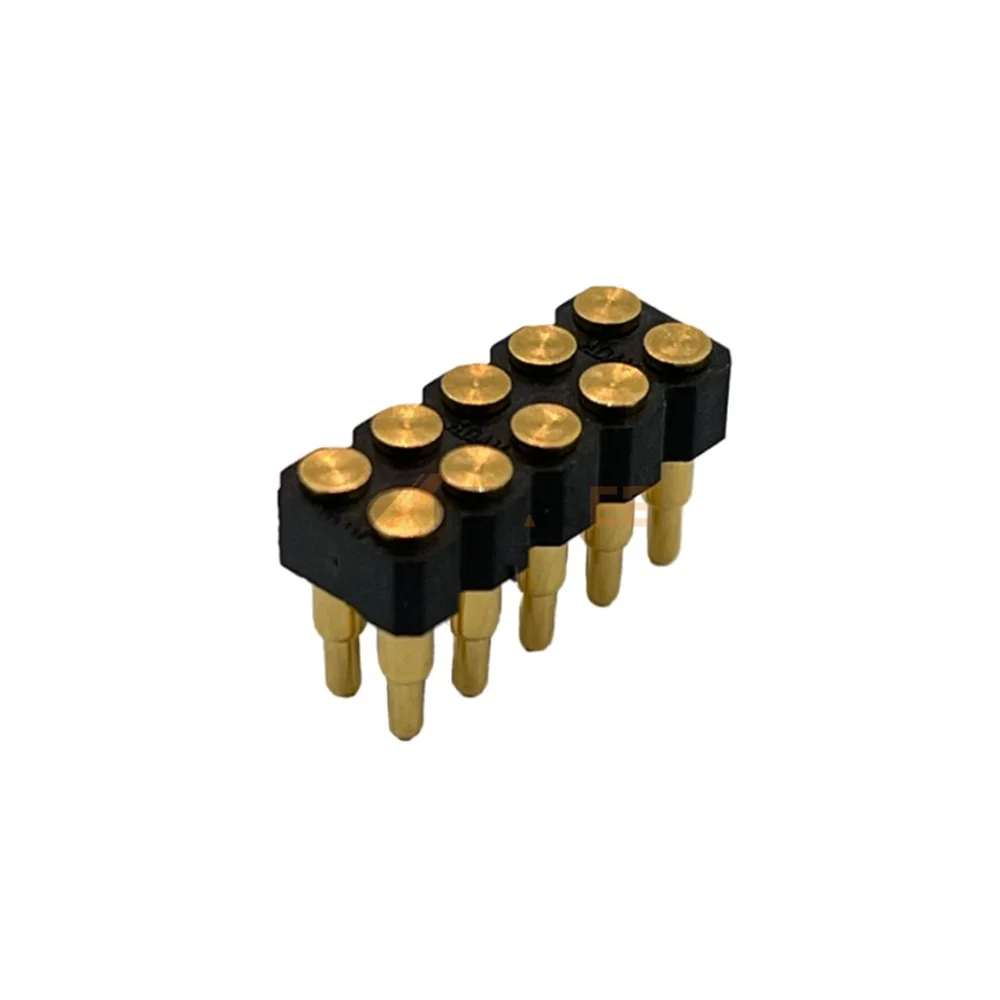

This 10pin pogo connector is a vertical surface mount header designed for high-density board-to-board connections. It features a dual row layout on a 2.54mm pitch, enabling efficient signal transmission within a small footprint. The series offers various initial heights ranging from 4.5mm to 8.0mm to accommodate specific mechanical clearance gaps. Depending on the part number, it supports a current rating of 1A or 3A at 12V DC. Stainless steel springs provide consistent contact force throughout a 10,000-cycle lifespan. This connector acts as a reliable interface for power and data in modular handheld devices and industrial electronics.
Key Features
- High Density: Dual row 10 pin layout optimizes PCB space.
- Height Selection: Initial heights range from 4.5mm to 8.0mm.
- SMT Mounting: Surface mount orientation enables automated pick-and-place assembly.
- Current Options: Supports 1A or 3A ratings for varied loads.
- Durable Contact: 10,000 cycles ensures reliable electrical signal delivery.
Main Specifications:
General Information:

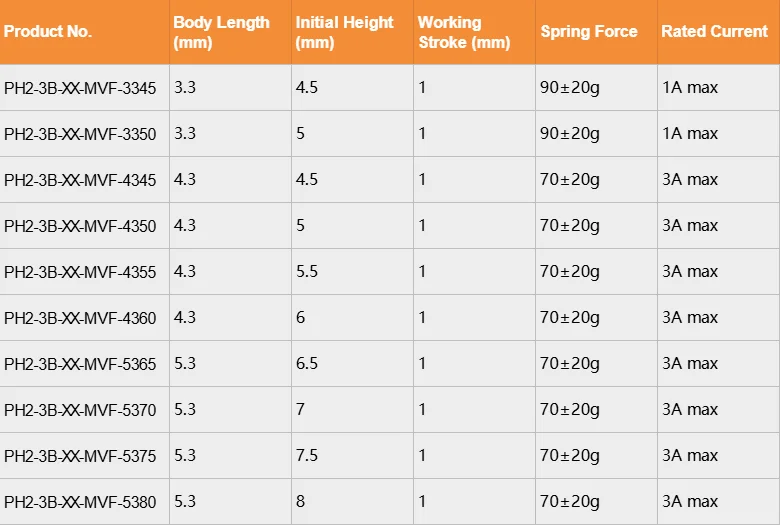

| Product No.: | PH2-3B-XX-MVF-XXXX | |
| Product Family: | Spring Loaded Connectors | |
| Number of Rows: | Dual Row | |
| Pin Configuration: | 10 Pin | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 70±20gf / 90±20gf | |
| Life Test: | 10,000 Cycles |
Electrical:
| Rated Current: | 1A Max / 3A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 100 Mohms min |
Materials and Plating:
| Plunger Material: | N/A | |
| Barrel Material: | N/A | |
| Spring Material: | Stainless Steel | |
| Insulator Material: | PA46, UL 94V-0 | |
| Insulator Color: | Black |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins
Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
