Introduction:
This pogo pin wire connector features a dual-row 2-pin configuration with a standard 2.54 mm pitch for secure wire-to-board interfaces. It utilizes a Solder Cup termination that provides a permanent mechanical bond for external wiring. The series offers several initial height options ranging from 5.5mm to 8.0mm to meet specific mechanical clearance needs. Supporting a 3A current rating at 12V DC, it maintains stable conductivity over a 10,000-cycle mechanical life. This component serves as a reliable signal or power link in modular industrial electronics where cable-attached spring-loaded contacts are required.
Key Features
- Secure Termination: Solder cup termination ensures secure permanent wire connections.

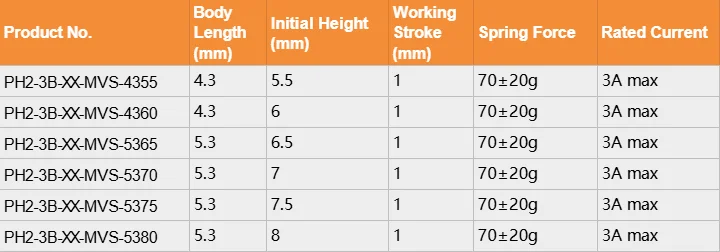

- Modular Heights: Multiple initial height options from 5.5mm to 8.0mm.
- High Rating: Supports 3A high current for efficient power delivery.
- Standard Layout: Dual row 2-pin configuration with 2.54mm pitch.
- Durable Spring: Stainless steel spring maintains force over 10,000 cycles.
Main Specifications:
General Information:
| Product No.: | PH2-3B-XX-MVS-XXXX | |
| Product Family: | Spring Loaded Connectors | |
| Number of Rows: | Dual Row | |
| Pin Configuration: | 2 Pin | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Solder Cup | |
| Termination Method: | Solder | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 70±20gf | |
| Life Test: | 10,000 Cycles |
Electrical:
| Rated Current: | 3A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 50mΩ Max | |
| Insulation Resistance: | 100 Mohms min |
Materials and Plating:
| Plunger Material: | N/A | |
| Barrel Material: | Copper Alloy | |
| Spring Material: | SUS304 | |
| Insulator Material: | PA46, UL 94V-0 | |
| Insulator Color: | Black |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins
Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
