Introduction:

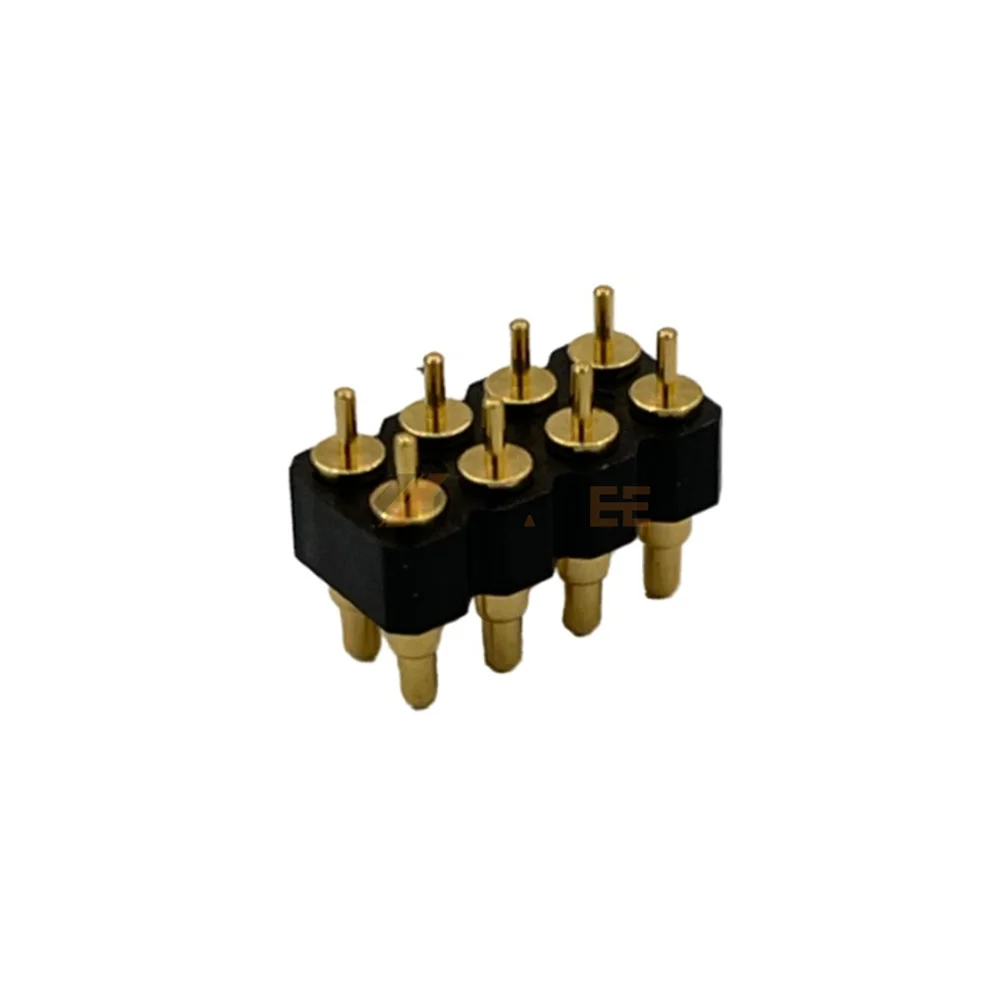

This spring loaded pcb connector is a vertical 8-pin dual-row header designed for secure through-hole integration on a 2.54mm pitch. The series provides versatile height options ranging from 4.5mm to 8.0mm to meet various mechanical clearance requirements between circuit boards. It facilitates stable 12V DC power or signal transmission with maximum current ratings of 1A or 3A depending on the specific model selected. Copper Alloy plungers and SUS304 barrels ensure reliable electrical contact over a 10,000-cycle mechanical life. This connector acts as a robust interface for modular industrial electronics and portable devices requiring strong board retention.
Key Features
- Dual Row Layout: 8 pin dual row design optimizes PCB density.
- Multiple Heights: Initial heights available from 4.5mm to 8.0mm.
- Current Options: Supports 1A or 3A ratings for varied needs.
- Secure Mounting: Through hole DIP design ensures strong board retention.
- Stable Contact: Copper Alloy plunger maintains reliable conductivity for signals.
Main Specifications:
General Information:

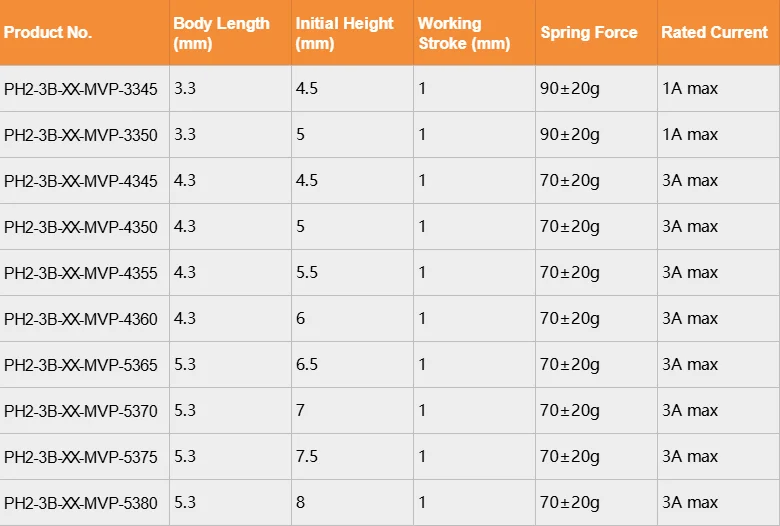

| Product No.: | PH2-3B-XX-MVP-XXXX | |
| Product Family: | Spring Loaded Connectors | |
| Number of Rows: | Dual Row | |
| Pin Configuration: | 8 Pin | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 70±20gf / 90±20gf | |
| Life Test: | 10,000 Cycles |
Electrical:
| Rated Current: | 1A Max / 3A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 100 Mohms min |
Materials and Plating:
| Plunger Material: | N/A | |
| Barrel Material: | Copper Alloy | |
| Spring Material: | SUS304 | |
| Insulator Material: | PA46, UL 94V-0 | |
| Insulator Color: | Black |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins
Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
