Introduction:
This 20-pin SFP female receptacle mounts directly onto the host PCB to provide the internal electrical interface for standard transceivers. It operates inside external SFC series shielding cages, which supply mechanical alignment and EMI shielding around the port. Copper alloy contact terminals feature 15u” gold plating to prevent surface fretting corrosion and maintain low contact resistance over repeated mating cycles. The housing is molded from high-temperature UL 94V-0 thermoplastic, maintaining dimensional stability during automated SMT reflow soldering. SMT solder tails ensure coplanarity and reliable solder fillet inspection on host boards. This receptacle is suitable for optical transceiver host boards, Ethernet switches, and enterprise routers.
Key Features
-
15u” Gold Plating: Prevents fretting corrosion and ensures low contact resistance.
-
SMT Solder Tails: Maintains strict coplanarity for reliable reflow soldering.
-
Standard SFF-20 Interface: Pairs with SFC series shielding cages for full enclosure.
-
Copper Alloy Terminals: Delivers high conductivity and mechanical spring endurance.
-
UL 94V-0 Thermoplastic: Resists high reflow temperatures without thermal warping.
Main Specifications:
General Information:
| Product No.: | SFF-20-SG-15 | |
| Product Type: | SFP Connectors & Receptacles | |
| Pluggable Form Factor: | SFP | |
| Port Configuration: | 1 Port (20-Pin) | |
| PCB Mounting Style: | SMT | |
| Included Lightpipe : | None | |
| Included Heat Sink: | None | |
| Packaging Method: | Tray | |
| Mating Components: | SFC-1 / SFC-2 / SFC-4 / SFC-6 | |
| EMI Shielding Type: | N/A (Shielded by Cage) |
Materials and Plating:
| EMI Shielding Material: | N/A | |
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Connector Insert Material: | N/A | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | 15u” Gold over Nickel underplate |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |

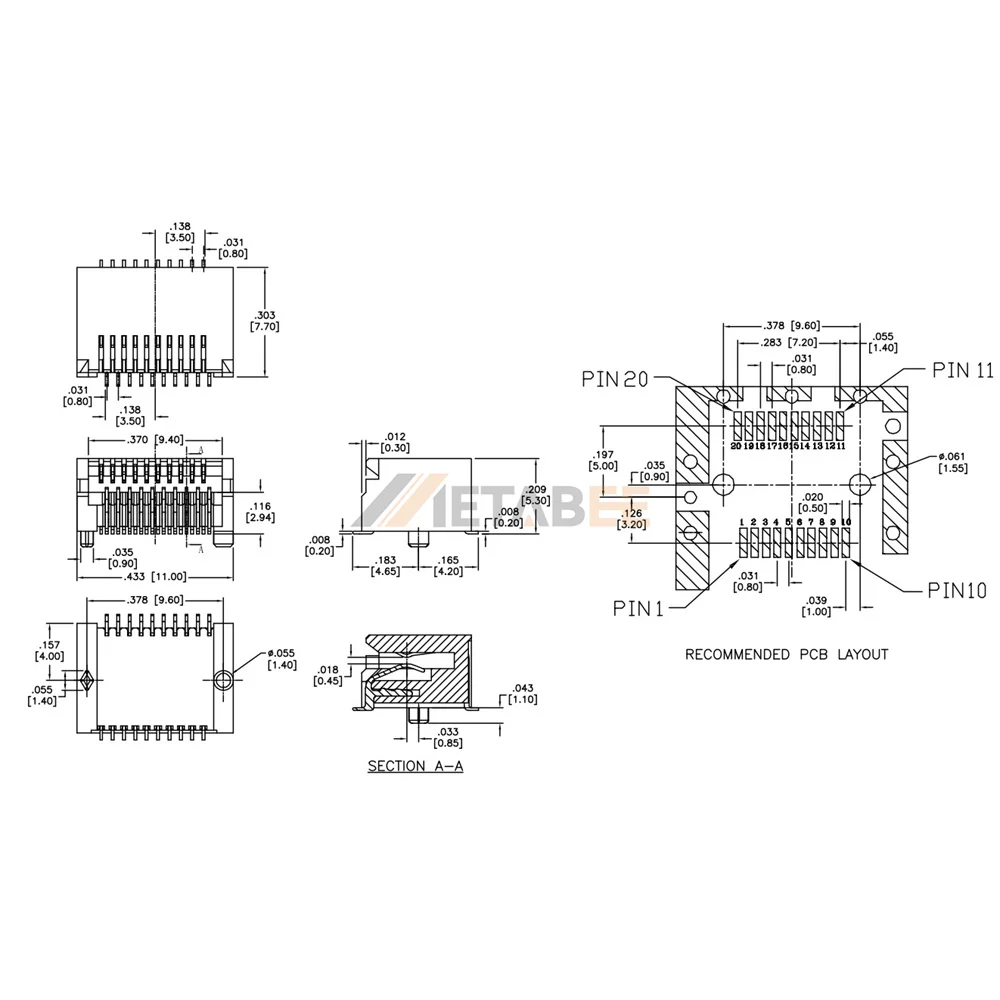

Single Row Cage Part Number Configuration
Applications:
- Switch
- Router
- Server & Storage
- Fibre Channel and Gigabit Ethernet
- Networking & Telecommunication
