Introduction:
This 20-pin SMT SFP module port connector mounts directly onto host PCBs to interface with standard transceivers. It operates inside SFC series shielding cages, which provide mechanical guidance and external port shielding. Integrated metal grounding hold-down tabs anchor to the PCB, enhancing structural retention and establishing a direct chassis ground path. The phosphor bronze contact terminals feature 15u” gold plating over nickel to prevent oxidation and sustain low contact resistance. High-temperature UL 94V-0 thermoplastic houses the contacts and withstands automated reflow soldering without distortion. Delivered in tape-and-reel packaging, this connector supports high-speed pick-and-place manufacturing. Operating from -40°C to +85°C, it suits Ethernet switches, optical transceivers, and enterprise routers.
Key Features
-
Metal Grounding Hold-Down: Enhances PCB retention and creates direct chassis grounding.
-
15u” Gold over Nickel: Prevents contact oxidation and preserves signal integrity.
-
Tape & Reel Packaging: Optimizes automated high-speed pick-and-place assembly.
-
Phosphor Bronze Terminals: Delivers durable spring contact over repeated matings.
-
UL 94V-0 Housing: Resists high reflow temperatures without thermal warping.

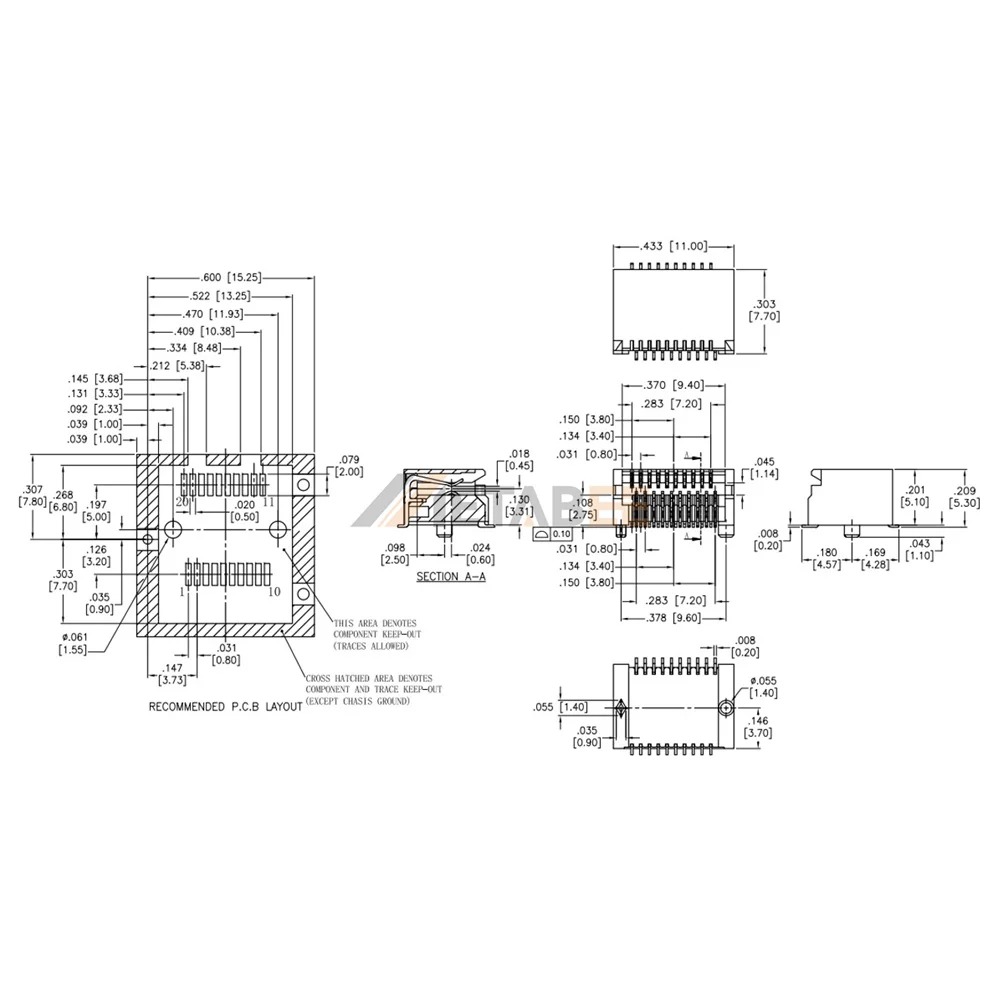

Main Specifications:
General Information:
| Product No.: | SFF-20-SGM-C-15-TR | |
| Product Type: | SFP Connectors & Receptacles | |
| Pluggable Form Factor: | SFP | |
| Port Configuration: | 1 Port (20-Pin) | |
| PCB Mounting Style: | SMT | |
| Included Lightpipe : | None | |
| Included Heat Sink: | None | |
| Packaging Method: | Tray | |
| Mating Components: | SFC-1 / SFC-2 / SFC-4 / SFC-6 | |
| EMI Shielding Type: | N/A (Shielded by Cage) |
Materials and Plating:
| EMI Shielding Material: | N/A | |
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Connector Insert Material: | N/A | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | 15u” Gold over Nickel underplate |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
Single Row Cage Part Number Configuration
Applications:
- Switch
- Router
- Server & Storage
- Fibre Channel and Gigabit Ethernet
- Networking & Telecommunication
