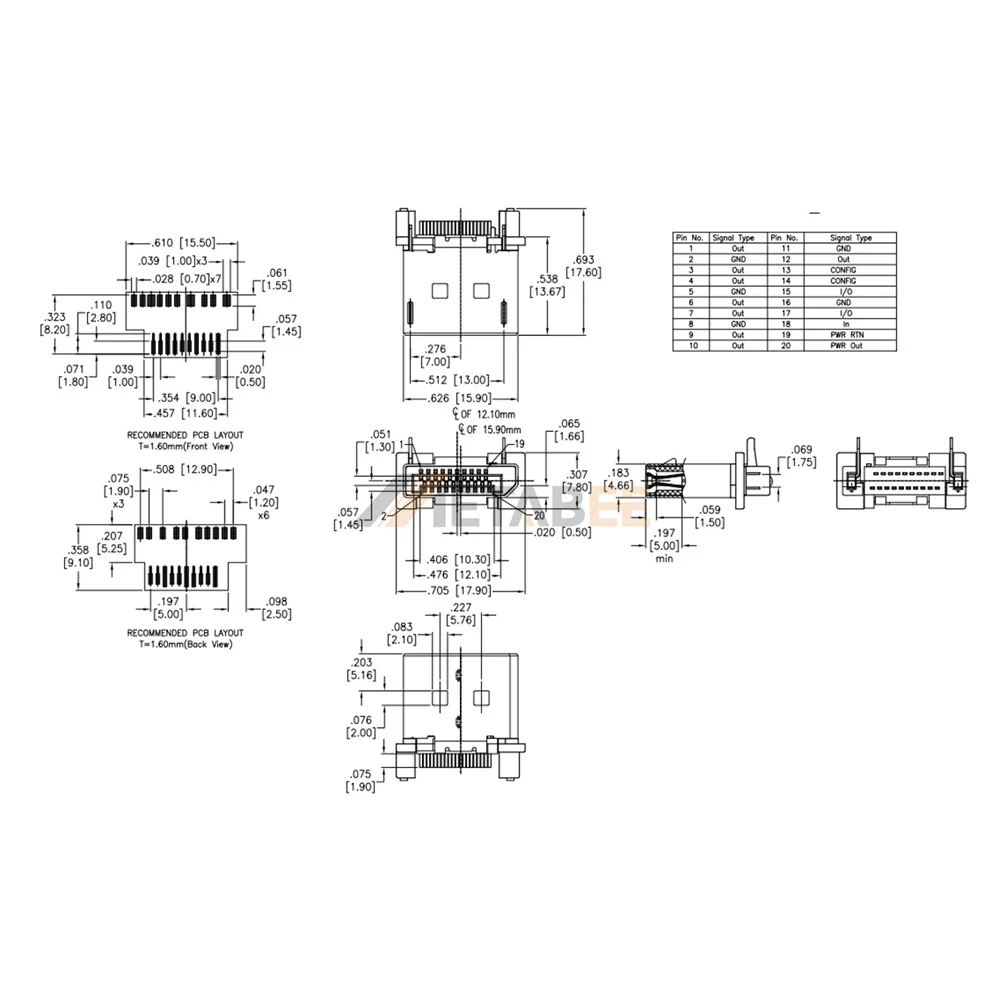

20 Pin Male DisplayPort Plug Connector, SMT, Right Angle, Mechanical Latch
Introduction:
This 20-pin male DisplayPort plug connector features a right-angle, surface-mount configuration for horizontal PCB mounting. It incorporates a positive mechanical latch mechanism to ensure secure retention and prevent accidental disconnections caused by vibration. The outer shell uses nickel-plated brass with an M2 profile to deliver physical protection and electromagnetic shielding. Constructed with UL 94V-0 high-temperature thermoplastic, it operates stably across temperatures from -20°C to +85°C. Phosphor bronze contacts with gold flash over nickel underplate keep contact resistance below 30 mohms at 40 VAC. This plug suits compact video converter dongles, test fixtures, modular display cables, and industrial interconnect boards.
Key Features
- Mechanical Latch: Locks mated interfaces firmly against accidental pull-out.
- M2 Nickel-Plated Shell: Provides physical durability and EMI shielding protection.
- Phosphor Bronze Contacts: Maintains low resistance below 30 mohms consistently.
- Right-Angle Surface Mount: Saves vertical board space in slim enclosures.
Main Specifications:
General Information:
| Product No.: | DPC-M-SD-M2-L | |
| Product Type: | DisplayPort | |
| Gender: | Plug | |
| Number of Positions: | 20 Position | |
| Mounting Orientation: | Right Angle | |
| Termination Style: | Surface Mount | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | None | |
| Locking Mechanism: | With Latch | |
| Shell Design: | M2 Shell | |
| Packaging Method: | Tray |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Shell Material: | Brass, Nickel plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold flash over Nickel underplate |
Environmental:
| Operating Temperature: | -20°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
