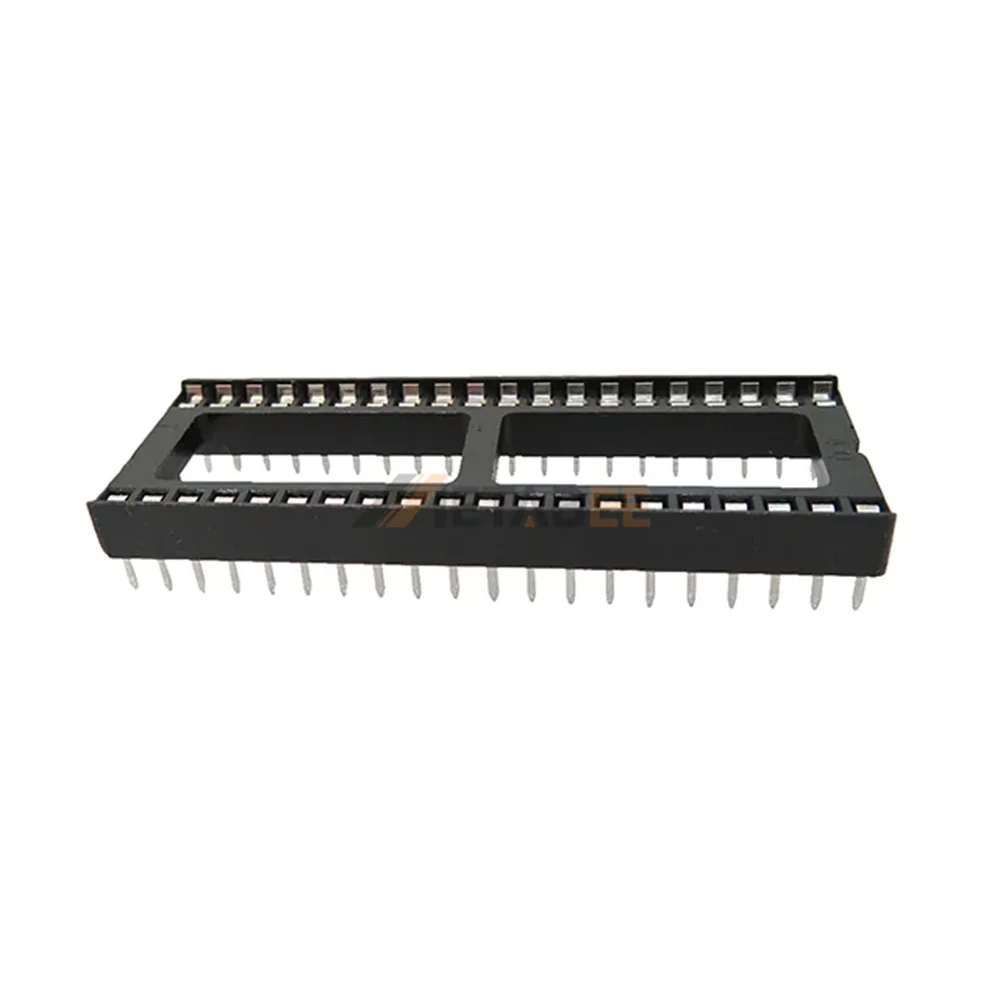

This dual in line 40 pin DIP socket serves as an expanded mounting platform for large integrated circuits. It utilizes stamped contacts with a Tin-over-Nickel finish to ensure reliable electrical mating and low resistance. The THT solder tails ensure a strong mechanical bond to the PCB. Its durable glass-filled PBT housing survives intense wave soldering heat without warping. Featuring a standard 2.54mm pitch and 15.24mm row spacing, this socket fits wide-body packages perfectly. Engineers utilize this modular carrier to facilitate easy chip updates and repairs in complex systems. This solution also protects sensitive silicon from thermal stress during the initial manufacturing process.
Key Features
- Wide Row Spacing: Fits standard 15.24mm (0.600 inch) wide-body ICs.
- Stamped Contacts: Ensures reliable electrical mating and signal integrity.
- UL 94V-0 PBT: Delivers high flame resistance and thermal stability.
- THT Termination: Provides stable mechanical anchoring to the board.
Main Specifications:
General Information:
| Product No.: | ICS-640-T | |
| Product Type: | DIP Sockets | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 40 | |
| Contact Type: | Dual-Wipe Stamped | |
| Mounting Type: | Through Hole | |
| Pitch – Mating: | 0.100″ (2.54mm) | |
| Row Spacing: | 0.600″ (15.24mm) |
Materials and Plating:
| Insulator Material: | PBT, glass reinforced, rated UL 94V-0 | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Tin over Nickel underplate overall |
Electrical:
| Current rating: | 1 Amp max | |
| Operating voltage: | 250 VAC max | |
| Contact resistance: | 20 mohms max | |
| Insulation resistance: | 5000 Mohms min @ 500 VDC | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Environmental：
| Operating Temperature: | -55°C to +105°C | |
| Compliance: | Lead Free & RoHS Compliant |
DIP IC Socket Structure
Applications:
- Swappable Audio Op-Amps
- BIOS & Firmware Socketing
- IC Programming & Testing Fixtures
- Hardware R&D & Prototyping
- On-Site Industrial Maintenance
