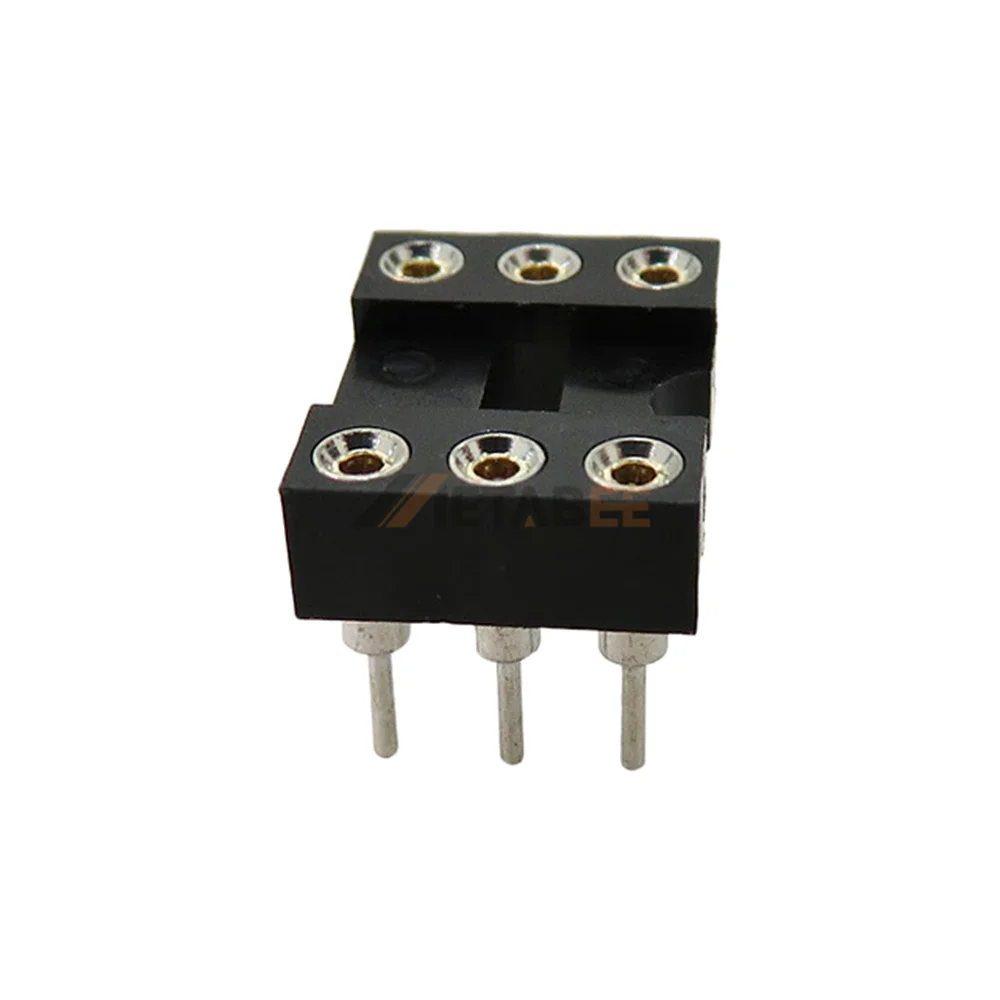

This is a 6 pin dual-row machined IC socket used for mounting standard DIP components on networking boards. It features a two-piece screw-machined contact with a 4-finger Beryllium Copper inner clip to ensure maximum electrical reliability. The insulator is made of high-temperature PPS to survive industrial soldering processes without any warping. With a 3A current rating and high vibration resistance, the unit provides stable signal integrity in demanding environments. Technicians utilize this precision interface in medical hardware and critical industrial controllers to allow for easy chip maintenance while protecting sensitive silicon.
Key Features
- Machined Pin Design: Ensures gas-tight mating with 4-finger Beryllium Copper clips.
- High-Temp PPS Housing: Withstands extreme industrial soldering temperatures without deformation.
- 3A Current Capacity: Supports high power delivery for specialized integrated circuits.
- Standard DIP Spacing: Matches .300″ row spacing for secure board integration.
Main Specifications:
General Information:
| Product No.: | ICM-306-1-GT-HT | |
| Product Type: | DIP IC Sockets | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 6 | |
| Contact Type: | Screw-Machined | |
| Mounting Type: | Through Hole | |
| Pitch – Mating: | 0.100″ (2.54mm) | |
| Row Spacing: | .300″ (7.62mm) | |
| Tail Length: | 0.110″ (2.78mm) |
Materials and Plating:
| Insulator Material: | Polyphenylene Sulfide (PPS) | |
| Insulator Color: | Black | |
| Inner Clip Material: | Beryllium Copper (4-Finger) | |
| Inner Clip Plating: | Gold flash over Nickel | |
| Outer Sleeve Material: | Brass | |
| Outer Sleeve Plating: | Tin over Nickel |
Electrical:
| Current rating: | 3 Amp max | |
| Operating voltage: | 60 VAC/DC | |
| Contact resistance: | ≤ 4mΩ | |
| Insulation resistance: | ≧ 1,000MΩ at 100 V | |
| Mechanical life: | 200 Cycle min |
Environmental：
| Operating Temperature: | -40°C to +105°C | |
| Compliance: | Lead Free & RoHS Compliant |
ICM-3XX Series Dimensions & Part Number Selection Table
Applications:
- Swappable Audio Op-Amps
- BIOS & Firmware Socketing
- IC Programming & Testing Fixtures
- Hardware R&D & Prototyping
- On-Site Industrial Maintenance
