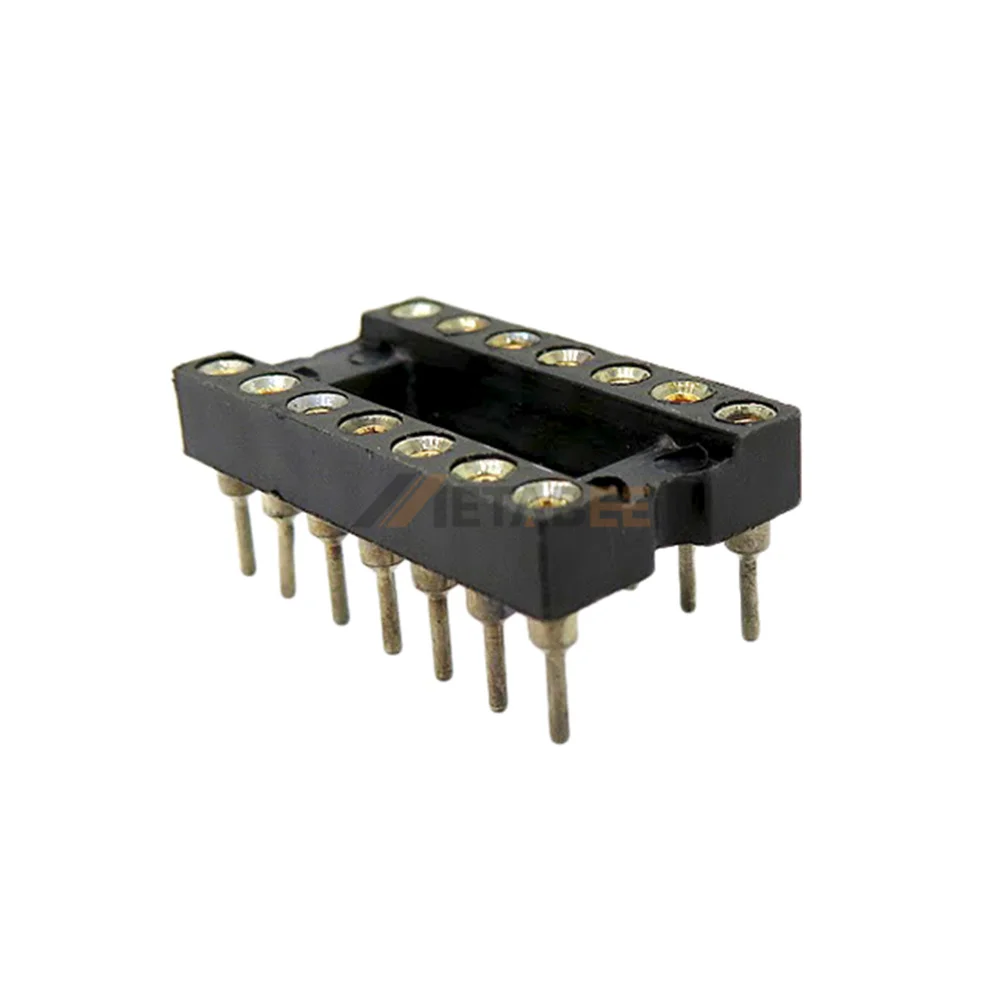

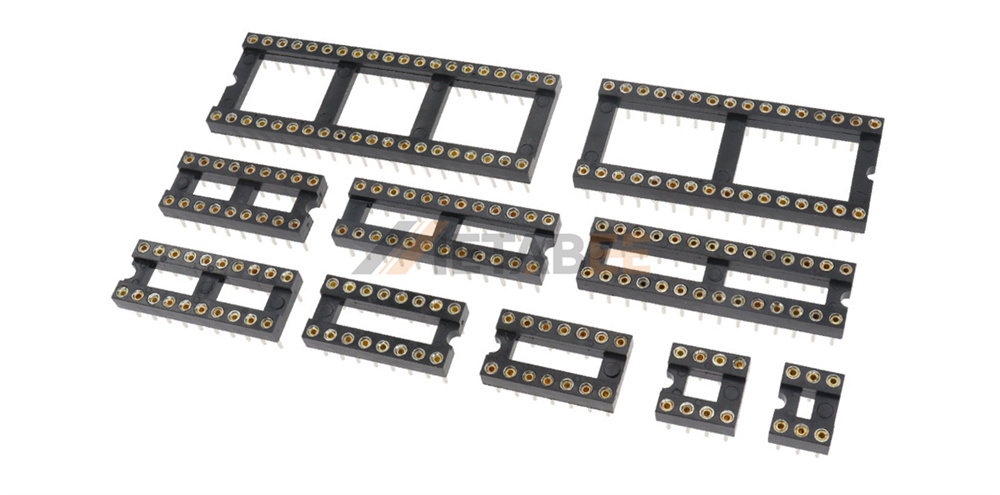

This 14 pin machined pin IC socket serves as a high-precision interconnect solution for dual-row integrated circuits. It utilizes screw-machined sleeves and four-finger Beryllium Copper clips to ensure exceptional electrical contact and vibration resistance. The black PPS housing provides superior thermal stability, allowing the socket to withstand harsh industrial soldering environments without warping. The 3A current rating helps engineering teams handle higher power loads more effectively than standard stamped components. Technicians utilize this modular interface to simplify chip diagnostics and updates in critical medical or networking systems. This design effectively guards sensitive circuitry against mechanical stress and heat damage.
Key Features
-
Machined Contacts: Features four-finger Beryllium Copper clips for stability.
-
PPS Housing: Withstands extreme industrial soldering temperatures without deformation.
-
3A Current Rating: Supports high-power delivery for specialized integrated circuits.
-
Standard Spacing: Matches .300″ row spacing for secure board integration.
Main Specifications:
General Information:
| Product No.: | ICM-314-1-GT-HT | |
| Product Type: | DIP IC Sockets | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 14 | |
| Contact Type: | Screw-Machined | |
| Mounting Type: | Through Hole | |
| Pitch – Mating: | 0.100″ (2.54mm) | |
| Row Spacing: | .300″ (7.62mm) | |
| Tail Length: | 0.110″ (2.78mm) |
Materials and Plating:
| Insulator Material: | Polyphenylene Sulfide (PPS) | |
| Insulator Color: | Black | |
| Inner Clip Material: | Beryllium Copper (4-Finger) | |
| Inner Clip Plating: | Gold flash over Nickel | |
| Outer Sleeve Material: | Brass | |
| Outer Sleeve Plating: | Tin over Nickel |
Electrical:
| Current rating: | 3 Amp max | |
| Operating voltage: | 60 VAC/DC | |
| Contact resistance: | ≤ 4mΩ | |
| Insulation resistance: | ≧ 1,000MΩ at 100 V | |
| Mechanical life: | 200 Cycle min |
Environmental：
| Operating Temperature: | -40°C to +105°C | |
| Compliance: | Lead Free & RoHS Compliant |

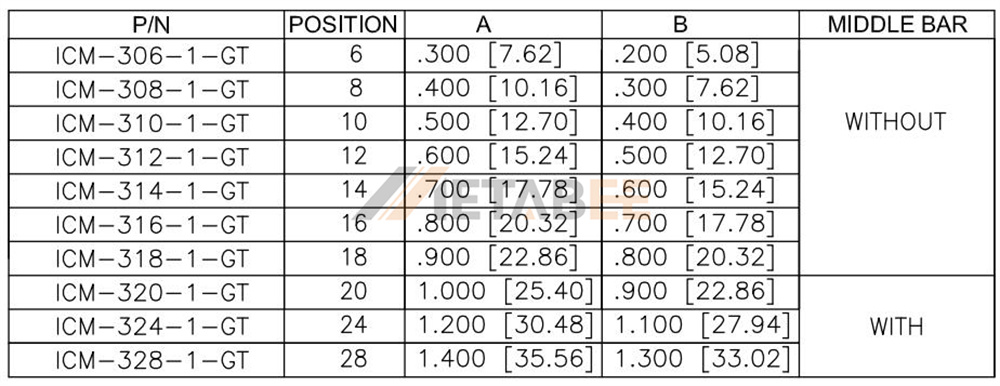

ICM-3XX Series Dimensions & Part Number Selection Table
Applications:
- Swappable Audio Op-Amps
- BIOS & Firmware Socketing
- IC Programming & Testing Fixtures
- Hardware R&D & Prototyping
- On-Site Industrial Maintenance
